RDM Parts L-blade fitting for Claas 104.903.0

104.903.0 y blades for claas machines

Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with 104.903.0 from claas in the form of 808-63-FEI-03.

Mounting 808-63-FEI-03 y blades

Y blades are mounted on shackles on the flail mower. The 104.903.0 y blades and our alternative 808-63-FEI-03 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.

The difference between y-blades and flails

An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.

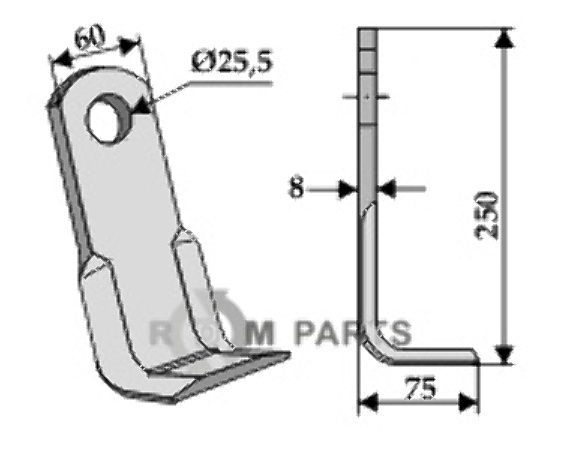

Specifications of the 104.903.0 and the 808-63-FEI-03

The length of the L-blade fitting for Claas 104.903.0 with RDM number 808-63-FEI-03 is equal to the length of the original part. The length of the part is 250 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-63-FEI-03 are equal in width. The parts is equal in width, 60 millimeter to be exact. The thickness of L-blade fitting for Claas 104.903.0 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The 104.903.0 from claas has a thickness of 8 millimeter. So the part from RDM Parts with number 808-63-FEI-03 as an alternative for the machine.

On what machines does the 808-63-FEI-03 fit?

the 808-63-FEI-03 and 104.903.0 fit on claas machinery. The 808-63-FEI-03 is fitting for these parts: Claas 104.903.0, and Ferri 0901005.
