Blade, right model fitting for Tortella 2985600

2985600 blades for the tortella machine

2985600 tiller blades fit on the rotary tillers of tortella. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-TOR-05R, which is comparable with the original.

Mounting the blades

The 2985600 and our fitting alternative 808-TOR-05R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-TOR-05R is pretty much the same as the original and is placed on the right side. Blades are placed in this alternating manner to optimally plough through the soil.

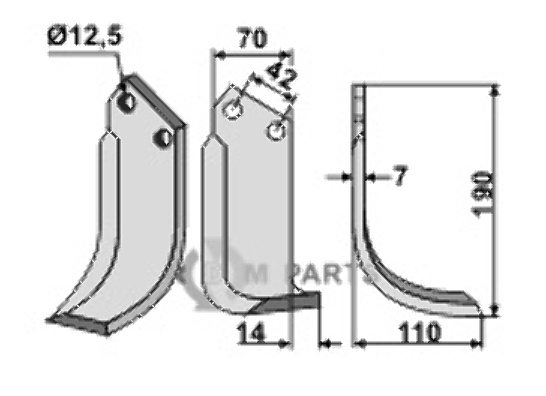

Specifications of the 2985600 and the 808-TOR-05R

The Blade, right model fitting for Tortella 2985600 from tortella is just as long as the 808-TOR-05R from RDM Parts. With its 190 millimeter it is a good alternative to the original. The width of the 808-TOR-05R is equal to the original. This Blade, right model fitting for Tortella 2985600 is 70 millimeter in width. The thickness of the Blade, right model fitting for Tortella 2985600 is important for the way the part fits on the machine. 7 millimeter thick is the Blade, right model fitting for Tortella 2985600 from tortella with the original part number 2985600. Since this is equal to the parts of RDM Parts, the 808-TOR-05R fits as an alternative for the original. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Tortella 2985600. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, right model fitting for Tortella 2985600 808-TOR-05R is 42 millimeter. The mounting holes of the 808-TOR-05R have a diameter of 12,5 millimeter. These holes are used to mount the Blade, right model fitting for Tortella 2985600 to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-TOR-05R fit?

the 808-TOR-05R and 2985600 fit on tortella machinery. The 808-TOR-05R is fitting for these parts: Mulag 174491, and Tortella 2985600.
