Blade, left model fitting for Maschio / Gaspardo 73100405

Product information "Blade, left model fitting for Maschio / Gaspardo 73100405"

73100405 blades for the maschio gaspardo machine

maschio gaspardo tillers use 73100405 tiller blades. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-MAS-52L.

Mounting the blades

The 73100405 and our fitting alternative 808-MAS-52L are secured in place with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-MAS-52L is pretty much the same as the original and is placed on the left side. The tiller blades are mounted in an alternating way.

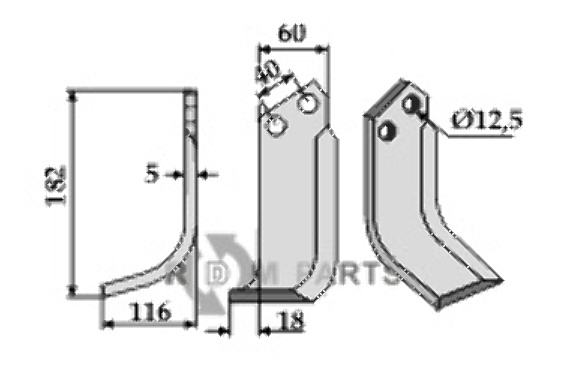

Specifications of the 73100405 and the 808-MAS-52L

RDM Parts also has the 808-MAS-52L Blade, left model fitting for Maschio / Gaspardo 73100405 with an equal length as the original. The length of the part is 182 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-MAS-52L are equal in width. This Blade, left model fitting for Maschio / Gaspardo 73100405 is 60 millimeter in width. The thickness of Blade, left model fitting for Maschio / Gaspardo 73100405 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The original Blade, left model fitting for Maschio / Gaspardo 73100405 from maschio gaspardo is 5 millimeter thick. The alternative that is offered by RDM Parts with number 808-MAS-52L has an equal thickness and is thus a suitable alternative for the original. The hole spacing of Blade, left model fitting for Maschio / Gaspardo 73100405 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, left model fitting for Maschio / Gaspardo 73100405 808-MAS-52L is 40 millimeter. The 808-MAS-52L and the original with are mounted with a mounting hole of 12,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-MAS-52L fit?

Like the original with number 73100405, the 808-MAS-52L Blade, left model fitting for Maschio / Gaspardo 73100405 fits on the machines of maschio gaspardo. The 808-MAS-52L is fitting for these parts: Strom KM060126, and Maschio / Gaspardo 73100405.

.
Show more Show less

Properties

Product number: 808-MAS-52L
Manufacturer Industriehof
Replaces original
Strom: KM060126
Maschio / Gaspardo: 73100405
Technical details
Suitable for brand: Maschio Gaspardo
Product type: Milling Knife
Bolt hole diameter: 12.5 mm
Boring: 12.5 mm
Hole spacing: 40 mm
Material Tickness: 5 mm
Mounting: Left
Thickness: 5 mm
Wideness: 60 mm
Working widt: 116 mm
