Blade, right model fitting for Maschio / Gaspardo M09400418

M09400418 blades for the maschio gaspardo machine

The M09400418 is a blade for a rotary tiller from maschio gaspardo. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-MAS-15IR, which is comparable with the original.

Mounting the blades

Tiller blades are fastened with a bolt. The rotating direction of the blade should be noticed when attaching them. This part is placed on the right side. Blades are placed in this alternating manner to optimally plough through the soil.

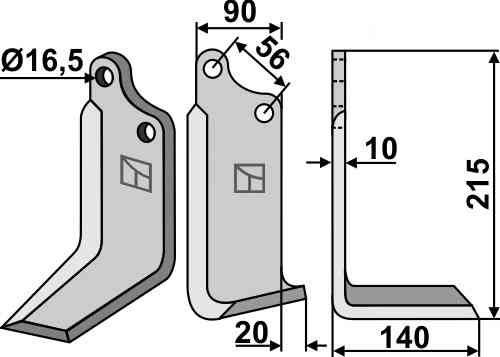

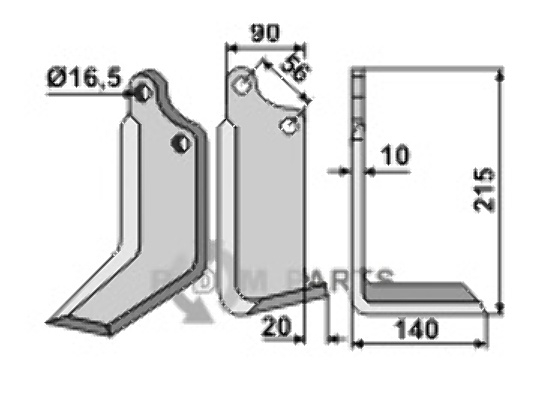

Specifications of the M09400418 and the 808-MAS-15IR

RDM Parts also has the 808-MAS-15IR Blade, right model fitting for Maschio / Gaspardo M09400418 with an equal length as the original. The product is thus 215 millimeter long and is a fitting replacement for your machinery. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The width measures 90 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The M09400418 from maschio gaspardo has a thickness of 10 millimeter. The alternative that is offered by RDM Parts with number 808-MAS-15IR has an equal thickness and is thus a suitable alternative for the original. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Maschio / Gaspardo M09400418. With these mounting holes the part can be attached to the machine from maschio gaspardo. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, right model fitting for Maschio / Gaspardo M09400418 808-MAS-15IR is 56 millimeter. The 808-MAS-15IR and the original with are mounted with a mounting hole of 16,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-MAS-15IR fit?

the 808-MAS-15IR and M09400418 fit on maschio gaspardo machinery. Use the 808-MAS-15IR as a fitting replacement for: Brouchard TR0004BF6, and Maschio / Gaspardo M09400418.
