Blade, right model fitting for Breviglieri 20302D

20302D blades for the breviglieri machine

breviglieri tiller blades 20302D fit on the machines of the same brand. If you need an alternative, then you can use the 808-HOW-03R, which is a fitting solution for your tiller.

Mounting the blades

Tiller blades are fastened with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-HOW-03R should therefore be placed on the right side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the 20302D and the 808-HOW-03R

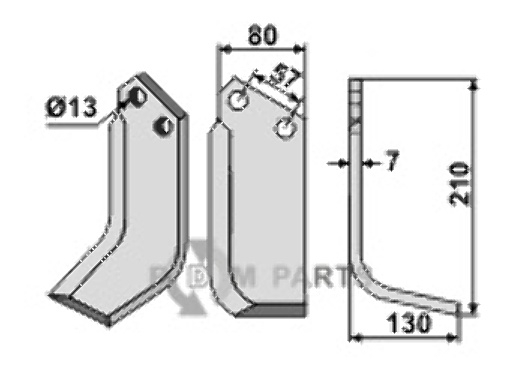

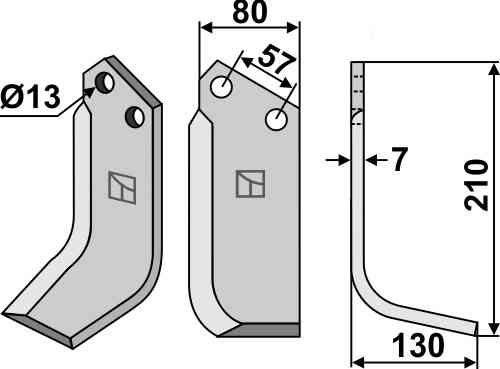

The Blade, right model fitting for Breviglieri 20302D from breviglieri is just as long as the 808-HOW-03R from RDM Parts. With its 210 millimeter it is a good alternative to the original. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. This Blade, right model fitting for Breviglieri 20302D is 80 millimeter in width. The thickness of Blade, right model fitting for Breviglieri 20302D indicates something about the wear and tear of a part, but also if this will fit on your machinery. The 20302D from breviglieri has a thickness of 7 millimeter. Since this is equal to the parts of RDM Parts, the 808-HOW-03R fits as an alternative for the original. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Breviglieri 20302D. These mounting holes ensure a strong connection of the part to the breviglieri machinery. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, right model fitting for Breviglieri 20302D 808-HOW-03R is 57 millimeter. This 808-HOW-03R Blade, right model fitting for Breviglieri 20302D has a mounting hole of 13 millimeter. These holes are used to mount the Blade, right model fitting for Breviglieri 20302D to the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-HOW-03R fit?

the 808-HOW-03R and 20302D fit on breviglieri machinery. Use the 808-HOW-03R as a fitting replacement for: Tortella 2985600, Breviglieri 20302D, and Howard 9949(9931).
