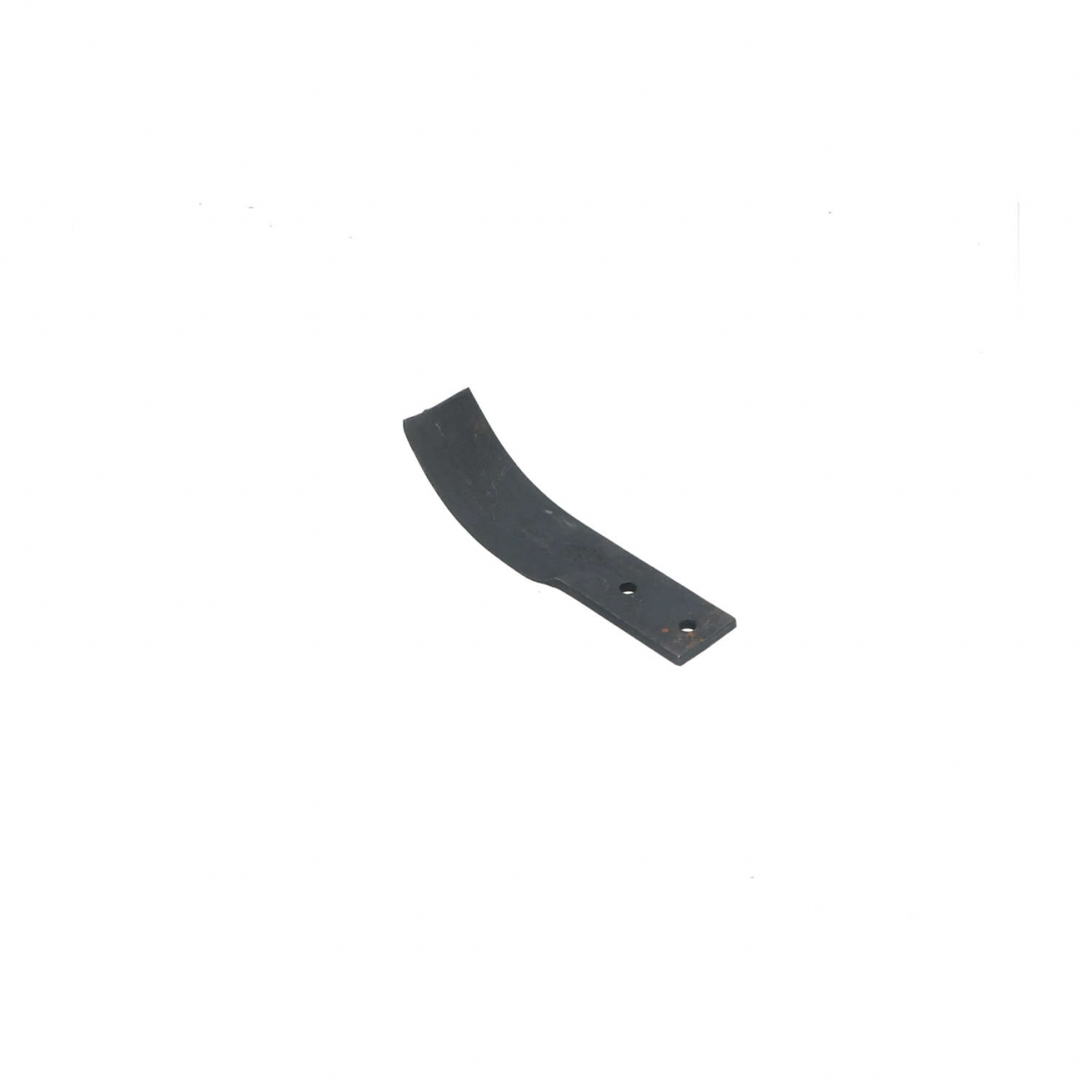

Blade, left model fitting for Holder 2832440110

Product information "Blade, left model fitting for Holder 2832440110"

2832440110 blades for the holder machine

2832440110 tiller blades fit on the rotary tillers of holder. If you need an alternative, then you can use the 808-HOL-05L, which is a fitting solution for your tiller.

Mounting the blades

Tiller blades are fastened with a bolt. The rotating direction of the blade should be noticed when attaching them. This part is placed on the left side. Blades are placed in this alternating manner to optimally plough through the soil.

Specifications of the 2832440110 and the 808-HOL-05L

The length of the Blade, left model fitting for Holder 2832440110 with RDM number 808-HOL-05L is equal to the length of the original part. The product is thus 150 millimeter long and is a fitting replacement for your machinery. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 30 millimeter to be exact. The thickness of the Blade, left model fitting for Holder 2832440110 is important for the way the part fits on the machine. The 2832440110 from holder has a thickness of 5 millimeter. The alternative that is offered by RDM Parts with number 808-HOL-05L has an equal thickness and is thus a suitable alternative for the original.

The hole spacing of Blade, left model fitting for Holder 2832440110 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, left model fitting for Holder 2832440110 808-HOL-05L is 30 millimeter. The mounting holes of the 808-HOL-05L have a diameter of 6,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-HOL-05L fit?

the 808-HOL-05L and 2832440110 fit on holder machinery. The 808-HOL-05L is fitting for these parts: Sicma (Miglianico) 4811401, and Holder 2832440110.

Show more Show less

Properties

Product number: 808-HOL-05L
Manufacturer Industriehof
Replaces original
Sicma (Miglianico): 4811401
Holder: 2832440110
Technical details
Suitable for brand: Holder
Product type: Milling Knife
Bolt hole diameter: 6.5 mm
Boring: 6.5 mm
Hole spacing: 30 mm
Material Tickness: 5 mm
Mounting: Left
Thickness: 5 mm
Wideness: 30 mm
Working widt: 35 mm
