Blade, right model fitting for Agria 1250 271 30

Product information "Blade, right model fitting for Agria 1250 271 30"

1250 271 30 blades for the agria machine

1250 271 30 tiller blades fit on the rotary tillers of agria. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-AGR-02R.

Mounting the blades

Generally speaking, tiller blades like the 1250 271 30 and 808-AGR-02R are fixed with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-AGR-02R should therefore be placed on the right side to rotate correctly. Blades are placed in this alternating manner to optimally plough through the soil.

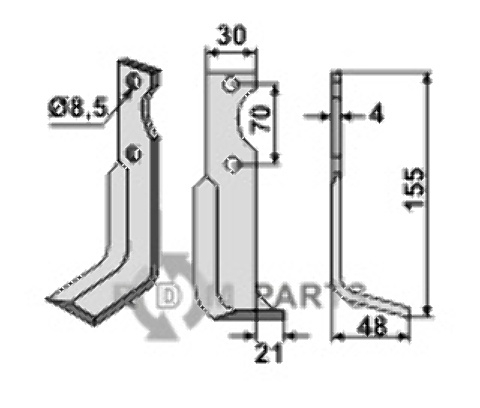

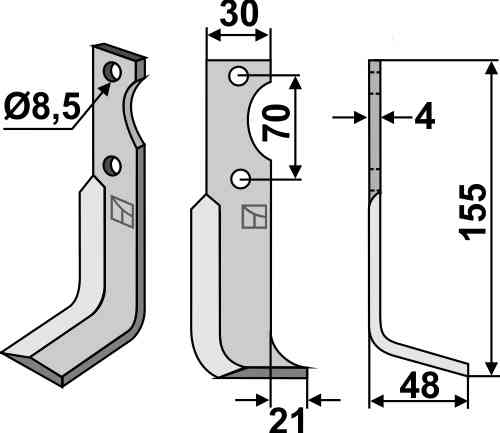

Specifications of the 1250 271 30 and the 808-AGR-02R

RDM Parts also has the 808-AGR-02R Blade, right model fitting for Agria 1250 271 30 with an equal length as the original. The Blade, right model fitting for Agria 1250 271 30 is 155 millimeter long. The original and the part from RDM Parts 808-AGR-02R are equal in width. This Blade, right model fitting for Agria 1250 271 30 is 30 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, right model fitting for Agria 1250 271 30 from agria is 4 millimeter thick. The alternative that is offered by RDM Parts with number 808-AGR-02R has an equal thickness and is thus a suitable alternative for the original. The hole spacing of Blade, right model fitting for Agria 1250 271 30 is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from agria. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, right model fitting for Agria 1250 271 30 808-AGR-02R has a hole spacing of 70 millimeter. The 808-AGR-02R and the original with are mounted with a mounting hole of 8,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-AGR-02R fit?

Like the original with number 1250 271 30, the 808-AGR-02R Blade, right model fitting for Agria 1250 271 30 fits on the machines of agria. The 808-AGR-02R is fitting for these parts: Celli 722557, and Agria 1250 271 30.

Show more Show less

Properties

Product number: 808-AGR-02R
Manufacturer Industriehof
Replaces original
Celli: 722557
Agria: 1250 271 30
Agria: 125027130
Technical details
Suitable for brand: Agria
Product type: Milling Knife
Bolt hole diameter: 8.5 mm
Boring: 8.5 mm
Hole spacing: 70 mm
Material Tickness: 4 mm
Mounting: Right
Thickness: 4 mm
Wideness: 30 mm
Working widt: 48 mm
