Toro Groundsmaster 322 D 72in Guardian Recycler Deck Model 30716

Choose your drawing here

5 drawings available

Bearing kit - spindle

R71-2530

€128.21*

Kit - blade and belt

R95-3088

€287.17*

#10

Mower blad

RDM-85-6040-03

€33.23*

#10

Rotary blade

R85-6040-03

€36.08*

#11

Rotary blade - mulcher 25 magnum

R85-6040M

€109.61*

#20

BELT - MAIN DRIVE

R69-6220

€238.95*

#20

Belt - main drive

R93-8457

€131.88*

#30

Wheel assy - 8 x 3.50 solid

R85-5760

€118.68*

#31

Wheel - hd solid assy 10 x 3.25

R92-1655

€116.66*

#32

Wheel assy - foam filled 8X3.5-4SM

R93-5974

€225.51*

#33

Caster wheel kit

R95-3083

€214.64*

#34

Caster wheel kit

R95-3082

€133.46*

#35

Tire - 10X3.50-4 (8 ply) foam filled

R150591

€133.32*

#35

Tire - 10X3.50-4 (8 ply) pneu

R93-4243

€62.39*

#36

Wheel - assy-foam filled 10X3.5-4SM

R93-5973

€277.83*

#37

Tyre foam filled 8 x 3.50-4

R150615

€97.84*

#37

Tire - 8X3.50-4 (4 ply) sm pneu

R93-9939

€36.83*

#40

Caster fork -

R94-5381-01

€281.99*

#41

Caster fork -

R94-5383-01

€215.62*

#42

Washer - thrust castor wheel

R3-6781

€2.48*

#43

Bushing - flanged

R94-1291

€9.39*

#44

Spacer - 1/2 hoc

R63-0070

€3.50*

#45

Washer - thrust

R92-1765

€3.18*

#46

Spacer - castor fork

R92-8866

€7.80*

#47

Bearing-stainless

R108-9017

€34.71*

#47

Bearing

R93-4237

€16.63*

#48

Spacer - caster wheel

R93-4241

€17.47*

#49

Hub assy - w/o bearings/spacer

R93-5980

€74.32*

#60

Rim - wheel half w/valve hole

R93-4239

€23.64*

#61

Rim - wheel half w/o valve hole

R95-2741

€22.55*

#62

Plate - caster wheel

R93-4242

€7.38*

#63

Locknut - 5/16-24 flanged top

R32128-16

€1.43*

#64

Nut - lock hex flanged 1/2-13

R32128-23

€2.11*

#65

Washer - flat 1/2

R453017

€0.81*

#66

Bearing - flanged - caster

R62-5580

€4.15*

#67

Bushing - spanner front

R62-4340

€7.43*

#68

Bolt - HX HD 1/2-13 X 5 1/2

R325-22

€5.23*

#70

Pulley - idler

R63-1540-03

€44.54*

#71

PIN - COTTER

R3272-11

€1.29*

#72

BOLT - HEX HD 3/8-16 X 3/4

R400258

€1.39*

#73

Pin - roller shaft

R57-0690

€5.64*

#74

Shaft - roller

R40-6400

€19.01*

#75

Roller

R36-1740

€38.04*

#76

KIT - U-JOINT

R54-9180

€46.66*

#77

Locknut - spindle

R3296-49

€4.44*

#78

WASHER - THRUST

R3-6498

€5.90*

#78

Ring

RDM-3-6498

€5.71*

#79

SEAL - SPINDLE

R253-154

€6.04*

#79

RDM-253-154

€6.40*

#80

SPACER - SPINDLE

R92-9800

€20.81*

#81

Shaft - spindle

R85-6010

€147.41*

#85

Bearing

R83-4740

€11.52*

#86

BOLT

R325-8

€4.89*

#87

MOUNT - RUBBER

R63-9750

€19.01*

#88

RING - RETAINING

R92-5581

€4.59*

#89

WASHER- CAP

R92-5583

€8.94*

#90

SPRING - COMPRESSION

R92-5584

€19.08*

#91

CAP - HOC

R92-8861

€49.63*

#92

Cap asm

R92-8862

€56.58*

#93

CUP - ANTI-SCALP

R72-9361

€32.80*

#94

BEARING

R251-321

€22.92*

#95

SPACER - CASTER WHEELS

R251-332

€22.43*

#96

CUP - BEARING

R254-67

€6.24*

#97

Bearing - tapered cone

R254-68

€17.21*

#98

BUSHING - STEEL CASTOR

R28-9290

€17.18*

#99

SEAL

R364170

€12.33*

#100

PAD - BUMPER

R69-9290

€15.09*

#101

BOLT - BLADE

R44-2200

€3.29*

#102

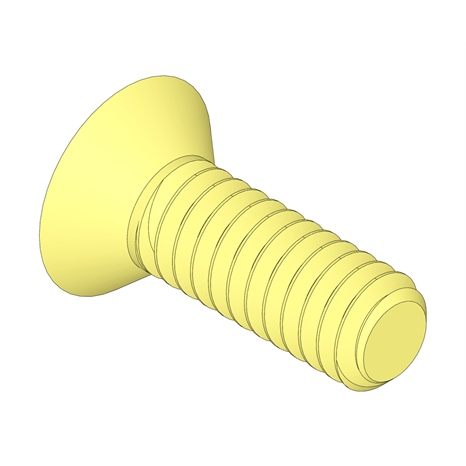

BOLT - 5/16-18 X 1 1/4 FL HD PH

R32108-103

€2.48*
