Toro Groundsmaster 322 D 72in Rear Discharge Deck Model 30710

Choose your drawing here

5 drawings available

Kit - blade and belt

R95-3087

€456.52*

BEARING ASSY - SPINDLE SET

R49-8320

€66.95*

#10

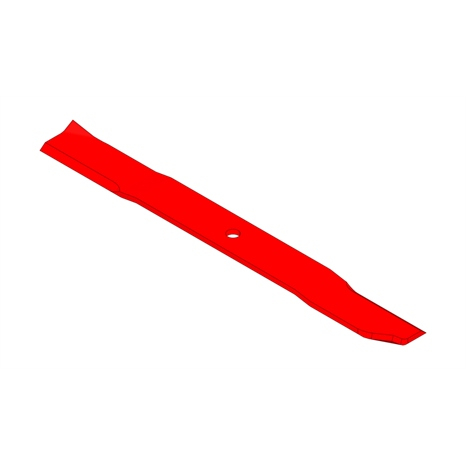

Rotary blade

R29-5530-03

€37.01*

#10

Maaimes

RDM-29-5530

€67.60*

#10

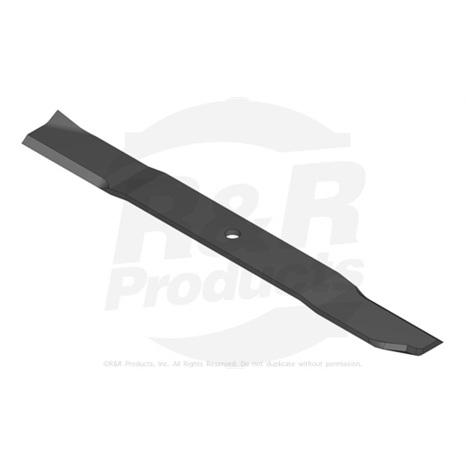

Rotary blade - fits toro 721399

R29-5530

€89.23*

#11

Rotary blade - mulcher 25

R29-5530M

€83.91*

#20

BELT - V DECK GM 72

R150505

€72.94*

#30

Caster wheel kit

R95-3084

€97.02*

#31

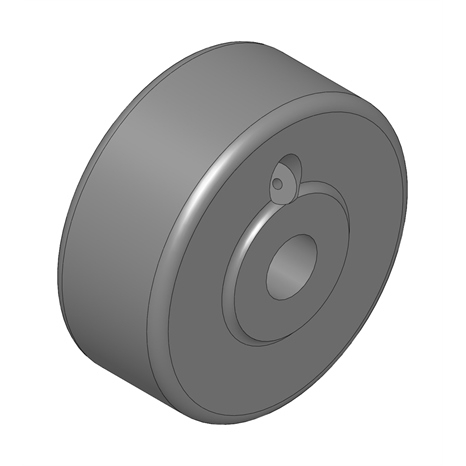

Wheel - hd solid assy 10 x 3.25

R92-1655

€116.66*

#33

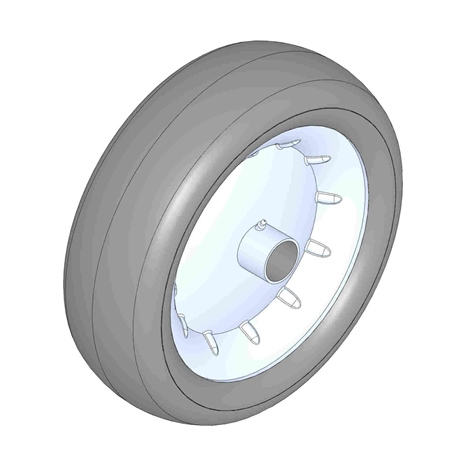

Wheel - pneu. assy 10X3.50-4

R93-4240

€188.01*

#33

Wheel - assy-foam filled 10X3.5-4SM

R93-5973

€277.83*

#34

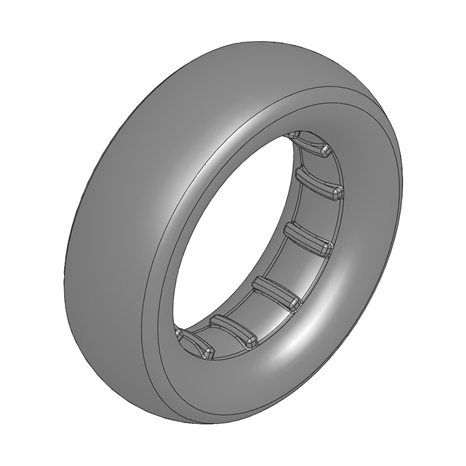

Tire - 10X3.50-4 (8 ply) pneu

R93-4243

€62.39*

#34

Tire - 10X3.50-4 (8 ply) foam filled

R150591

€133.32*

#34

Tire - front castor

R46-6230

€57.92*

#35

Loopwiel

R63-8400

€84.49*

#35

Tire w/wheel assy

R11-2929

€136.51*

#36

Wheel - gm 72 deck

R21-3860

€109.52*

#38

Caster wheel kit

R95-3082

€133.46*

#40

Roller

R31-0750

€38.68*

#41

PIN - ROLL 3/16 X 1-1/2

R32121-34

€2.12*

#42

R3272-11

€1.29*

#43

Fitting - grease 471214

R302-5

€1.02*

#47

Shaft - roller

R32-9610

€37.58*

#48

Locknut - spindle

R3296-49

€4.44*

#49

WASHER

R3-8514

€3.61*

#50

Pulley - idler

R26-1840

€37.23*

#51

Seal - spindle

R253-138

€7.20*

#53

SEAL - SPINDLE

R253-154

€6.04*

#53

RDM-253-154

€6.40*

#54

Spindle - assy outer

R84-2070

€400.75*

#54

Spindle - splined lh / rh

R26-1690

€396.18*

#55

Spindle - center splined

R26-1680

€381.26*

#56

PLUG - 1/8 NPT

R285-17

€3.17*

#57

Washer - belleville

R26-1990

€23.66*

#58

Bolt - blade

R26-1820

€23.98*

#59

Spacer - 1/2 hoc

R63-0070

€3.50*

#60

Bushing - flanged

R94-1291

€9.39*

#61

Washer - thrust castor wheel

R3-6781

€2.48*

#62

Bolt - axle

R325-17

€4.39*

#63

Nut - lock hex flanged 1/2-13

R32128-23

€2.11*

#64

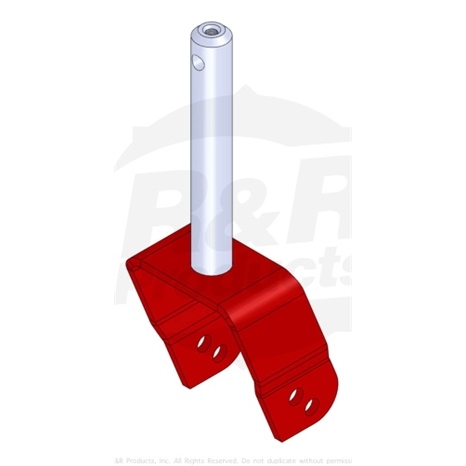

Caster fork -front 1/2 holes

R26-1530

€279.66*

#65

Bolt - HX HD 1/2-13 X 5 1/2

R325-22

€5.23*

#66

Caster fork - rear

R26-1560

€231.22*

#66

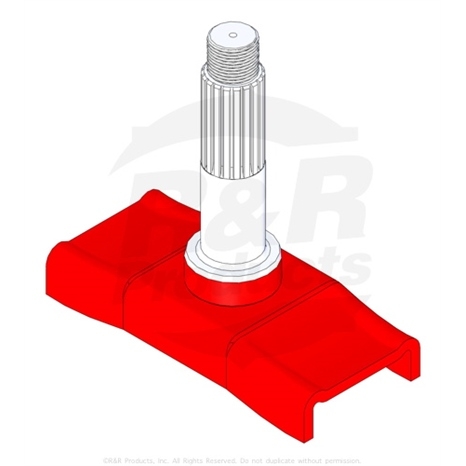

Caster fork -

R75-9680-01

€202.89*

#67

KIT - U-JOINT

R54-9180

€46.66*

#68

Washer - flat 1/2

R453017

€0.81*

#69

Bearing - flanged - caster

R62-5580

€4.15*

#70

Bushing - spanner front

R62-4340

€7.43*

#72

Bushing - spanner rear

R63-1770

€9.24*

#73

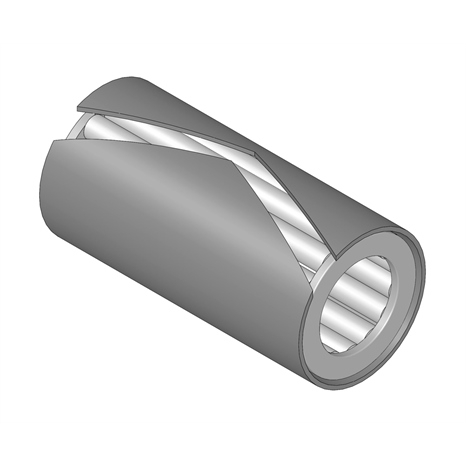

Bearing - roller rear wheel

R63-8580

€9.87*

#74

Bearing

R93-4237

€16.63*

#74

Bearing-stainless

R108-9017

€34.71*

#75

Spacer - caster wheel

R93-4241

€17.47*

#76

Locknut - 5/16-24 flanged top

R32128-16

€1.43*

#77

Plate - caster wheel

R93-4242

€7.38*

#78

Rim - wheel half w/o valve hole

R95-2741

€22.55*

#79

Rim - wheel half w/valve hole

R93-4239

€23.64*

#80

Hub assy - w/o bearings/spacer

R93-5980

€74.32*

#81

PIN - LYNCH HEAVY DUTY

R3290-384

€9.56*

#82

PIN-CLEVI

R283-82

€5.09*

#83

MOUNT - RUBBER

R63-9750

€19.01*

#84

CAP - HOC

R92-8861

€49.63*

#85

SPRING - COMPRESSION

R92-5584

€19.08*

#86

WASHER- CAP

R92-5583

€8.94*

#87

RING - RETAINING

R92-5581

€4.59*

#88

Cap asm

R92-8862

€56.58*

#89

Bearing - wheel

R21-3850

€19.32*

#90

Spacer - rear wheel

R21-1030

€8.68*

#91

Axle

R21-3870

€23.30*

#92

LOCKNUT - 1/2-20 CENTER

R32146-11

€2.11*

#93

SHACKLE

R5-2942

€38.26*

#94

PIN - CLEVIS

R283-10

€11.89*

#95

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€0.33*

#96

BOLT - HEX HD 1/2-13 X 3-1/4

R325-13

€4.68*

#97

WASHER - LOCK 7/16 ZINC

R3253-6

€0.73*

#98

Nut - 7/16-20 zinc

R3217-8

€1.84*

#99

Locknut - flanged 3/8-16 whiz top lock

R32128-21

€0.88*

#100

Nut - 3/8-16 yel hex

R3217-7

€0.39*

#101

Bolt - flanged serrated hex hd 3/8-16 x 3/4

R3234-1

€2.18*

#102

BOLT - CARRIAGE 3/8-16 X 1

R3231-22

€0.85*

#103

WASHER - LOCK 3/8

R3253-21

€0.24*

#104

WASHER - FLAT 7/16

R453013

€0.87*

#105

WASHER - 3/4 SAE

R453022

€1.29*
