Tine for rotary harrows, right model fitting for Howard 185516

185516 rotary harrow tines for the howard machine

A good alternative for your 185516 Tine for rotary harrows, right model fitting for Howard 185516 is the RDM Parts 808-RH-444-DER.

Mounting rotary harrow tines

Usually a part is fixed to a machine with a bolt. Besides that it is good to note that not every tine can be mounted universally. The tines have a rotation direction which is based on the placement of the blades edge. In case of the 185516 and our RDM Parts alternative 808-RH-444-DER, the tine is mounted on the right side.

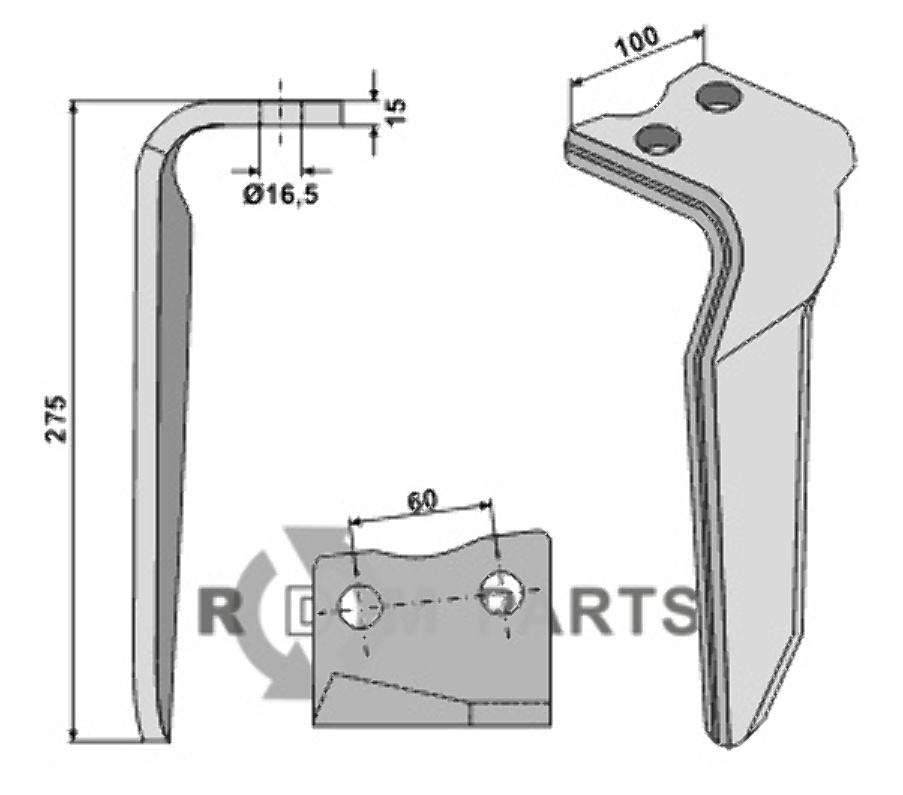

Specifications of the 185516 and the 808-RH-444-DER

The Tine for rotary harrows, right model fitting for Howard 185516 from howard is just as long as the 808-RH-444-DER from RDM Parts. The Tine for rotary harrows, right model fitting for Howard 185516 is 275 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 100 millimeter to be exact. The thickness of the Tine for rotary harrows, right model fitting for Howard 185516 is important for the way the part fits on the machine. The Tine for rotary harrows, right model fitting for Howard 185516 with part number 808-RH-444-DER has a thickness of 15 millimeter. The alternative that is offered by RDM Parts with number 808-RH-444-DER has an equal thickness and is thus a suitable alternative for the original. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from howard. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Tine for rotary harrows, right model fitting for Howard 185516 808-RH-444-DER has a hole spacing of 60 millimeter. This 808-RH-444-DER Tine for rotary harrows, right model fitting for Howard 185516 has a mounting hole of 16,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-RH-444-DER fit?

Comparable to the original with number 185516 the 808-RH-444-DER fits for the machines of howard. The 808-RH-444-DER is fitting for these parts: Kverneland kvmae 020146, and Howard 185516.

Do you have any questions about the 185516 van howard

If there is anything unclear about the 185516 or 808-RH-444-DER, send your question to our product experts. They will find a fitting answer to your question.
