Brake and drive pedal parts suitable for your Toro Greensmaster 3250 model 04383 & 04384

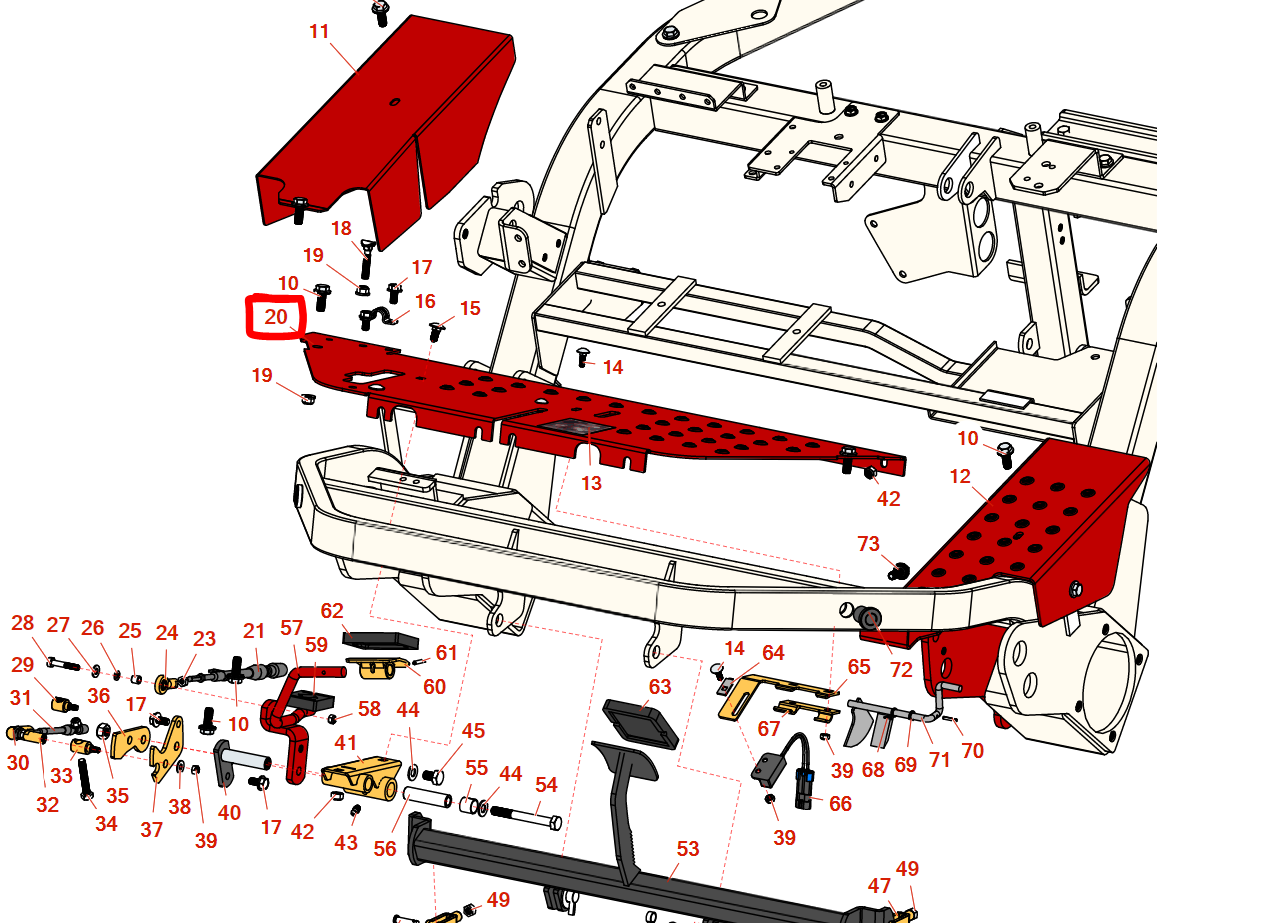

Choose your drawing here

16 drawings available

#10

Bolt - hex washer 5/16-18 x 5/8

R32144-14

€2.67 *

€2.67 incl. VAT

Delivery time 5 days.

#11

Shield - wheel - rh

R93-2072-01

€85.65 *

€85.65 incl. VAT

Delivery time 5 days.

#12

Shield - wheel - lh

R93-2073-01

€106.66 *

€106.66 incl. VAT

Delivery time 5 days.

#13

Decal - parking brake

R93-8062

€7.31 *

€7.31 incl. VAT

Delivery time 5 days.

#14

Bolt - carriage m6 x 20

R33123-016

€1.06 *

€1.06 incl. VAT

Delivery time 5 days.

#14

Bolt - carriage 1/4-20 x 5/8

R3229-11

€0.55 *

€0.55 incl. VAT

Delivery time 5 days.

#15

Bolt - carriage

R3230-2

€1.52 *

€1.52 incl. VAT

Delivery time 5 days.

#15

Bolt - carriage m8-1.25 x 20 cl8

R33124-020

€1.11 *

€1.11 incl. VAT

Delivery time 5 days.

#16

Clamp - cable

R93-2092

€6.43 *

€6.43 incl. VAT

Delivery time 5 days.

#17

Bolt - hx hd 8mm x 1.25 x 15

R33114-016

€0.85 *

€0.85 incl. VAT

Delivery time 5 days.

#18

Bolt - contour plow bolt

R17-9420

€3.93 *

€3.93 incl. VAT

Delivery time 5 days.

#19

Nut - serrated washer

R445722

€1.24 *

€1.24 incl. VAT

Delivery time 5 days.

#20

Discontinued - plate - floor

R105-9750-01

Details

#21

Cable - control - traction

R107-2550

€260.27 *

€260.27 incl. VAT

In stock

#22

Clamp-cable

R93-2279

€8.68 *

€8.68 incl. VAT

Delivery time 5 days.

#23

Nut - 1/4-28 jam

R3220-1

€0.19 *

€0.19 incl. VAT

Delivery time 5 days.

#24

Rod end - ball joint

R2411-41

€43.23 *

€43.23 incl. VAT

Delivery time 5 days.

#25

Spacer

R99-3545

€8.32 *

€8.32 incl. VAT

Delivery time 5 days.

#26

Washer - flat 6mm

R24M7139

€1.55 *

€1.55 incl. VAT

Delivery time 5 days.

#27

Washer - flat 1/4 yellow

R3256-22

€0.15 *

€0.15 incl. VAT

Delivery time 5 days.

#28

Bolt - hex hd 1/4-20 x 1-1/2

R400116

€1.58 *

€1.58 incl. VAT

Delivery time 5 days.

#29

Trunnion - bracket

R94-1374

€26.17 *

€26.17 incl. VAT

Delivery time 5 days.

#30

Ball joint

R2411-38

€20.17 *

€20.17 incl. VAT

Delivery time 5 days.

#31

Cable - neutral lock

R94-1304

€205.03 *

€205.03 incl. VAT

In stock

#32

Shaft-pedal, pivot

R94-1386

€53.48 *

€53.48 incl. VAT

Delivery time 5 days.

#33

Trunnion - bracket

R94-1375

€26.54 *

€26.54 incl. VAT

Delivery time 5 days.

#34

Bolt - hex hd m8 x 50

R94-3489

€1.90 *

€1.90 incl. VAT

Delivery time 5 days.

#35

Locknut - 3/8-16 flanged top lock

R32128-19

€1.16 *

€1.16 incl. VAT

In stock

#35

Locknut - 10mm x 1.5 jam

R33025-00

€0.42 *

€0.42 incl. VAT

In stock

#36

Bracket - mow

R94-1372

€21.52 *

€21.52 incl. VAT

Delivery time 5 days.

#37

Bracket lock

R94-1373

€28.26 *

€28.26 incl. VAT

Delivery time 5 days.

#38

Washer - flat 1/4

R453023

€0.16 *

€0.16 incl. VAT

In stock

#39

Locknut - esna 6mm x 1.0

R33023-00

€0.32 *

€0.32 incl. VAT

Delivery time 5 days.

#40

Lock-neutral

R94-1300

€126.68 *

€126.68 incl. VAT

Delivery time 5 days.

#41

Pedal- pivot

R94-1383

€289.80 *

€289.80 incl. VAT

Delivery time 5 days.

#42

Locknut - 8mm x 1.25

R33024-00

€0.87 *

€0.87 incl. VAT

Delivery time 5 days.

#42

Locknut - 5/16-18 flanged y/zinc

R104-8300

€0.46 *

€0.46 incl. VAT

In stock

#43

Fitting - grease

R302-5

€0.69 *

€0.69 incl. VAT

In stock

#44

Washer - flat 3/8 sae y/zinc

R453011

€0.26 *

€0.26 incl. VAT

In stock

#45

Bolt - hex hd m10 x 16

R33115-016

€1.40 *

€1.40 incl. VAT

Delivery time 5 days.

#46

Pin - clevis 5/16 x 1-1/8

R283-61

€1.24 *

€1.24 incl. VAT

Delivery time 5 days.

#47

Yoke

R282-2

€15.44 *

€15.44 incl. VAT

Delivery time 5 days.

#48

Pin - cotter 3/32 x 3/4

R1023-4

€0.36 *

€0.36 incl. VAT

Delivery time 5 days.

#49

Nut - jam - 5/16-24

R3220-2

€0.66 *

€0.66 incl. VAT

Delivery time 5 days.

#50

Pin - cotter

R3272-11

€1.19 *

€1.19 incl. VAT

Delivery time 5 days.

#51

Washer - flat 5/8 sae

R3256-27

€0.58 *

€0.58 incl. VAT

Delivery time 5 days.

#52

Pin - clevis

R283-87

€7.33 *

€7.33 incl. VAT

Delivery time 5 days.

#53

Brake pedal assy

R93-2075-01

€249.24 *

€249.24 incl. VAT

Delivery time 5 days.

#54

Bolt - hex hd m10 x 90

R33115-090

€18.04 *

€18.04 incl. VAT

Delivery time 5 days.

#55

Bushing-split

R256-311

€22.50 *

€22.50 incl. VAT

Delivery time 5 days.

#56

Spacer

R94-1371

€19.37 *

€19.37 incl. VAT

Delivery time 5 days.

#57

Rod assy

R93-2085-01

€162.29 *

€162.29 incl. VAT

Delivery time 5 days.

#58

Locknut - 1/4-20 esna flanged

R104-7201

€0.91 *

€0.91 incl. VAT

Delivery time 5 days.

#58

Nut - lock - 1/4-20 esna jam

R3296-56

€1.90 *

€1.90 incl. VAT

In stock

#59

Rubber foot pad - reverse

R74-9110

€13.86 *

€13.86 incl. VAT

In stock

#60

Pedal - forward assy

R49-6440-03

€26.34 *

€26.34 incl. VAT

Delivery time 5 days.

#61

Pin - spring roll 5/32 x 1

R32121-45

€0.35 *

€0.35 incl. VAT

Delivery time 5 days.

#62

Rubber foot pad - forward

R74-9100

€16.42 *

€16.42 incl. VAT

Delivery time 5 days.

#63

Rubber foot pad - brake

R93-7629

€19.76 *

€19.76 incl. VAT

Delivery time 5 days.

#64

Plate-switch - neutral

R100-4872

€14.69 *

€14.69 incl. VAT

Delivery time 5 days.

#65

Bracket - switch

R104-2096

€49.49 *

€49.49 incl. VAT

Delivery time 5 days.

#66

Sensor

R104-2057

€167.99 *

€167.99 incl. VAT

Delivery time 5 days.

#67

Hing e- lower

R104-7703

€31.03 *

€31.03 incl. VAT

Delivery time 5 days.

#68

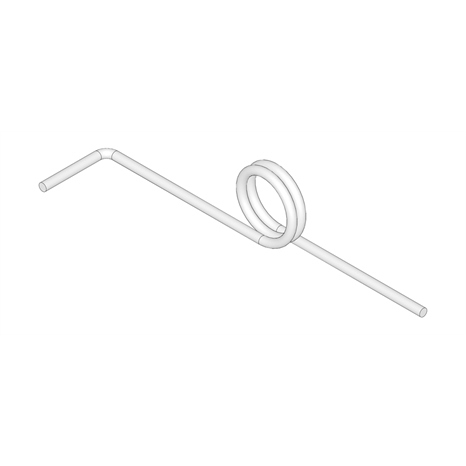

Spring - brake latch

R104-7704

€17.80 *

€17.80 incl. VAT

Delivery time 5 days.

#69

Spacer - bearing

R75-5470

€3.00 *

€3.00 incl. VAT

Delivery time 5 days.

#70

Pin - roll spiral lock 1/8 1147

R32121-50

€1.57 *

€1.57 incl. VAT

Delivery time 5 days.

#71

Brake - latch

R104-2094

€186.81 *

€186.81 incl. VAT

Delivery time 5 days.

#72

Bushing - flanged - plastic

R83-1700

€6.56 *

€6.56 incl. VAT

Delivery time 5 days.
