Jacobsen Greens King IV Plus Grass Catcher Lift Arm

Choose your drawing here

5 drawings available

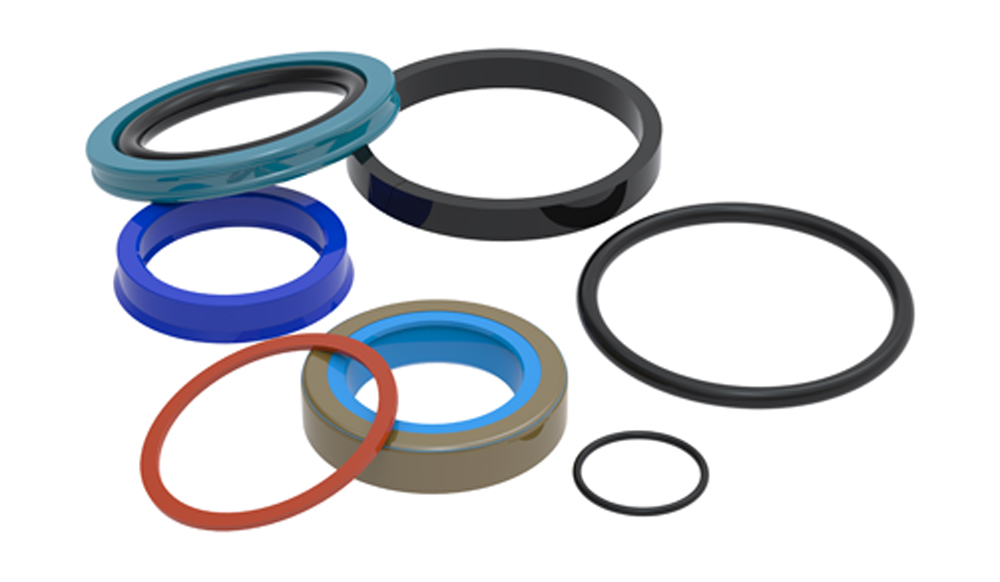

R4138591 seal kit - fits 4138520 cylinder

R4138591

€134.37*

#70

Yoke - lift assy lh

R122786

€414.33*

#71

Yoke - lift assy rh

R122787

€414.33*

#72

Yoke - lift assy center

R122783

€414.33*

#73

Arm - center lift fits gas

R132084

€400.22*

#74

Arm - center lift diesel

R503644

€474.34*

#75

Arm - lift front

R503648

€462.45*

#76

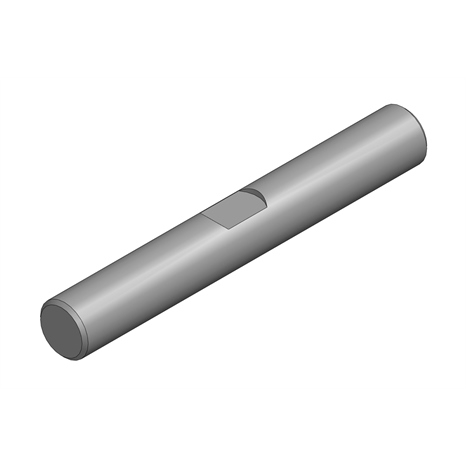

SHAFT - FRONT RH

R163430

€128.11*

#77

CAM - RH

R160034

€230.98*

#78

CAM - LH

R160033

€230.98*

#79

Shaft - front lh

R163431

€128.11*

#80

Grass basket

R101530

€540.58*

#81

SPRING - TORSION LH

R353935

€67.66*

#82

KEY - WOODRUFF

R463017

€1.56*

#83

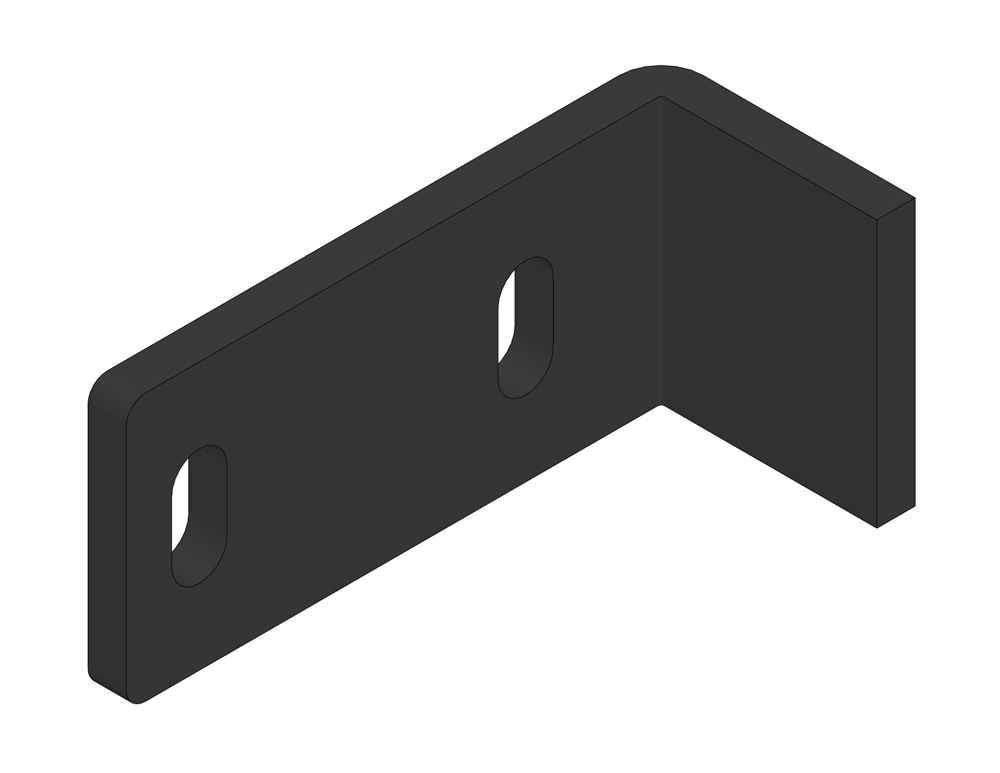

STOP

R353956

€104.64*

#84

PIN - CENTER LIFT ARM

R354039

€73.05*

#85

R345293 pin

R345293

€66.19*

#86

PIN - COTTER 3/16 X 1-1/2

R460052

€0.70*

#87

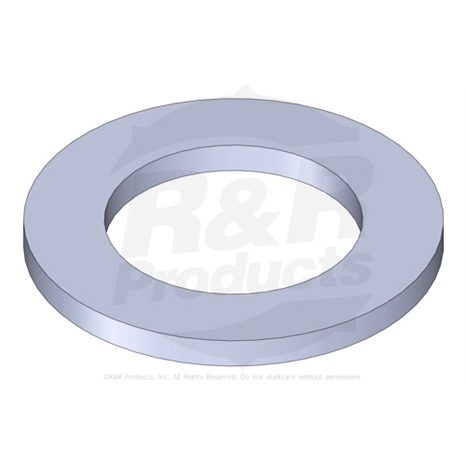

WASHER - SPACER

R303629

€2.07*

#88

WASHER - THRUST

R367349

€6.52*

#89

RING - RETAINING

R458433

€5.86*

#90

WASHER - 5/8 SAE FLAT Z

R453020

€1.97*

#91

Locknut - 5/8-11 esna yellow

R3296-53

€2.54*

#92

NUT - 5/16-18 CENTER LOCK YZ

R444718

€1.13*

#93

PIN - GROOVED 5/16 X 2 TYPE E

R461338

€3.57*

#94

Fitting - grease 471214

R302-5

€1.02*

#95

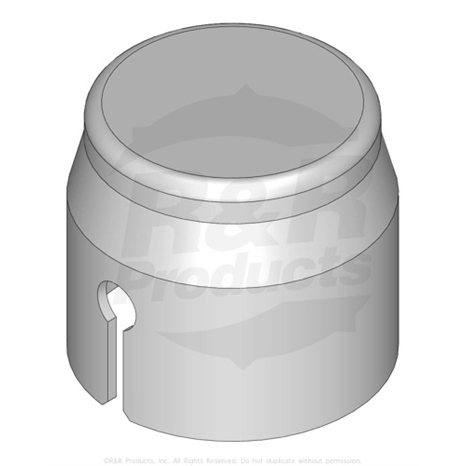

BUSHING - CAMSHAFT HOUSING

R357999

€10.19*

#96

COVER - SWIVEL HOUSING

R3004870

€8.16*

#97

SPRING - SWIVEL HOUSING

R3004063

€8.25*

#98

HOUSING - SWIVEL

R239066

€189.76*

#99

PIN - HARDENED 5/16 X 2 1/4

R3004975

€7.73*

#101

axis R313153

R313153

€733.44*

#102

SPRING - TORSION CENTER UNIT

R365003

€63.20*

#103

CLAMP - TORSION SPRING

R365007

€13.67*

#104

BUSHING - LIFT ARM

R365001

€9.09*

#105

SPACER - HARDENED CAM

R353906

€13.92*

#106

WASHER - CAM CENTER LIFT

R323943

€8.05*

#107

ROLLER - CAM HARDENED

R353907

€20.15*

#108

SPRING - TORSION RH

R353938

€67.66*

#109

SPACER - HARDENED CAM

R3000417

€8.11*

#110

ROLLER BEARING - HARDENED CAM

R3000418

€10.66*

#111

BOLT - CAM 5/8-11 X 3 GR8

R400624

€13.95*

#112

BOLT - HEX HD 1/2-13 X 1-1/2

R400408

€6.12*
