Toro Z Master Commerical 3000 52in Deck parts

Choose your drawing here

3 drawings available

#20

BELT- V

R115-7426

€279.72*

#30

BLADE-18 INCH (HI FLOW)

R105-7781-03

€59.25*

#30

R110-0408 rotary blade kit - 18 in recycler set/6

R110-0408

€209.94*

#30

R108-1117 rotary blade kit - 18 in high-flow s...

R108-1117

€196.04*

#30

Blad

RDM-105-7781-03

€47.67*

#30

R105-7779-03 rotary blade - 18 in recycler

R105-7779-03

€63.49*

#40

WHEEL - FRONT ASSY

R68-2730

€34.56*

#40

Wheel - front assy

RDM68-2730

€20.85*

#42

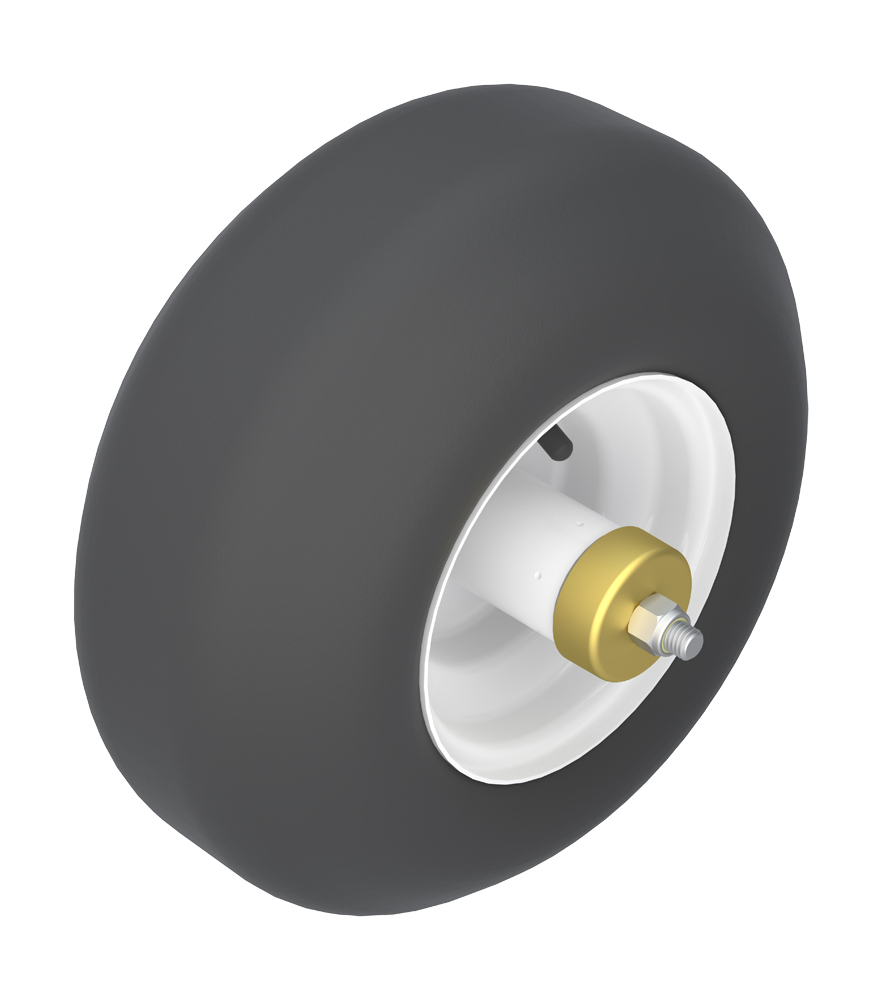

R127-9540 tire & wheel - 13x6.50-6 pneumatic

R127-9540

€266.83*

#42

R117-0361 wheel & tire assy 13x6.50-6 pneumatic

R117-0361

€433.97*

#70

PLATE-HINGE, FRONT

R106-3253-01

€46.54*

#71

Use R32128-19

R104-8301

€1.33*

#72

PLATE-HINGE, REAR

R108-4059-01

€28.75*

#73

R106-3246-01 deflector

R106-3246-01

€118.71*

#74

DEFLECTOR - LONG

R151416

€125.96*

#75

STRAP - DISCHARGE

R106-3248-03

€28.50*

#76

BOLT - CARRIAGE 3/8-16 X 1-1/2

R3231-4

€3.41*

#77

R108-2792 rubber deflector assy

R108-2792

€461.52*

#78

LOCKNUT - 5/16-18 JAM NYLOC

R3296-47

€0.86*

#79

SPRING - TORSION

R108-4052

€36.63*

#80

BOLT - HX HD 5/16-18 X 7 1/2

R322-50

€9.80*

#81

Spacer - Wheel

R98-5967

€14.92*

#82

R108-5388 bolt - hx hd 3/8-16 x 7 1/2

R108-5388

€22.89*

#83

R115-7455-01 baffle assy

R115-7455-01

€209.27*

#84

BOLT - CARRIAGE 3/8-16 X 7/8

R3231-27

€0.87*

#85

Bushing - Tub

R98-7913

€8.95*

#86

Bushing - spanner wheel

R98-7912

€9.01*

#87

BOLT - HEX HD 3/8-16 X 4-1/2

R323-23

€3.40*

#88

Bolt - blade

R51-4060

€6.84*

#89

WASHER - BLADE BOLT HD

R103-0865

€11.60*

#90

SPINDLE SHAFT AND ZERK ASM

R119-8527

€88.95*

#91

SEAL - OIL

R253-133

€12.31*

#92

Toro mesaslager

RDM-119-8558

€17.50*

#92

R119-8558 bearing - ball - special

R119-8558

€24.44*

#93

SPACER

R117-6184

€12.28*

#94

R119-8532 snap ring

R119-8532

€9.73*

#95

R117-6172 spindle hub assy w/studs

R117-6172

€73.54*

#96

R92-5836 flat washer - hardened

R92-5836

€9.57*

#97

LOCKNUT - 3/4-16 HEAVY JAM

R3296-67

€6.06*

#98

ZERK - GREASE

R471219

€0.87*

#99

R119-8560 spindle assy

R119-8560

€573.20*

#100

R115-7450 pulley - 6.75 in dia with 1.75 bore

R115-7450

€88.28*

#101

BOLT- RIBBED NECK

R114-8195

€2.76*

#102

NUT - FLANGED WHIZ - 3/8-16

R32128-43

€1.00*

#103

MOUNT-PULLEY

R112-4212

€18.32*

#104

BOLT - 3/8-16 X 2 1/4 GR5

R323-11

€1.34*

#105

SPACER

R104-0151

€24.81*

#106

R116-6317 spring - extension

R116-6317

€48.58*

#107

ANCHOR - SPRING - TALL

R114-5867

€29.80*

#108

FORK - CASTER

R116-8888

€203.33*

#109

WASHER - SPRING DISC

R1-633508

€4.39*

#110

R103-3051 spacer - nut - hardened

R103-3051

€17.80*

#111

R103-2768 guard - seal

R103-2768

€8.71*

#112

R103-0063 seal - grease

R103-0063

€11.82*

#113

AXLE- CASTER

R103-5156

€25.37*

#113

R103-3155 axle - caster

R103-3155

€49.99*

#114

BOLT - HX HD 1/2-13 X 9 1/2

R325-39

€20.46*

#115

Nut - Nylon Lock 3/4-10

R3296-51

€7.24*

#116

BAFFLE - DISCHARGE

R107-8541-01

€33.96*

#117

Bearing - tapered

R254-94

€10.13*

#118

Seal

RDM-1-543511

€12.66*

#118

SEAL- GREASE

R1-543511

€13.32*

#119

LOCKNUT - ESNA 1/2-13

RF5003

€2.11*

#120

R109-7952 deck strut assy

R109-7952

€196.46*

#121

R109-5013 panhard rod assy

R109-5013

€201.45*

#122

NUT - 7-16-14 HX SERR FL

R32128-37

€4.69*

#123

Bolt - axle

R325-17

€4.39*

#124

R109-5009 bushing - suspension - rubber

R109-5009

€6.97*

#125

R116-0797-03 link-lift - deck

R116-0797-03

€225.62*

#126

R116-0780 bolt - hx hd fl shoulder

R116-0780

€20.62*

#127

WASHER - 3/4 SAE

R453022

€1.29*

#128

Nut - lock hex flanged 1/2-13

R32128-23

€2.11*

#129

R109-5010 spacer

R109-5010

€9.73*

#130

R112-4230-01 plate- skid

R112-4230-01

€142.27*

#131

R3233-34 carriage bolt - 1/2-13 x 2 1/2 grade 5

R3233-34

€17.44*

#132

R116-0886 spring - extension

R116-0886

€216.58*

#133

BEARING - TAPERED

R254-78

€8.77*

#134

CUP - BEARING

R254-72

€5.49*

#135

R126-2475-03 decklift - front

R126-2475-03

€394.36*

#136

R126-5360 axle- caster w/spacer nut

R126-5360

€44.71*

#137

R121-7975-01 plate - skid

R121-7975-01

€74.86*

#138

R115-7461-01 baffle assy

R115-7461-01

€323.22*

#139

R116-0459-03 lift - rear deck

R116-0459-03

€568.65*

#140

R114-5870 idler arm assy

R114-5870

€289.67*

#141

R1-303514 bearing - flanged

R1-303514

€30.60*

#142

R109-9066 yoke - adjust - deck

R109-9066

€12.39*
