Jacobsen Tri King 1670 Reel Bedknife

Choose your drawing here

2 drawings available

Reel - 10 blade fitting for rh Jacobsen 122548

R503277

€677.89*

Reel - 7 blade fitting for rh 5002088

R5002088

€595.07*

Reel - 10 blade fitting for lh Jacobsen 122549

R503276

€680.38*

Reel - 5 blade fitting for lh Hahn 122546

R503275

€534.17*

Reel - 5 blade fitting for rh Jacobsen 122547

R503274

€539.55*

Reel - 7 blade fitting for rh Jacobsen 5002088

R5002087

€597.34*

Bedknife - min. maaihoogte 11.1MM - 26 inch

R554284

€148.79*

#10

OVERHAUL KIT - CUTTING UNIT

R100131

€107.09*

#11

Tool bedknife screw

R101272T

€80.82*

#30

NUT - BEDKNIFE

R101271

€1.27*

#31

Screw - bedknife

R101270

€1.43*

#32

SEAL

R337593

€15.80*

#33

Bearing

R500596

€16.92*

#34

CUP - BEARING

R254-72

€5.49*

#35

RING - RETAINING REEL

R458039

€3.73*

#36

GASKET - COVER

R364147

€2.38*

#37

SPRING - REEL BRG TENSION

R364148

€9.98*

#38

Bearing - tapered

R254-94

€10.13*

#39

GASKET - MOTOR END

R364777

€5.76*

#40

Bracket - roller lh

R132313

€117.09*

#41

chimney bar R132312

R132312

€98.24*

#42

BRACKET - FRONT H.O.C. RH

R132028

€107.56*

#43

Bracket - front h.o.c. lh

R132029

€107.56*

#44

PLATE - BACKUP ROLLER BRACKET

R338859

€28.70*

#45

Bracket adj assy - rear roller

R131879

€329.71*

#46

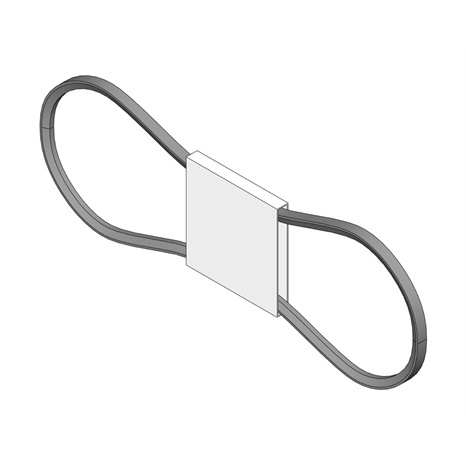

BELT - MOWER

R390704

€46.63*

#47

SCREW - ADJUSTING REEL 3/8-16 THD

R364265

€20.49*

#48

DISC - REEL SHAFT

R364275

€8.07*

#49

HANDLE - ADJUSTING 3/8-16 THREAD

R365994

€106.26*

#50

BUSHING

R364140

€23.28*

#51

Locknut - 5/8-18 esna jam

R3296-33

€1.88*

#52

SPRING - REEL ADJUSTING

R366973

€11.35*

#53

PLUG - ADJ. HANDLE

R472519

€3.25*

#54

WASHER - SPRING MT

R319755

€7.62*

#55

SEAL - OIL REEL

R338362

€17.30*
