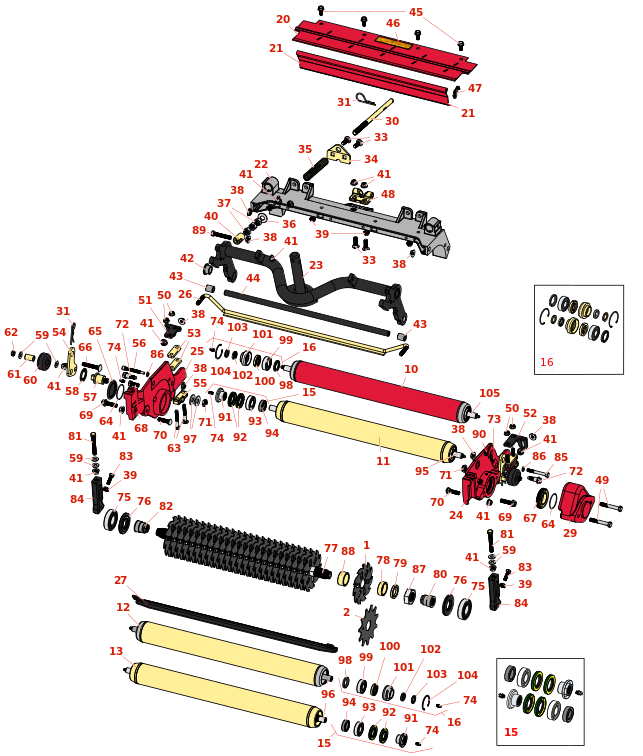

Toro Reelmaster 5210 D Verti Cut Reel Frame

Choose your drawing here

2 drawings available

Verti-cut blade - carbide tipped 2MM

R150209C

€21.18*

Verti-cut blade

R17-1590

€10.83*

#10

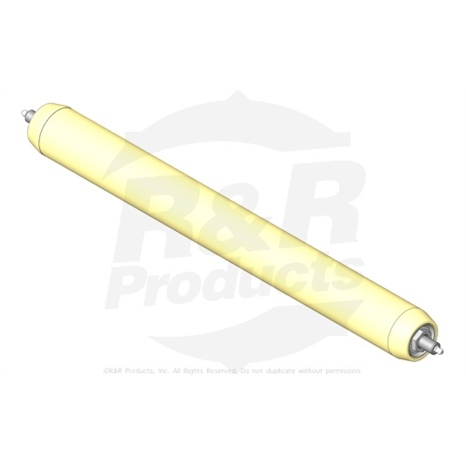

Roller - smooth tubular steel

R107-4040

€440.40*

#11

Roller - smooth tubular steel

R114-5404

€316.71*

#12

Roller assy - 2.5 solid front

R110-9614

€476.26*

#13

Roller - 2.5 solid front

R114-5419

€440.83*

#15

Overhaul kit - roller

RDM-114-5430

€123.23*

#15

Bearing kit roller

R114-5430

€125.10*

#16

Overhaul kit - roller

R106-9606

€168.46*

#20

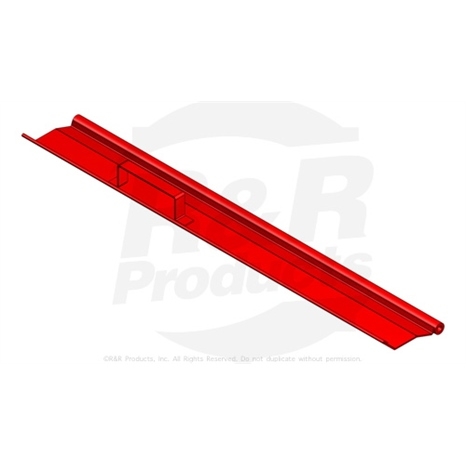

Grass shield - front

R107-2996

€89.33*

#21

Grass shield assy - rear

R107-7777-01

€149.69*

#22

Frame

R107-2951

€379.93*

#23

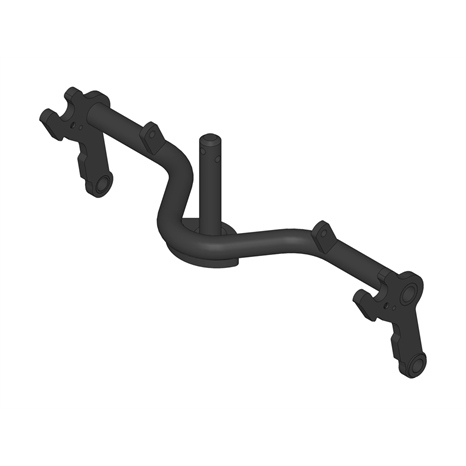

Carrier frame assy

R106-3937

€736.94*

#24

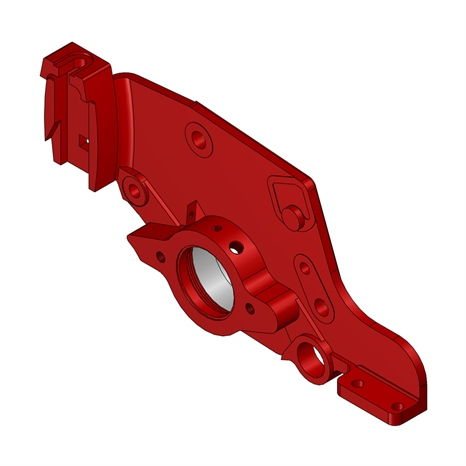

Lh side plate assy

R110-9628

€470.96*

#25

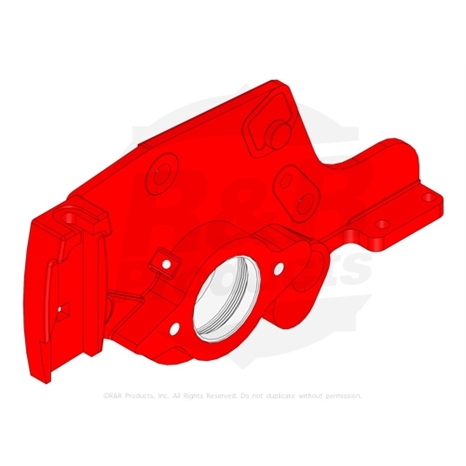

Rh side plate assy

R110-9629

€464.43*

#26

Scraper - rear roller

R107-2999

€71.28*

#27

Scraper - full front 2.5 in

R108-4475-03

€77.32*

#29

Weight

R108-9090-01

€152.22*

#30

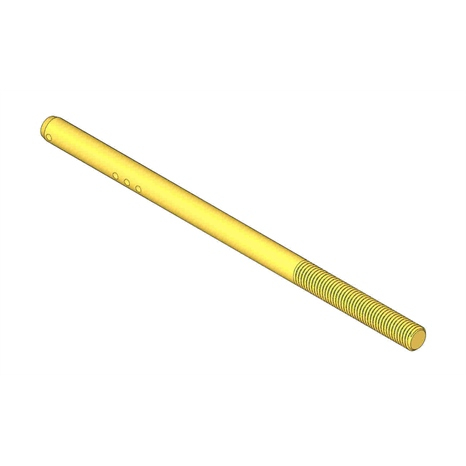

Rod - turf tension

R108-4959

€72.81*

#31

PIN - SNAP

R92-2762

€2.26*

#33

Bolt - carriage 3/8-16 x 1-1/4

R3231-25

€1.06*

#34

Bracket

R110-4069

€8.35*

#35

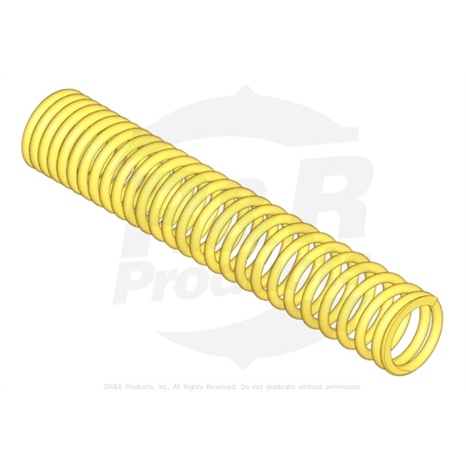

Spring - turf tension

R108-4960

€31.39*

#36

Washer - flat 1/2

R453017

€0.81*

#37

Nut - 1/2-13 hex jam zinc

R443818

€1.05*

#38

NUT - FLANGED WHIZ - 3/8-16

R32128-43

€1.00*

#39

NUT - SERRATED WASHER

R445722

€1.57*

#40

TUBE - SPRING

R99-8662

€30.02*

#41

Use R32128-19

R104-8301

€1.33*

#42

BUSHING - FLANGED

R93-2877

€5.29*

#43

Spacer - frame

R108-4279

€17.30*

#44

Shaft - support

R108-4284

€84.93*

#45

Bolt - 5/16-18X3/4 hx ser was hd

R3234-5

€1.23*

#46

DECAL - WARNING

R93-6688

€4.61*

#47

Tab - stop - shield

R108-4961

€59.16*

#48

Bracket - chain

R110-4058

€46.54*

#49

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€2.82*

#50

Locknut - 5/16-18 flanged y/zinc

R104-8300

€0.76*

#51

Bracket - scraper - rh

R107-3281

€40.23*

#52

Bracket - scraper - lh

R107-3279

€40.23*

#53

Shim - 1/4 - rear roller hoc

R106-3925

€10.53*

#54

Bracket - adj

R108-4286

€24.66*

#55

Bracket - rear roller

R106-3924

€36.63*

#56

Bolt - soc hd cap 5/16-18 x 2-1/2

R107-7773

€16.38*

#57

Pin - roller mounting

R108-4289

€82.49*

#58

WASHER - 1 IN INTERAL STAR

R3254-21

€5.00*

#59

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€0.33*

#60

Roller - verti-cut

R108-4293

€15.02*

#61

SPACER - WHEEL

R59-2580

€12.97*

#62

LOCKNUT - 3/8-16 NYLON JAM

R3296-59

€1.55*

#63

BOLT - CARRIAGE 5/16-18 X 1-1/2

RP17609-2

€0.83*

#64

O-RING

R237-68

€4.24*

#65

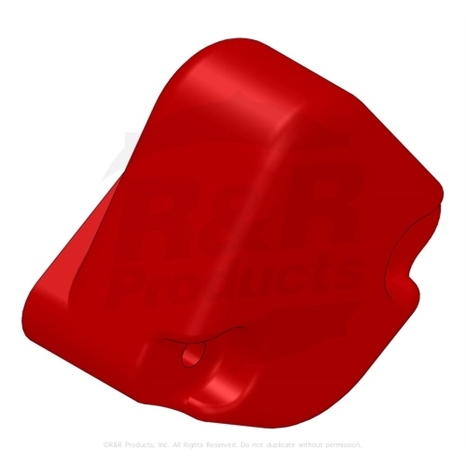

Cap - protective bearing housing

R150485

€1.67*

#66

BOLT - CARRIAGE 3/8-16 X 2-1/4

R3231-7

€7.31*

#67

Nut - bearing adjuster

R107-2954

€26.32*

#68

BOLT - HEX WASHER HD

R3234-11

€1.56*

#69

BOLT - HEX WASHER 3/8-16X1-3/4

R3234-19

€2.63*

#70

BOLT - CARRIAGE 3/8-16 X 1-1/2

R3231-4

€3.41*

#71

NUT - 1/2-20 ESNA JAM

R3296-28

€2.03*

#72

Bolt - shoulder

R107-2979

€5.09*

#74

Fitting - grease 471214

R302-5

€1.02*

#75

Bearing

R93-2489

€29.56*

#76

SEAL - GREASE

R107-4028

€34.36*

#77

Shaft assy - v-cut

R108-4955

€623.51*

#78

Spacer - v-cut reel 1/2

R17-1580

€7.90*

#79

Spacer - 1/4 in - v-cut shaft

R108-4994

€25.88*

#80

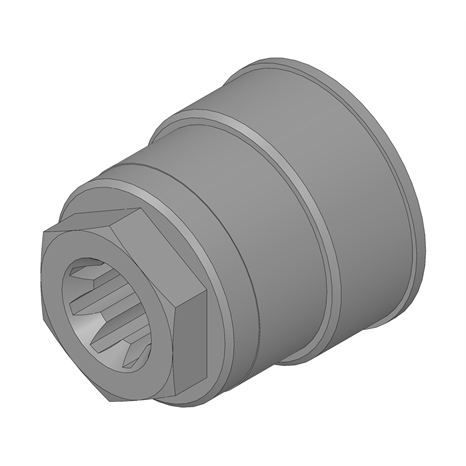

Insert-lh - verticut

R108-4957

€188.88*

#81

Bolt - hex tap 3/8-16 x 2-3/4

R112-7451

€4.45*

#82

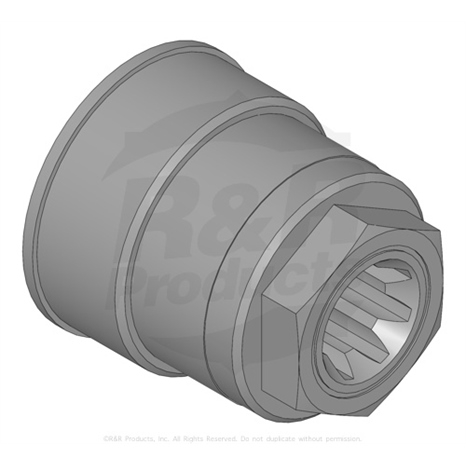

Insert-rh - verticut

R108-4958

€188.88*

#83

BOLT - HEX HD 5/16-18 X 1-1/8

R322-16

€4.24*

#84

Bracket - front roller

R107-2952

€78.30*

#85

BOLT - HEX HD 5/16-18 X 3 GR5

R322-14

€3.05*

#86

Washer - flat

R3256-74

€1.06*

#87

Nut - jam v-cut shaft

R3220-18

€12.35*

#88

Spacer - v-cut

R82-6600

€8.58*

#89

Bolt - hex hd 3/8-16 x 2-1/4

R104-3396

€3.32*

#90

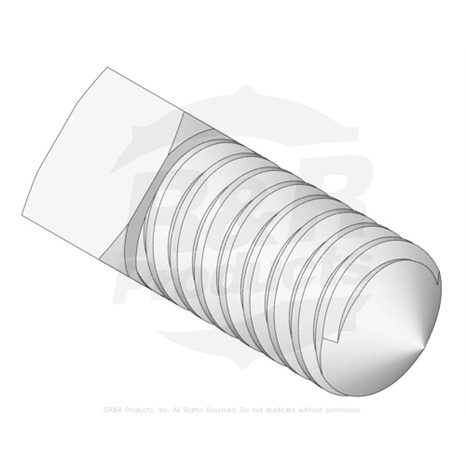

SET SCREW - 1/4-20 X 1/2 CONE POINT

R106-4214

€5.76*

#91

LOCKNUT - BEARING

R114-3745

€44.25*

#92

Seal

R112-7494

€11.19*

#93

Bearing - stainless

R112-5290

€23.43*

#94

Seal

R114-3717

€5.00*

#95

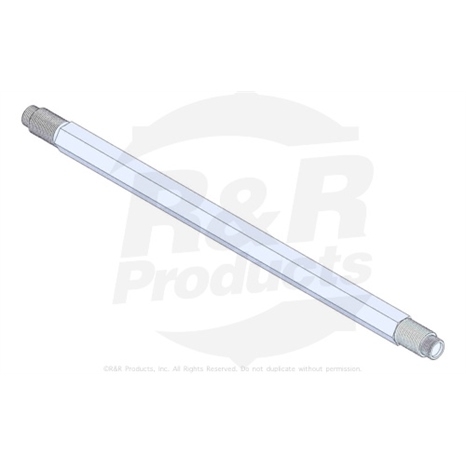

Shaft - long rear roller

R114-5407

€132.51*

#96

Shaft - front roller

R110-4053

€140.51*

#97

WASHER - FLAT 7/16

R453013

€0.87*

#98

Seal

R93-3007

€7.25*

#99

BEARING - BALL

R343667

€29.04*

#100

Seal

R93-1251

€15.31*

#101

Seal - outer

R93-1252

€30.06*

#102

Seal

R253-70

€7.45*

#103

WASHER - ROLLER SEAL

R93-2931

€5.78*

#104

Ring - retaining

R32120-62

€2.73*

#105

Shaft - rear long roller

R107-3296

€135.76*
