Toro Reelmaster 2000D Verti Cut Reel Frame

Choose your drawing here

2 drawings available

Blade - carbide tip

R106-8625

€45.30*

Blade - vertical mower 1/16X7.25

R93-3038-03

€6.39*

#10

Roller assy - solid 3 in

R105-0191

€595.10*

#11

Shaft - roller

R105-0194

€277.55*

#12

Bearing - ball

R251-347

€11.50*

#13

Ring - snap

R32120-15

€3.38*

#14

Seal

R150614

€27.24*

#15

Shaft assy - verticut

R105-0198

€656.79*

#16

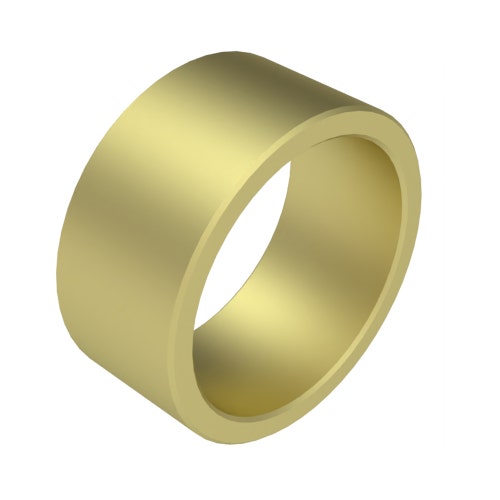

Spacer - verticut shaft 1.2 in

R105-0172

€27.07*

#17

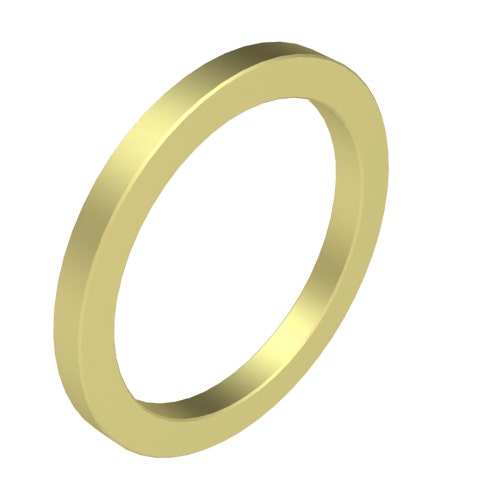

SPACER - VERTICUT SHAFT 1/4 IN

R105-0177

€12.96*

#18

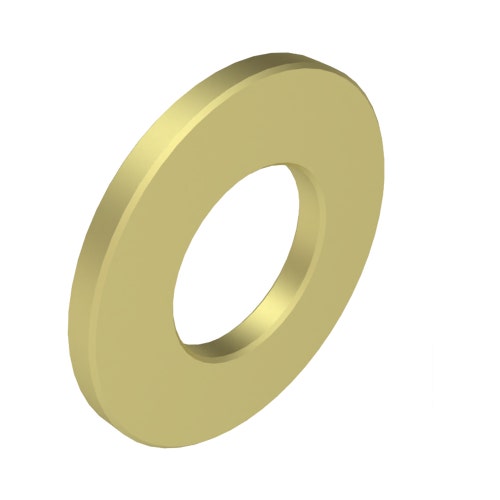

WASHER - VERTICUT SHAFT 1/4 IN

R105-0173

€33.89*

#19

NUT - JAM 1-3/8-12

R3220-25

€47.42*

#20

Shield - top incl. safety decal 27 in

R94-3621

€152.25*

#21

DECAL - WARNING

R93-6688

€4.61*

#22

DECAL - WARNING

R67-7960

€6.23*

#23

SCREW - HEX WAS HD

R32144-10

€4.03*

#24

Shield-grass, rear

R105-0195-01

€192.27*

#25

REEL FRAME - 27 IN

R95-8753-01

€402.25*

#26

Scraper-full

R105-0167-03

€117.04*

#27

Nut - roller adj short

R95-2789

€7.90*

#28

R100-2262-01

€64.69*

#29

BOLT - HEX HD 5/16-18 X 1-1/8

R322-16

€4.24*

#30

TAB-STOP

R94-2747

€15.04*

#31

R100-2263

€229.33*

#32

Plate-side

R105-0199-01

€119.02*

#33

HOUSING-BEARING

R99-3404

€129.05*

#34

Bearing - reel self aligning

R100-4926

€31.50*

#35

Coupling - rh reel

R93-8825

€177.27*

#36

Spider - reel coupling

R93-8827

€34.03*

#37

PLUG - PLASTIC SPINDLE HOUSING

R94-2703

€3.05*

#38

O-RING

R353-949

€4.01*

#39

BOLT - HEX HD 3/8-16 X 1 GR5 YZ

R323-6

€0.93*

#40

Fitting - grease 471214

R302-5

€1.02*

#41

PIN-SPRING

R32121-36

€5.86*

#42

BOLT - HEX HD 3/8-16 X 3/4

R400258

€1.39*

#43

Locknut - 3/8-16 flanged top lock

R32128-19

€1.60*

#44

Locknut - 3/8-16 nylon

R3296-39

€2.81*

#45

Screw-hhf

R110-1718

€2.23*

#46

BOLT - HEX WASHER HD

R3234-11

€1.56*

#47

Washer - lock 3/8

R3254-6

€0.13*

#48

Seal

R105-6761

€14.97*

#49

Coupling - lh reel

R93-8826

€176.53*

#50

Weight-end

R105-0171-03

€276.41*

#51

LINK ASSY

R16-9759

€104.76*

#52

BOLT - HEX HD 3/8-16 X 1-1/4

R400264

€1.32*

#53

Shaft-support

R104-1379

€126.80*

#54

WASHER-HARDENED

R93-8806

€3.19*

#55

Bracket - rh hoc front roller

R104-3373-01

€102.75*

#56

Bracket - lh hoc front roller

R104-3375-01

€102.75*

#57

BUSHING - LINK BAR

R94-8945

€5.86*

#58

SPACER

R93-6981

€10.14*

#59

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€2.82*

#60

Bolt - hex hd 3/8-16 x 2

R323-10

€0.99*

#61

Spacer - 1/2 hoc

R63-0070

€3.50*

#62

Shaft-pivot

R104-1392

€146.74*

#63

NUT - SERRATED WASHER

R445722

€1.57*
