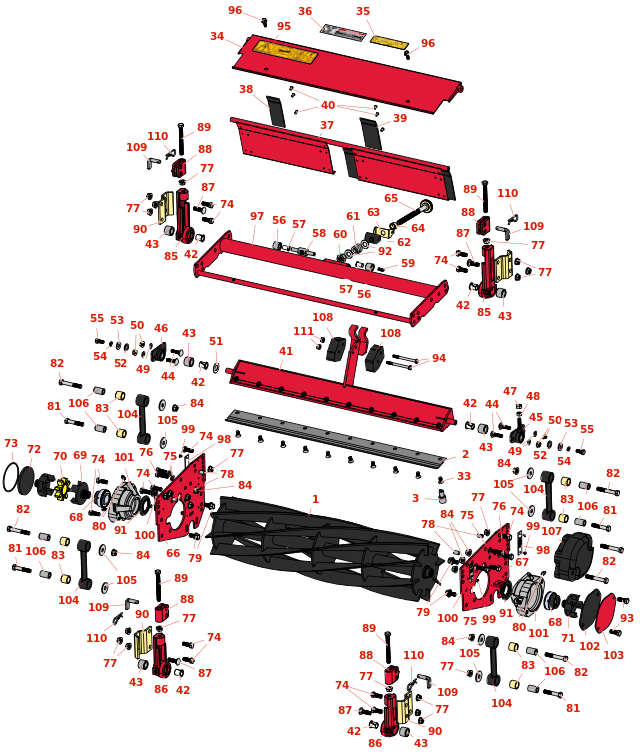

Toro Reelmaster 2000D Reel Bedknife

Choose your drawing here

3 drawings available

Reel - 11 blade fitting for Toro 105-6768

R105-6768

€759.60*

Reel - 5 blade fitting for Toro 93-8839

R94-3631

€637.26*

Reel - 8 blade fitting for Toro 93-8833

R94-3630

€730.65*

Reel - 5 blade fitting for 94-5055

R94-5055

€687.39*

Reel - 8 blade fitting for Toro 94-5054

R94-5054

€789.61*

BEDKNIFE - RAZOR TOOL STEEL - 1/2 X 27 FAIRWAY

R150469

€268.39*

BEDKNIFE - RAZOR TOOL STEEL - FAIRWAY 3/8 x 32

R112-8956

€302.90*

BEDKNIFE- RAZOR TOOL STEEL - 27 HIGH CUT

R112-8910

€171.31*

Bedknife - 27 in unit min. maaihoogte 9.5 mm

R62-5180

€88.85*

Bedknife min. maaihoogte 12.7 mm

R104-1380

€79.18*

Bedknife - 32 in unit min. maaihoogte 9.5 mm

R94-5079

€72.66*

Tool bedknife screw

R51-0880

€81.70*

#33

Screw

R150476

€0.77*

#34

Shield - top incl. safety decal 27 in

R94-3621

€152.25*

#34

Shield - top - fits 32 in units

R94-5053

€176.18*

#35

DECAL - WARNING

R93-6688

€4.61*

#36

DECAL - WARNING

R67-7960

€6.23*

#37

Shield - rear grass fits 27 in units

R93-8849

€97.42*

#37

Shield - rear grass 32 in units

R94-4969

€190.47*

#38

Cover - rubber side

R61-3280

€8.72*

#39

Cover - rubber center

R61-3290

€10.77*

#40

RIVET - GUARD

R700382

€0.77*

#41

Bed bar - fits 32 units

R95-8748

€664.27*

#41

Bed bar - fits 27 units

R95-8739

€596.71*

#42

BUSHING - NYLINER

R56-9520

€2.31*

#43

Bushing - rubber for bed bar / rl

R56-9510

€8.48*

#44

BOLT - CARRIAGE

R3230-2

€1.54*

#45

HOUSING - BED BAR - ADJ. SIDE

R16-9769

€82.51*

#46

Housing - w/bushing for bed bar

R14-4459

€59.13*

#47

LOCKNUT - 5/16-24 CENTER

R444754

€1.05*

#48

NUT - 5/16-24 ZINC

R3219-2

€0.59*

#49

Washer - flat

R3256-74

€1.06*

#50

Locknut - 5/16-18 flanged y/zinc

R104-8300

€0.76*

#51

Washer - nylon - bed bar

R61-1950

€1.78*

#52

Washer

R62-7120

€2.23*

#53

Washer

R3256-56

€0.65*

#54

WASHER - LOCK 5/16 ZINC

R3253-4

€0.23*

#55

BOLT - HEX HD 5/16-18 X 3/4

R322-3

€1.56*

#56

Bushing

R62-5510

€11.71*

#57

Bushing - flanged

R52-2890

€1.25*

#58

PIVOT - 1/2-20 - BED BAR

R57-5260

€36.58*

#60

Locknut - 1/2-20 lh jam

R3296-62

€3.09*

#61

Spring - adjusting handle

R57-5270

€15.39*

#62

Pivot - plastic - bed bar

R93-2892

€7.16*

#63

Arm - spring

R95-8752

€20.34*

#64

Spacer - bed bar assy

R93-2959

€5.66*

#65

HANDLE - BED BAR ADJUSTMENT

R95-8877

€44.82*

#66

PLATE - SIDE REEL RH

R94-3695-01

€91.23*

#67

PLATE - SIDE REEL LH

R94-3697-01

€91.40*

#68

Bearing - reel self aligning

R100-4926

€31.50*

#69

Coupling - rh reel

R93-8825

€177.27*

#70

Spider - reel coupling

R93-8827

€34.03*

#71

Coupling - lh reel

R93-8826

€176.53*

#72

PLUG - PLASTIC SPINDLE HOUSING

R94-2703

€3.05*

#73

O-RING

R353-949

€4.01*

#74

BOLT - HEX HD 3/8-16 X 1 GR5 YZ

R323-6

€0.93*

#75

Washer - lock 3/8

R3254-6

€0.13*

#76

BOLT - HEX HD 3/8-16 X 1-1/4

R400264

€1.32*

#77

Locknut - 3/8-16 nylon

R3296-39

€2.81*

#78

PIN-SPRING

R32121-36

€5.86*

#79

Screw-hhf

R110-1718

€2.23*

#80

Fitting - grease 471214

R302-5

€1.02*

#81

Bolt - hex hd 3/8-16 x 2

R323-10

€0.99*

#82

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€2.82*

#83

BUSHING - LINK BAR

R94-8945

€5.86*

#84

Locknut - 3/8-16 flanged top lock

R32128-19

€1.60*

#85

Bracket - assy - rear roller

R14-4479

€59.54*

#86

Bracket - assy - front roller

R14-4489

€58.15*

#87

Bolt - carriage 3/8-16 x 1-1/4

R3231-25

€1.06*

#88

SUPPORT - HOC

R61-0420

€41.84*

#89

Bolt - roller adjustment

R61-0790

€5.53*

#90

Bracket

R61-0910

€9.93*

#91

Seal

R105-6761

€14.97*

#92

Washer - flat 1/2

R29-8910-01

€0.98*

#93

Bolt - hex hd 3/8-16 x 1

R323-2

€0.73*

#94

BOLT - HEX HD 1/4-20 X 2-1/2 GR5

R400124

€2.20*

#95

DECAL - WARNING

R93-8064

€3.91*

#96

SCREW - HEX WAS HD

R32144-10

€4.03*

#97

REEL FRAME - 32 IN

R95-8755-01

€581.19*

#97

REEL FRAME - 27 IN

R95-8753-01

€402.25*

#98

PLATE - HOC REAR

R61-3800

€9.35*

#99

Rivet - 5/32 x 3/8 pop rivet

R3290-55

€0.57*

#100

PLATE-HOC, FRONT

R61-3790

€7.19*

#101

HOUSING-BEARING

R99-3404

€129.05*

#102

GASKET

R94-5979

€14.40*

#103

COVER-HOLDER, BEARING

R93-6960

€14.44*

#104

LINK ASSY

R16-9759

€104.76*

#105

WASHER-HARDENED

R93-8806

€3.19*

#106

SPACER

R93-6981

€10.14*

#107

Weight-end

R105-0171-03

€276.41*

#108

WEIGHT

R99-3472

€51.59*

#109

SPADE-BENT

R71-3690

€15.31*

#110

PIN-HAIR

R3290-467

€0.65*

#111

Borg Moer - Hole Cutter

R301504

€0.46*
