Toro Greensmaster 3050 Control Pedal

Choose your drawing here

17 drawings available

Shaft - cutting control assy

R106-6395

€182.90*

Mow pedal assy

R106-6394

€92.70*

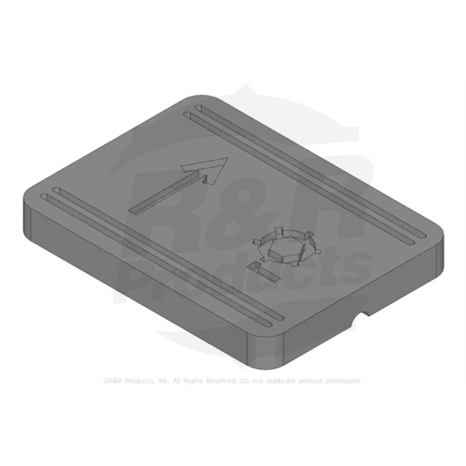

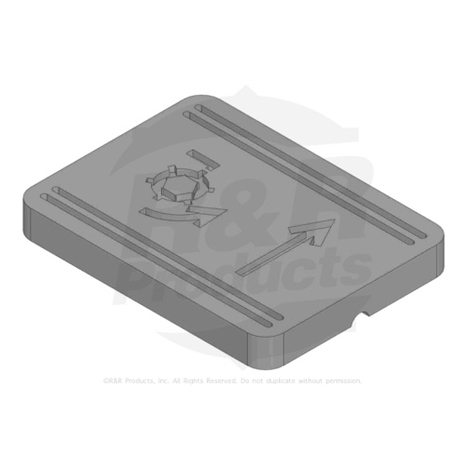

RUBBER FOOT PAD - MOW

R93-7630

€12.22*

RUBBER FOOT PAD - LIFT

R93-7631

€12.54*

PIN - SPRING ROLL 5/32 X 1-1/2

R32121-35

€1.88*

BEARING

R27-2320

€24.20*

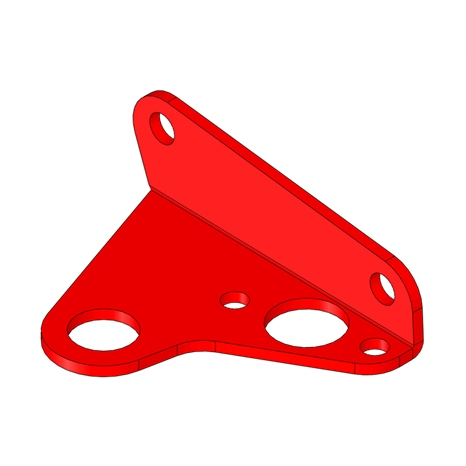

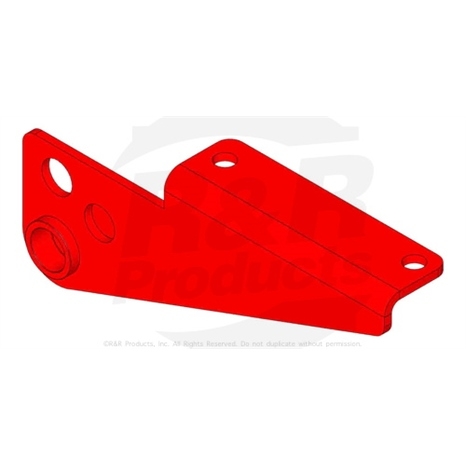

BRACKET - RED

R88-9630-01

€80.26*

BRACKET - RED

R88-9640-01

€80.26*

CUTTING LEVER - RED

R49-6200-01

€81.75*

#10

Spanstift

RDM-321216

€0.46*

#10

PIN - ROLL 3/16 X 1-1/4

R32121-6

€0.80*

#11

Bolt - flanged serrated hex hd 3/8-16 x 3/4

R3234-1

€2.18*

#12

LOCKNUT - 3/8-16 NYLON JAM

R3296-59

€1.55*

#13

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€0.33*

#14

RUBBER FOOT PAD - BRAKE

R93-7629

€21.05*

#15

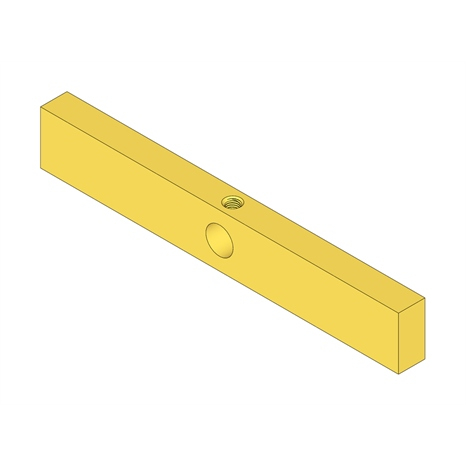

Strap - shaft

R10-8100-01

€46.42*

#16

PIN - CLEVIS 5/16 X 1-1/8

R283-61

€1.34*

#17

PIN - COTTER 1/8 X 5/8

R11M7012

€0.53*

#18

YOKE

R282-2

€24.53*

#19

NUT - JAM - 5/16-24

R3220-2

€0.73*

#20

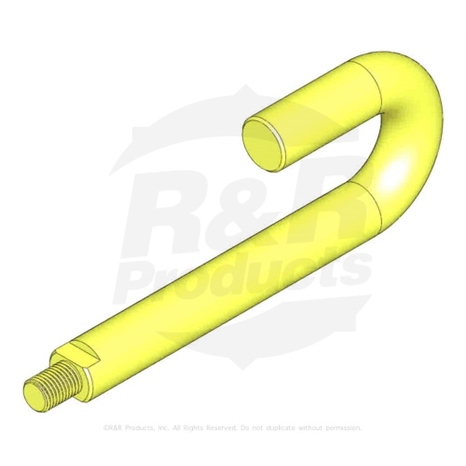

ROD - ADJUSTMENT

R27-2270

€38.48*

#21

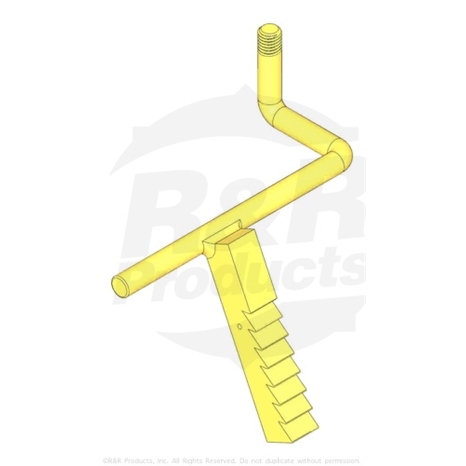

CONTROL ROD - CUTTING LEVER

R49-5430

€108.97*

#22

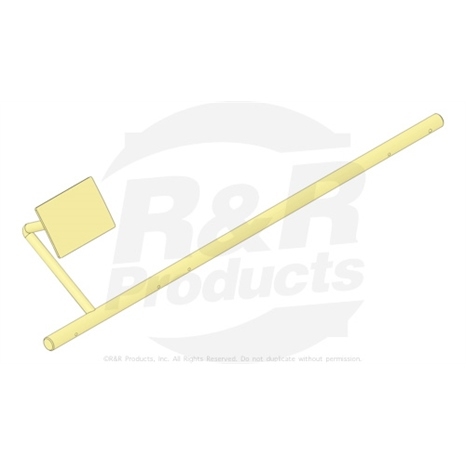

SHAFT - BRAKE ASSY

R83-0160

€234.72*

#23

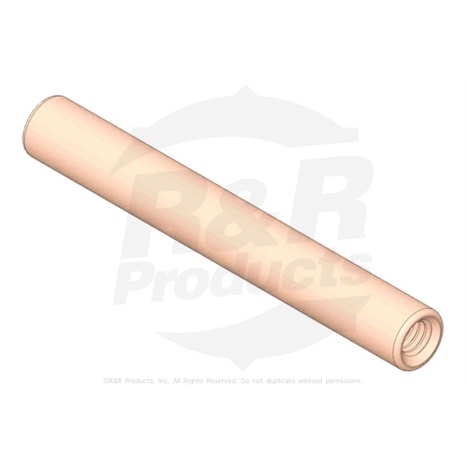

PIN - MOW LOCKOUT

R93-9903

€77.06*

#24

Bushing

R3-1506

€4.71*

#25

LOCKOUT BRACKET - RED

R93-9901-01

€138.68*

#26

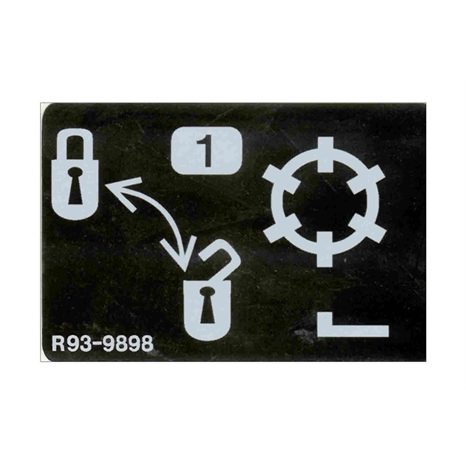

DECAL - LOCK

R93-9898

€9.22*

#27

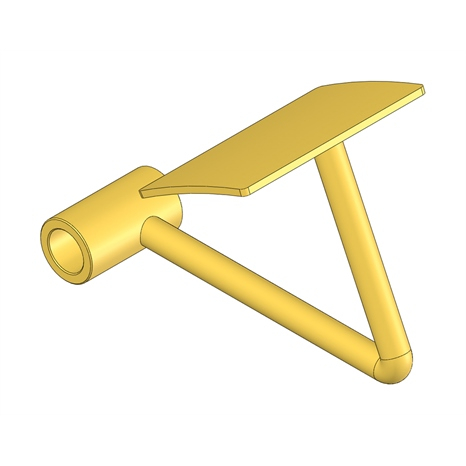

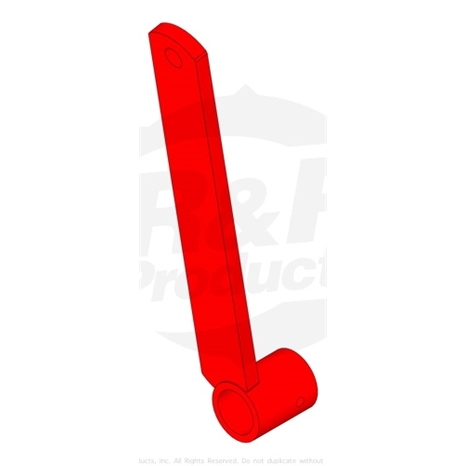

MOW ARM - LOCKOUT

R93-9904

€32.92*

#28

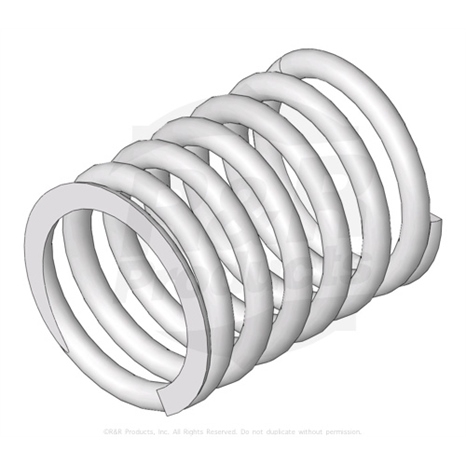

SPRING - COMPRESSION - LOCKOUT PIN

R76-0410

€7.96*

#30

BOLT - HEX HD 3/8-16 X 2-3/4 GR5

R323-13

€2.26*

#31

Fitting - grease 471214

R302-5

€1.02*

#32

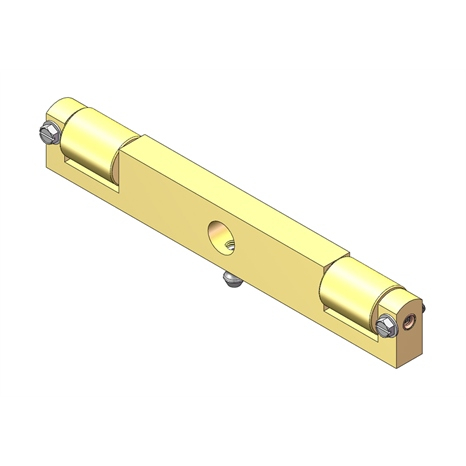

Lift - pivot assy

R150273

€183.24*

#33

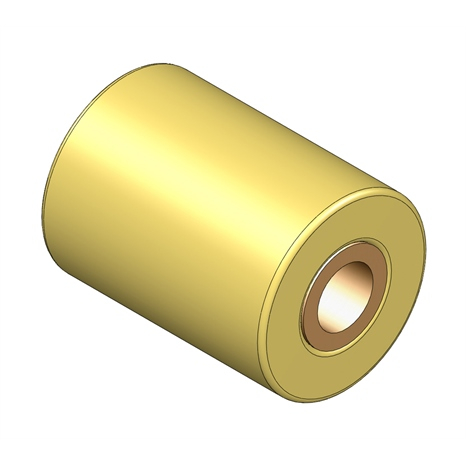

Roller assy - lift pivot

R150274

€22.65*

#34

BOLT - HEX HD 8-32 X 5/8

R150425

€0.61*

#35

PIN - DOWELL - REMOVABLE

R150276

€16.06*

#37

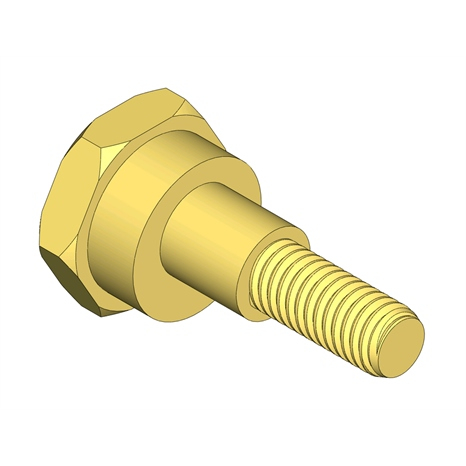

BOLT - SHOULDER ECCENTRIC

R83-2590

€61.18*

#38

SPRING - PIVOT - LIFT

R83-0080

€28.12*

#40

LIFT - PIVOT

R106-6396

€90.16*

#43

Washer - flat 1/4 yellow

R3256-22

€0.36*

#44

Hinge - upper

R10-7880

€18.86*

#46

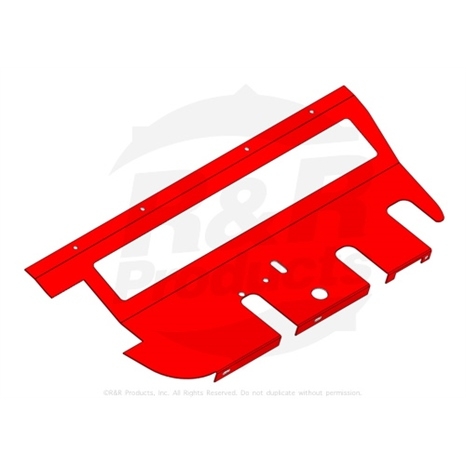

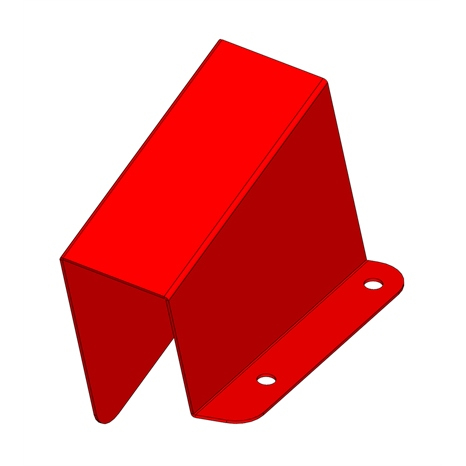

ROD GUARD - RED

R49-6110-01

€98.98*

#47

Footrest plate - red

R83-0640-01

€179.89*

#48

PAD - ANTI-SKID FOOT REST

R49-6120

€55.81*

#49

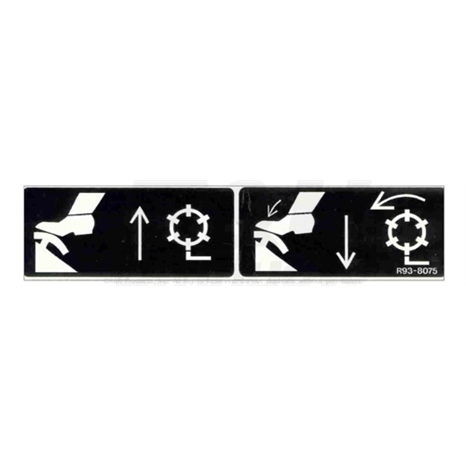

DECAL - MOW/LIFT

R93-8075

€9.35*

#50

BOLT - CARRIAGE 1/4-20 X 5/8

R3229-11

€0.71*

#51

SCREW - BUTTON HD SOC CS 1/4-20 X 5/8

R3274-31

€1.78*

#52

Washer - flat 1/4

R453023

€0.36*

#53

LATCH ASSY

R100-9819

€188.97*

#54

BOLT - HEX HD 1/4-20 X 5/8

R400106

€0.70*

#55

WASHER - LOCK 1/4

R3253-3

€0.15*

#56

PARKING LATCH - BRAKE

R10-7850

€150.60*

#57

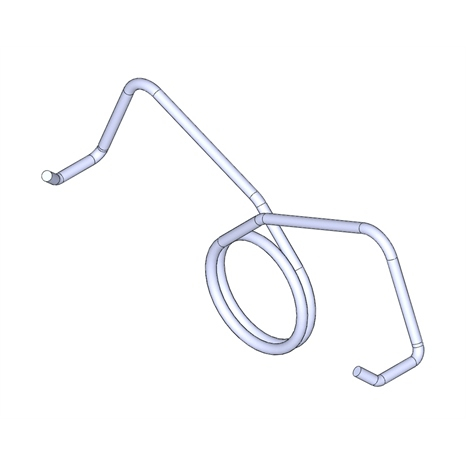

Spring - torsion - brake latch

R10-8140

€21.18*

#58

NUT - SPECIAL HF FLANGED

R32141-111

€6.30*

#59

HINGE-LOWER

R95-1629

€15.91*

#60

Borg Moer - Hole Cutter

R301504

€0.46*

#61

PLATE - COVER - LH

R83-0200-01

€67.55*

#62

BOLT - HEX HD 1/4-20 X 3/4

R321-4

€0.86*

#63

NUT - 1/4-20 FLANGED SERR

R32128-33

€0.92*

#64

DECAL - PARKING BRAKE

R93-8062

€7.62*

#65

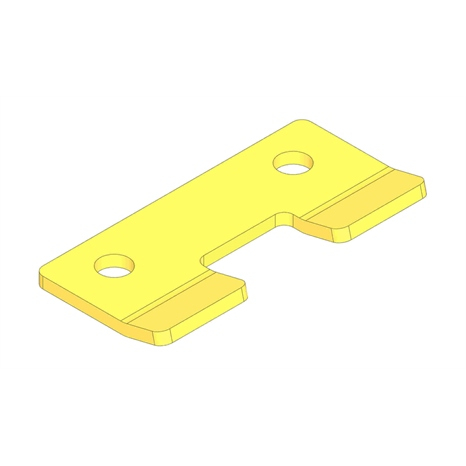

PLATE - SWITCH - REED

R100-9821

€34.93*

#66

ENSOR

R104-2057

€190.96*

#67

Light - led - 8 bulb flood

R112-9177

€208.97*
