Blade, right model
| Product number: | 808-SIM-04R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Dücker: | 912200881 |
|---|---|
| Sicma (Miglianico): | 4811281 |
| Forigo-Roteritalia: | 1060010 |

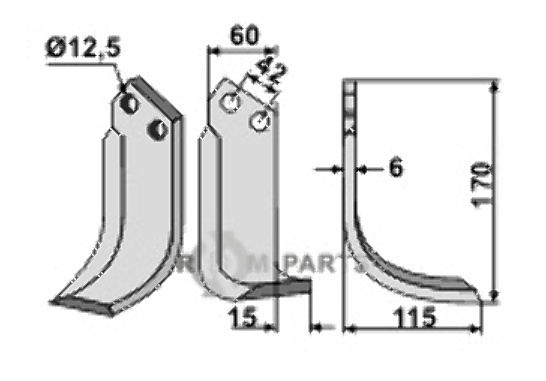

Technical details
| Product type: | Milling Knife |
|---|---|
| Suitable for brand: | Sicma Miglianico |
| Wideness: | 60 mm |
| Lengte: | 170 mm |
| Material Thickness: | 6 mm |
| Bolt hole diameter: | 12.5 mm |
| Boring: | 12.5 mm |
| Hole spacing: | 42 mm |
| Mounting: | Right |
| Thickness: | 6 mm |
| Weight: | 0.6 kg |
| Working widt: | 115 mm |
4811281 sicma (miglianico) 912200881 blades for the sicma miglianico machine
4811281 sicma (miglianico) 912200881 tiller blades fit on the rotary tillers of sicma miglianico. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-SIM-04R, which is comparable with the original.
Mounting the blades
The 4811281 sicma (miglianico) 912200881 and our fitting alternative 808-SIM-04R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-SIM-04R should therefore be placed on the right side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.
Specifications of the 4811281 sicma (miglianico) 912200881 and the 808-SIM-04R
The Blade, right model from sicma miglianico is just as long as the 808-SIM-04R from RDM Parts. The product is thus 170 millimeter long and is a fitting replacement for your machinery. The width of the 808-SIM-04R is equal to the original. The parts is equal in width, 60 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, right model with part number 808-SIM-04R has a thickness of 6 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The hole spacing of Blade, right model is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from sicma miglianico. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, right model 808-SIM-04R has a hole spacing of 42 millimeter. The 808-SIM-04R and the original with are mounted with a mounting hole of 12,5 millimeter. These holes are used to mount the Blade, right model to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-SIM-04R fit?
Comparable to the original with number 4811281 sicma (miglianico) 912200881 the 808-SIM-04R fits for the machines of sicma miglianico. The 808-SIM-04R is fitting for these parts: Dücker 912200881, Sicma (Miglianico) 4811281, and Forigo-Roteritalia 1060010.
