Rotary tine, left model fitting for Renter L.M.T. RL

RL rotary harrow tines for the renter l m t machine

A good alternative for your RL Rotary tine, left model fitting for Renter L.M.T. RL is the RDM Parts 808-REN-03L.

Mounting rotary harrow tines

Mounting material like bolts is necessary to attach the parts to the machine. It is good to know that not every tine is universally mountable on a machine. The tines have a rotation direction which is based on the placement of the blades edge. In case of the RL and our fitting alternative this rotary harrow tine fits on the left side.

Specifications of the RL and the 808-REN-03L

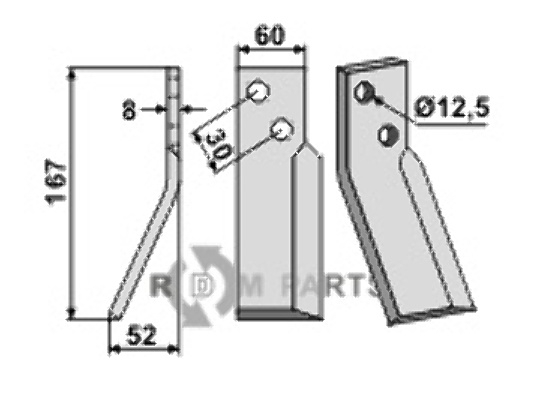

RDM Parts also has the 808-REN-03L Rotary tine, left model fitting for Renter L.M.T. RL with an equal length as the original. The length of the part is 167 millimeter and this makes it a fitting alternative for the original. The width of the 808-REN-03L is equal to the original. This Rotary tine, left model fitting for Renter L.M.T. RL is 60 millimeter in width. The thickness of Rotary tine, left model fitting for Renter L.M.T. RL indicates something about the wear and tear of a part, but also if this will fit on your machinery. The RL from renter l m t has a thickness of 8 millimeter. Since this is equal to the parts of RDM Parts, the 808-REN-03L fits as an alternative for the original. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from renter l m t Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Rotary tine, left model fitting for Renter L.M.T. RL 808-REN-03L is 30 millimeter. This 808-REN-03L Rotary tine, left model fitting for Renter L.M.T. RL has a mounting hole of 12,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-REN-03L fit?

Comparable to the original with number RL the 808-REN-03L fits for the machines of renter l m t The 808-REN-03L is fitting for these parts: Rapid 14000407, and Renter L.M.T. RL.

Do you have any questions about the RL van renter l m t

You can contact our product specialists with questions about the 808-REN-03L or RL RDM Parts is dedicated to finding the answers to your questions.
