Blade, left model fitting for Nibbi Bruno EN.T519

EN.T519 blades for the nibbi bruno machine

nibbi bruno tillers use EN.T519 tiller blades. If you need an alternative, then you can use the 808-NIB-03L, which is a fitting solution for your tiller.

Mounting the tiller blades

To mount the 808-NIB-03L and the original EN.T519 you need to use assembly materials like a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-NIB-03L and the original counterpart, they are placed at the left side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the EN.T519 and the 808-NIB-03L

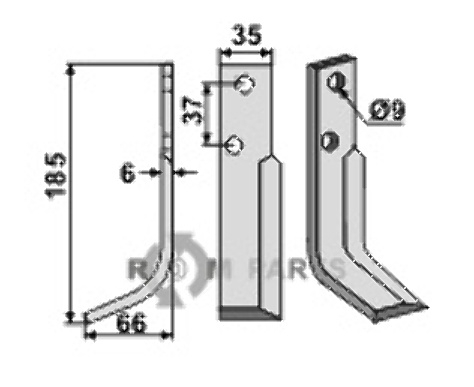

The original part for Blade, left model fitting for Nibbi Bruno EN.T519 has a comparable length as our fitting original with number 808-NIB-03L. With its 185 millimeter it is a good alternative to the original. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. This Blade, left model fitting for Nibbi Bruno EN.T519 is 35 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Blade, left model fitting for Nibbi Bruno EN.T519 with part number 808-NIB-03L has a thickness of 6 millimeter. So the part from RDM Parts with number 808-NIB-03L as an alternative for the machine. The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the nibbi bruno machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, left model fitting for Nibbi Bruno EN.T519 808-NIB-03L is 37 millimeter. The 808-NIB-03L and the original with are mounted with a mounting hole of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-NIB-03L fit?

Like the original with number EN.T519, the 808-NIB-03L Blade, left model fitting for Nibbi Bruno EN.T519 fits on the machines of nibbi bruno. The 808-NIB-03L is fitting for these parts: Kuhn 6.060.004, and Nibbi Bruno EN.T519.
