Blade, right model fitting for Maschio / Gaspardo 19100417

19100417 blades for the maschio gaspardo machine

19100417 tiller blades fit on the rotary tillers of maschio gaspardo. For these machines, RDM Parts has a fitting alternative in the 808-MAS-01R blades.

Mounting the blades

The 19100417 and our fitting alternative 808-MAS-01R are secured in place with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-MAS-01R is pretty much the same as the original and is placed on the right side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the 19100417 and the 808-MAS-01R

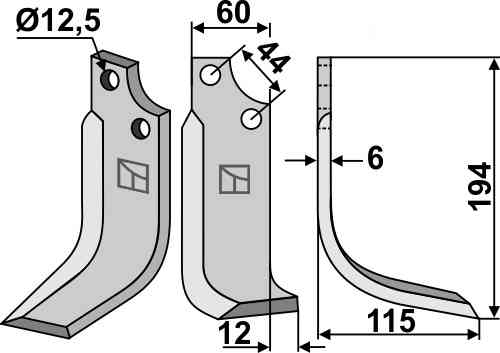

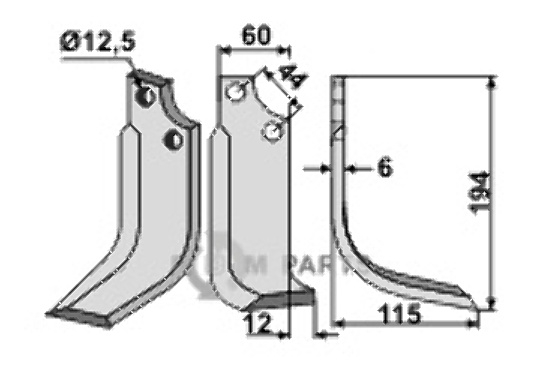

The length of the Blade, right model fitting for Maschio / Gaspardo 19100417 with RDM number 808-MAS-01R is equal to the length of the original part. The product is thus 194 millimeter long and is a fitting replacement for your machinery. The width of the 808-MAS-01R is equal to the original. This Blade, right model fitting for Maschio / Gaspardo 19100417 is 60 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. 6 millimeter thick is the Blade, right model fitting for Maschio / Gaspardo 19100417 from maschio gaspardo with the original part number 19100417. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-MAS-01R from RDM Parts is equal to the original with number 19100417 and the distance measures 44 millimeter. The mounting holes of the 808-MAS-01R have a diameter of 12,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-MAS-01R fit?

the 808-MAS-01R and 19100417 fit on maschio gaspardo machinery. Use the 808-MAS-01R as a fitting replacement for: Howard 73955/A, and Maschio / Gaspardo 19100417.
