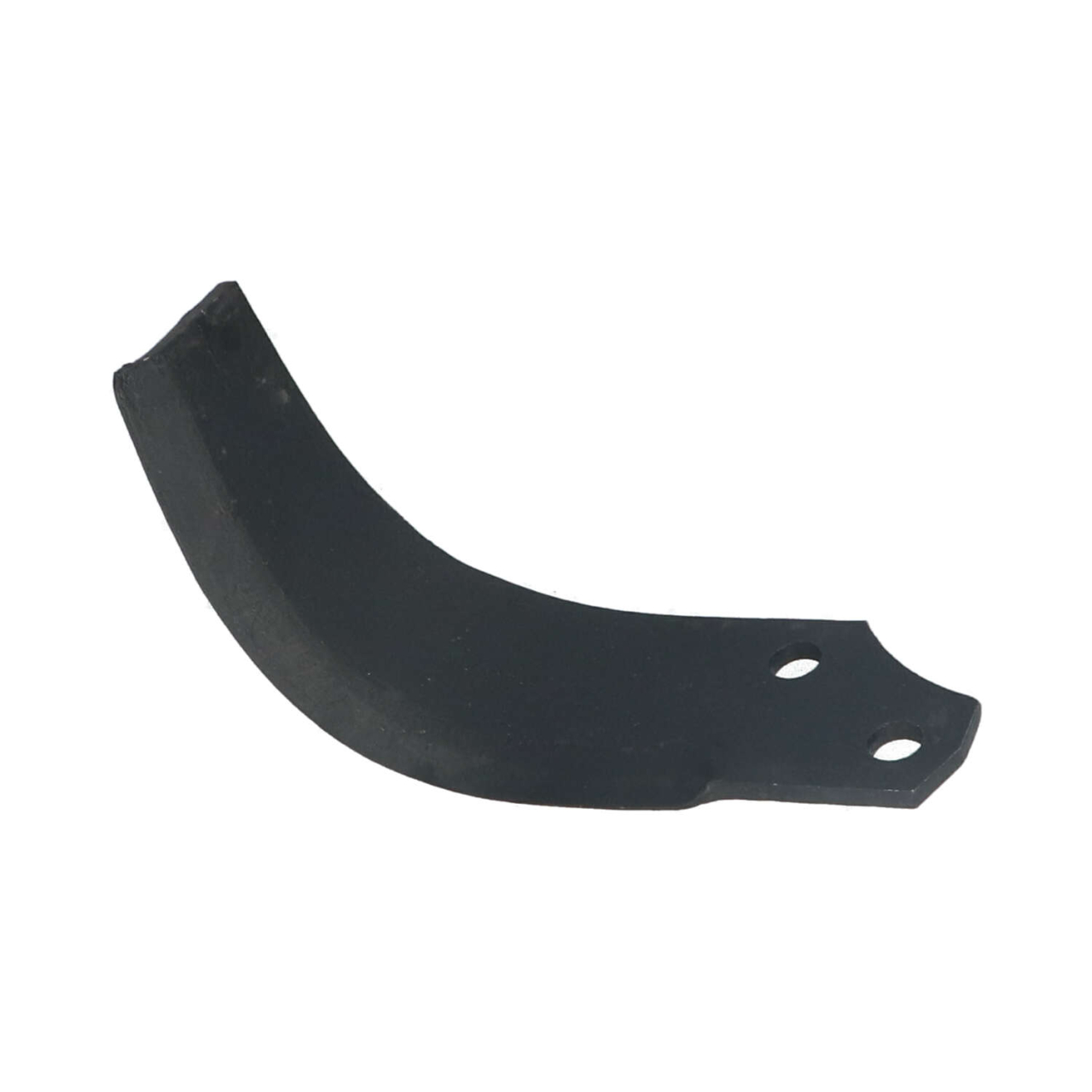

Blade, left model fitting for Maschio / Gaspardo 19100418

19100418 blades for the maschio gaspardo machine

The 19100418 is a blade for a rotary tiller from maschio gaspardo. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-MAS-01L.

Mounting the blades

Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-MAS-01L is pretty much the same as the original and is placed on the left side. Blades are placed in this alternating manner to optimally plough through the soil.

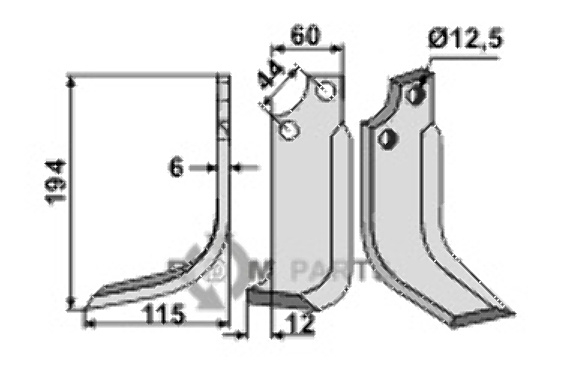

Specifications of the 19100418 and the 808-MAS-01L

The length of the Blade, left model fitting for Maschio / Gaspardo 19100418 with RDM number 808-MAS-01L is equal to the length of the original part. The length of the part is 194 millimeter and this makes it a fitting alternative for the original. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. This Blade, left model fitting for Maschio / Gaspardo 19100418 is 60 millimeter in width. The thickness of the Blade, left model fitting for Maschio / Gaspardo 19100418 is important for the way the part fits on the machine. The Blade, left model fitting for Maschio / Gaspardo 19100418 with part number 808-MAS-01L has a thickness of 6 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Maschio / Gaspardo 19100418. With these mounting holes the part can be attached to the machine from maschio gaspardo. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, left model fitting for Maschio / Gaspardo 19100418 808-MAS-01L has a hole spacing of 44 millimeter. The 808-MAS-01L and the original with are mounted with a mounting hole of 12,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-MAS-01L fit?

Like the original with number 19100418, the 808-MAS-01L Blade, left model fitting for Maschio / Gaspardo 19100418 fits on the machines of maschio gaspardo. The 808-MAS-01L is fitting for these parts: Herder 95.722.002, and Maschio / Gaspardo 19100418.
