Blade, right model fitting for Krone 107 083 0

107 083 0 blades for the krone machine

krone tillers use 107 083 0 tiller blades. If you need an alternative, then you can use the 808-KRO-05R, which is a fitting solution for your tiller.

Mounting the blades

Generally speaking, tiller blades like the 107 083 0 and 808-KRO-05R are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-KRO-05R should therefore be placed on the right side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the 107 083 0 and the 808-KRO-05R

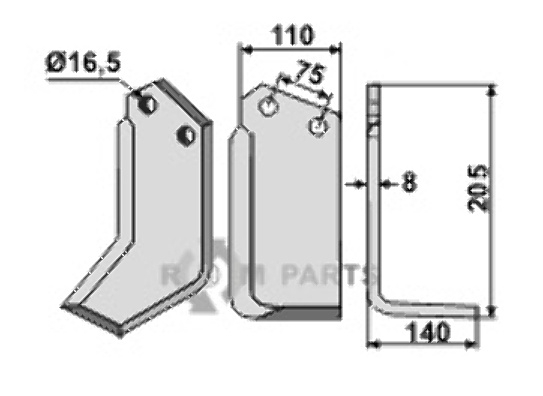

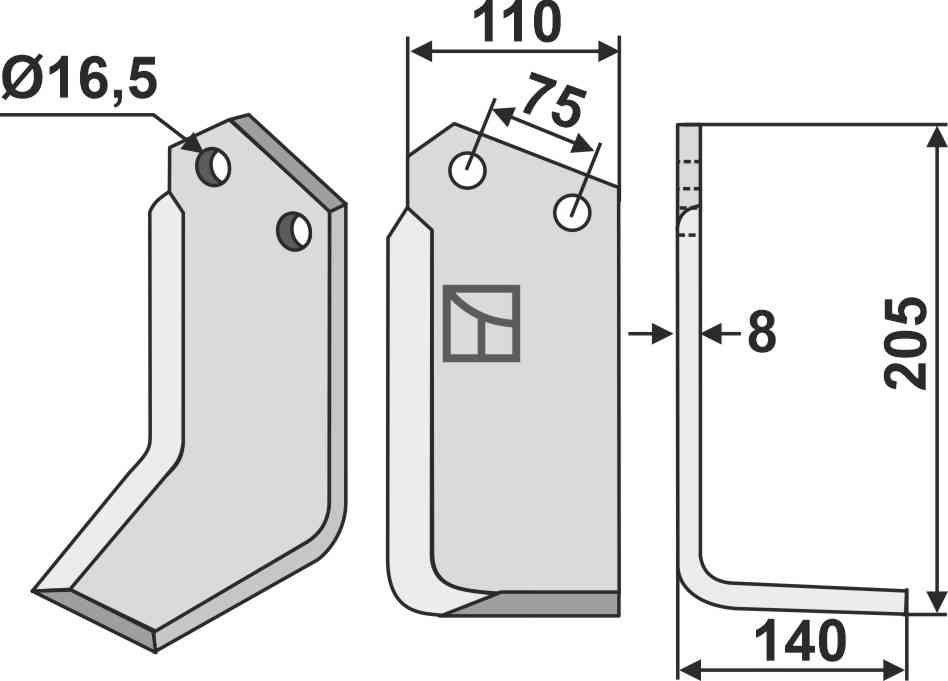

The Blade, right model fitting for Krone 107 083 0 from krone is just as long as the 808-KRO-05R from RDM Parts. The length of the part is 205 millimeter and this makes it a fitting alternative for the original. The width of the 808-KRO-05R is equal to the original. The width measures 110 millimeter. The thickness of the Blade, right model fitting for Krone 107 083 0 is important for the way the part fits on the machine. The original Blade, right model fitting for Krone 107 083 0 from krone is 8 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Krone 107 083 0. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, right model fitting for Krone 107 083 0 808-KRO-05R is 75 millimeter. The mounting holes of the 808-KRO-05R have a diameter of 16,5 millimeter. These holes are used to mount the Blade, right model fitting for Krone 107 083 0 to the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-KRO-05R fit?

Like the original with number 107 083 0, the 808-KRO-05R Blade, right model fitting for Krone 107 083 0 fits on the machines of krone. Use the 808-KRO-05R as a fitting replacement for: Maschio 3400405, and Krone 107 083 0.
