Blade, left model fitting for Howard 9862

Product information "Blade, left model fitting for Howard 9862"

9862 blades for the howard machine

The 9862 is a blade for a rotary tiller from howard. If you need an alternative, then you can use the 808-HOW-21L, which is a fitting solution for your tiller.

Mounting the blades

The 9862 and our fitting alternative 808-HOW-21L are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-HOW-21L is pretty much the same as the original and is placed on the left side. Blades are placed in this alternating manner to optimally plough through the soil.

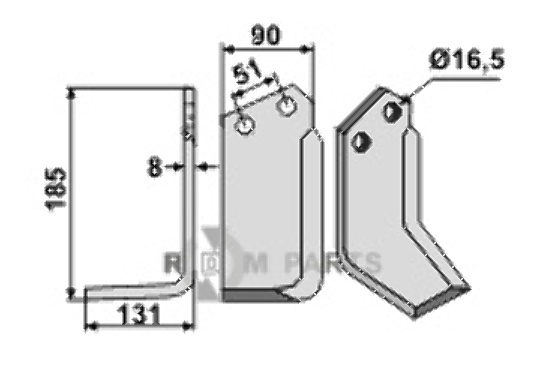

Specifications of the 9862 and the 808-HOW-21L

RDM Parts also has the 808-HOW-21L Blade, left model fitting for Howard 9862 with an equal length as the original. The product is thus 185 millimeter long and is a fitting replacement for your machinery. The width of the 808-HOW-21L is equal to the original. The parts is equal in width, 90 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Blade, left model fitting for Howard 9862 with part number 808-HOW-21L has a thickness of 8 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from howard. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, left model fitting for Howard 9862 808-HOW-21L is 51 millimeter. The 808-HOW-21L and the original with are mounted with a mounting hole of 16,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-HOW-21L fit?

Like the original with number 9862, the 808-HOW-21L Blade, left model fitting for Howard 9862 fits on the machines of howard. The 808-HOW-21L is fitting for these parts: Bomford 71.913.20, and Howard 9862.

.
Show more Show less

Properties

Product number: 808-HOW-21L
Manufacturer Industriehof
Replaces original
Bomford: 71.913.20
Howard: 9862
Technical details
Suitable for brand: Howard
Product type: Milling Knife
Bolt hole diameter: 16.5 mm
Boring: 16.5 mm
Hole spacing: 51 mm
Material Tickness: 8 mm
Mounting: Left
Thickness: 8 mm
Wideness: 90 mm
Working widt: 131 mm
