Rotary tine - right model fitting for Celli 422526
| Product number: | 808-CEL-15R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| M.A.B. Bocchini: | 2523 |
|---|---|
| Celli: | 422526 |
Technical details
| Suitable for brand: | Celli |
|---|---|
| Product type: | Rotoregtanden |
| Bolt hole diameter: | 15 mm |
| Boring: | 15 mm |
| Hole spacing: | 45 mm |
| Material Tickness: | 10 mm |
| Mounting: | Right |
| Thickness: | 10 mm |
| Wideness: | 50 mm |
422526 rotary harrow tines for the celli machine
A good alternative for your 422526 Rotary tine - right model fitting for Celli 422526 is the RDM Parts 808-CEL-15R.
Mounting rotary harrow tines
Usually a part is fixed to a machine with a bolt. It is good to know that not every tine is universally mountable on a machine. Rotary harrow tines rotate either left or recht. The 422526 and the alternative that RDM Parts offers fits on the right side.
Specifications of the 422526 and the 808-CEL-15R

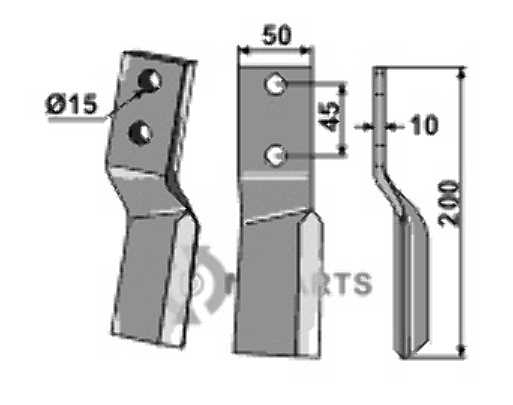

The length of the Rotary tine - right model fitting for Celli 422526 with RDM number 808-CEL-15R is equal to the length of the original part. The Rotary tine - right model fitting for Celli 422526 is 200 millimeter long. The original and the part from RDM Parts 808-CEL-15R are equal in width. The parts is equal in width, 50 millimeter to be exact. The thickness of the Rotary tine - right model fitting for Celli 422526 is important for the way the part fits on the machine. 10 millimeter thick is the Rotary tine - right model fitting for Celli 422526 from celli with the original part number 422526. The alternative that is offered by RDM Parts with number 808-CEL-15R has an equal thickness and is thus a suitable alternative for the original.
The hole spacing measures the distance between the two mounting holes on the Rotary tine - right model fitting for Celli 422526. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-CEL-15R from RDM Parts is equal to the original with number 422526 and the distance measures 45 millimeter. This 808-CEL-15R Rotary tine - right model fitting for Celli 422526 has a mounting hole of 15 millimeter. These holes are used to mount the Rotary tine - right model fitting for Celli 422526 to the machine. Some parts have two or more mounting holes to fix it to the machine.On what machines does the 808-CEL-15R fit?
Comparable to the original with number 422526 the 808-CEL-15R fits for the machines of celli. The 808-CEL-15R is fitting for these parts: M.A.B. Bocchini 2523, and Celli 422526.
Do you have any questions about the 422526 van celli
You can contact our product specialists with questions about the 808-CEL-15R or 422526 We like to help you find a suiting answer.
€11.11*
- Free delivery, from €450 (excluding VAT).
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
422526 rotary harrow tines for the celli machine
A good alternative for your 422526 Rotary tine - right model fitting for Celli 422526 is the RDM Parts 808-CEL-15R.
Mounting rotary harrow tines
Usually a part is fixed to a machine with a bolt. It is good to know that not every tine is universally mountable on a machine. Rotary harrow tines rotate either left or recht. The 422526 and the alternative that RDM Parts offers fits on the right side.
Specifications of the 422526 and the 808-CEL-15R
The length of the Rotary tine - right model fitting for Celli 422526 with RDM number 808-CEL-15R is equal to the length of the original part. The Rotary tine - right model fitting for Celli 422526 is 200 millimeter long. The original and the part from RDM Parts 808-CEL-15R are equal in width. The parts is equal in width, 50 millimeter to be exact. The thickness of the Rotary tine - right model fitting for Celli 422526 is important for the way the part fits on the machine. 10 millimeter thick is the Rotary tine - right model fitting for Celli 422526 from celli with the original part number 422526. The alternative that is offered by RDM Parts with number 808-CEL-15R has an equal thickness and is thus a suitable alternative for the original.
The hole spacing measures the distance between the two mounting holes on the Rotary tine - right model fitting for Celli 422526. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-CEL-15R from RDM Parts is equal to the original with number 422526 and the distance measures 45 millimeter. This 808-CEL-15R Rotary tine - right model fitting for Celli 422526 has a mounting hole of 15 millimeter. These holes are used to mount the Rotary tine - right model fitting for Celli 422526 to the machine. Some parts have two or more mounting holes to fix it to the machine.On what machines does the 808-CEL-15R fit?
Comparable to the original with number 422526 the 808-CEL-15R fits for the machines of celli. The 808-CEL-15R is fitting for these parts: M.A.B. Bocchini 2523, and Celli 422526.
Do you have any questions about the 422526 van celli
You can contact our product specialists with questions about the 808-CEL-15R or 422526 We like to help you find a suiting answer.
