Blade, right model fitting for Brumital-Agris 20809003
| Product number: | 808-BRU-10R |
|---|---|
| Manufacturer | RDM Parts |
Replaces original
| Brumital-Agris: | 20809003 |
|---|
Technical details
| Product type: | Milling Knife |
|---|---|
| Suitable for brand: | Brumital Agris |
| Wideness: | 40 mm |
| Length: | 220 mm |
| Material Thickness: | 6 mm |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 70 mm |
| Mounting: | Right |
| Thickness: | 6 mm |
| Working widt: | 70 mm |
20809003 blades for the brumital agris machine
The 20809003 is a blade for a rotary tiller from brumital agris. For these machines, RDM Parts has a fitting alternative in the 808-BRU-10R blades.
Mounting the blades
Tiller blades are fastened with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-BRU-10R and the original counterpart, they are placed at the right side. The tiller blades are mounted in an alternating way.

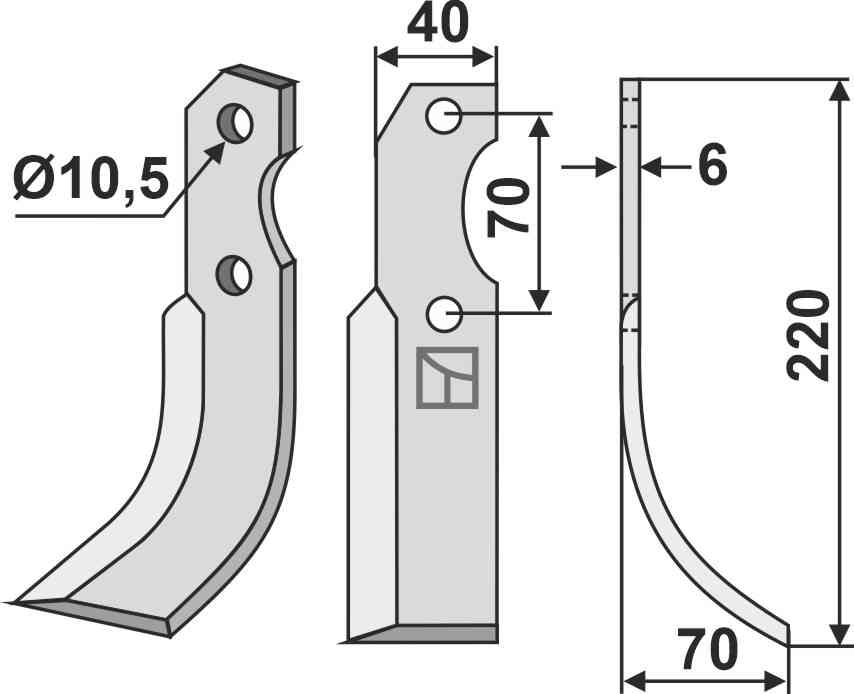

Specifications of the 20809003 and the 808-BRU-10R
RDM Parts also has the 808-BRU-10R Blade, right model fitting for Brumital-Agris 20809003 with an equal length as the original. The Blade, right model fitting for Brumital-Agris 20809003 is 220 millimeter long. The width of the 808-BRU-10R is equal to the original. The width measures 40 millimeter. The thickness of Blade, right model fitting for Brumital-Agris 20809003 indicates something about the wear and tear of a part, but also if this will fit on your machinery. 6 millimeter thick is the Blade, right model fitting for Brumital-Agris 20809003 from brumital agris with the original part number 20809003. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, right model fitting for Brumital-Agris 20809003 808-BRU-10R has a hole spacing of 70 millimeter. The mounting holes of the 808-BRU-10R have a diameter of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-BRU-10R fit?
the 808-BRU-10R and 20809003 fit on brumital agris machinery. The 808-BRU-10R is fitting for these parts: Brumital-Agris 20809003.
.€5.13 * €5.13
€5.13 incl. VAT
€5.13*
Create label
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days (When in stock)
- Express delivery, within 24 hours (When in stock)
- Discounts, for companies
Product information "Blade, right model fitting for Brumital-Agris 20809003"
20809003 blades for the brumital agris machine
The 20809003 is a blade for a rotary tiller from brumital agris. For these machines, RDM Parts has a fitting alternative in the 808-BRU-10R blades.
Mounting the blades
Tiller blades are fastened with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-BRU-10R and the original counterpart, they are placed at the right side. The tiller blades are mounted in an alternating way.
Specifications of the 20809003 and the 808-BRU-10R
RDM Parts also has the 808-BRU-10R Blade, right model fitting for Brumital-Agris 20809003 with an equal length as the original. The Blade, right model fitting for Brumital-Agris 20809003 is 220 millimeter long. The width of the 808-BRU-10R is equal to the original. The width measures 40 millimeter. The thickness of Blade, right model fitting for Brumital-Agris 20809003 indicates something about the wear and tear of a part, but also if this will fit on your machinery. 6 millimeter thick is the Blade, right model fitting for Brumital-Agris 20809003 from brumital agris with the original part number 20809003. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, right model fitting for Brumital-Agris 20809003 808-BRU-10R has a hole spacing of 70 millimeter. The mounting holes of the 808-BRU-10R have a diameter of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-BRU-10R fit?
the 808-BRU-10R and 20809003 fit on brumital agris machinery. The 808-BRU-10R is fitting for these parts: Brumital-Agris 20809003.
