Blade, left model fitting for Brumital-Agris 20809004

20809004 blades for the brumital agris machine

brumital agris tiller blades 20809004 fit on the machines of the same brand. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-BRU-10L.

Mounting the blades

The 20809004 and our fitting alternative 808-BRU-10L are secured in place with a bolt. The rotation direction is also of importance when the tiller blade is mounted. In case of the 808-BRU-10L and the original counterpart, they are placed at the left side. Blades are placed in this alternating manner to optimally plough through the soil.

Specifications of the 20809004 and the 808-BRU-10L

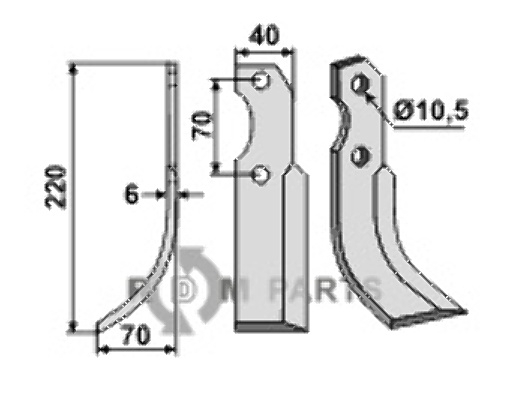

The original part for Blade, left model fitting for Brumital-Agris 20809004 has a comparable length as our fitting original with number 808-BRU-10L. The length of the part is 220 millimeter and this makes it a fitting alternative for the original. The width of the 808-BRU-10L is equal to the original. The width measures 40 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, left model fitting for Brumital-Agris 20809004 with part number 808-BRU-10L has a thickness of 6 millimeter. The alternative that is offered by RDM Parts with number 808-BRU-10L has an equal thickness and is thus a suitable alternative for the original. The hole spacing of Blade, left model fitting for Brumital-Agris 20809004 is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from brumital agris. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, left model fitting for Brumital-Agris 20809004 808-BRU-10L is 70 millimeter. This 808-BRU-10L Blade, left model fitting for Brumital-Agris 20809004 has a mounting hole of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-BRU-10L fit?

Like the original with number 20809004, the 808-BRU-10L Blade, left model fitting for Brumital-Agris 20809004 fits on the machines of brumital agris. The 808-BRU-10L is fitting for these parts: Kongskilde 73000106138V, and Brumital-Agris 20809004.
