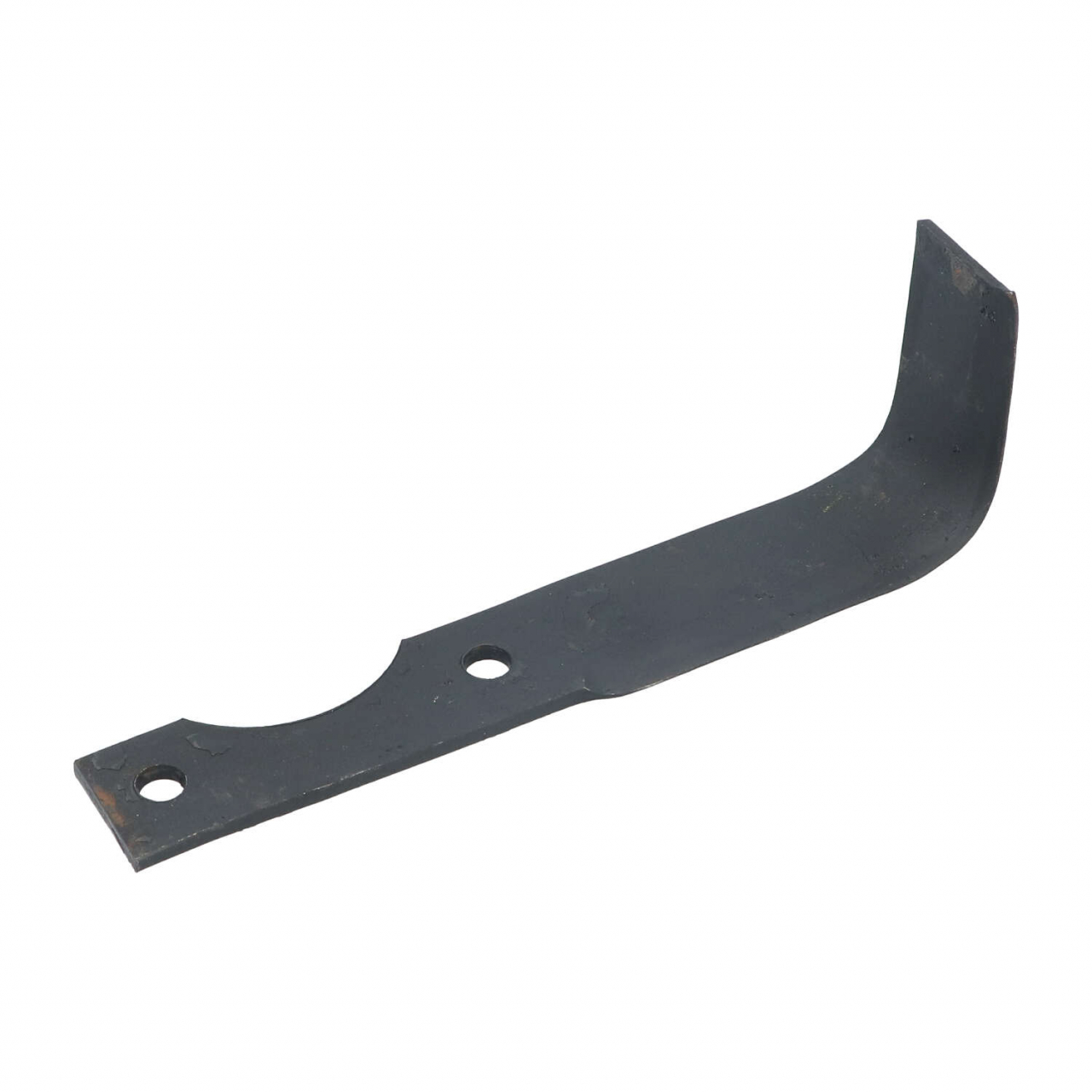

Blade, right model fitting for Agria 1250 172 23

1250 172 23 blades for the agria machine

agria tiller blades 1250 172 23 fit on the machines of the same brand. If you need an alternative, then you can use the 808-AGR-13R, which is a fitting solution for your tiller.

Mounting the tiller blades

To mount the 808-AGR-13R and the original 1250 172 23 you need to use assembly materials like a bolt. The rotation direction is also of importance when the tiller blade is mounted. The 808-AGR-13R is pretty much the same as the original and is placed on the right side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

Specifications of the 1250 172 23 and the 808-AGR-13R

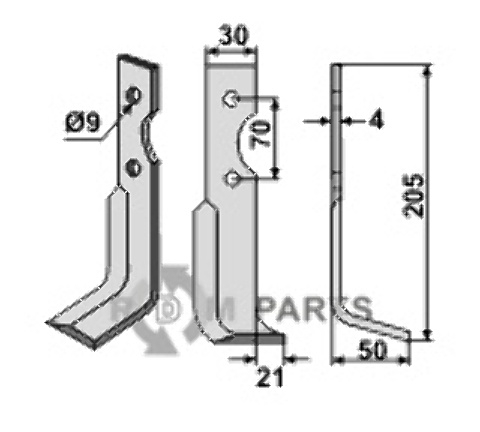

The Blade, right model fitting for Agria 1250 172 23 from agria is just as long as the 808-AGR-13R from RDM Parts. With its 205 millimeter it is a good alternative to the original. The original and the part from RDM Parts 808-AGR-13R are equal in width. The parts is equal in width, 30 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. 4 millimeter thick is the Blade, right model fitting for Agria 1250 172 23 from agria with the original part number 1250 172 23. Since this is equal to the parts of RDM Parts, the 808-AGR-13R fits as an alternative for the original. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Agria 1250 172 23. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-AGR-13R from RDM Parts is equal to the original with number 1250 172 23 and the distance measures 70 millimeter. The mounting holes of the 808-AGR-13R have a diameter of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-AGR-13R fit?

the 808-AGR-13R and 1250 172 23 fit on agria machinery. Use the 808-AGR-13R as a fitting replacement for: Ferrari 496366, and Agria 1250 172 23.
