Blade, right model fitting for Agria 15454

15454 blades for the agria machine

agria tillers use 15454 tiller blades. For these machines, RDM Parts has a fitting alternative in the 808-AGR-09R blades.

Mounting the blades

Tiller blades are fastened with a bolt. The rotation direction is also of importance when the tiller blade is mounted. In case of the 808-AGR-09R and the original counterpart, they are placed at the right side. The tiller blades are mounted in an alternating way.

Specifications of the 15454 and the 808-AGR-09R

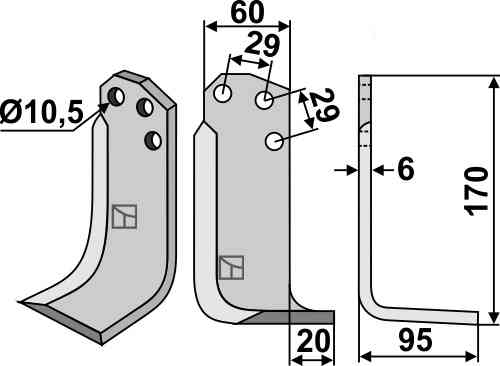

The length of the Blade, right model fitting for Agria 15454 with RDM number 808-AGR-09R is equal to the length of the original part. The length of the part is 170 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-AGR-09R are equal in width. The parts is equal in width, 60 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The original Blade, right model fitting for Agria 15454 from agria is 6 millimeter thick. The alternative that is offered by RDM Parts with number 808-AGR-09R has an equal thickness and is thus a suitable alternative for the original. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, right model fitting for Agria 15454 808-AGR-09R is 29 millimeter. This 808-AGR-09R Blade, right model fitting for Agria 15454 has a mounting hole of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-AGR-09R fit?

Like the original with number 15454, the 808-AGR-09R Blade, right model fitting for Agria 15454 fits on the machines of agria. Use the 808-AGR-09R as a fitting replacement for: Agria 15454.
