Blade, right model fitting for Agria 1250 254 98
| Product number: | 808-AGR-04R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Celli: | 722562 |
|---|---|
| Agria: | 1250 254 98 |
| Agria: | 125025498 |

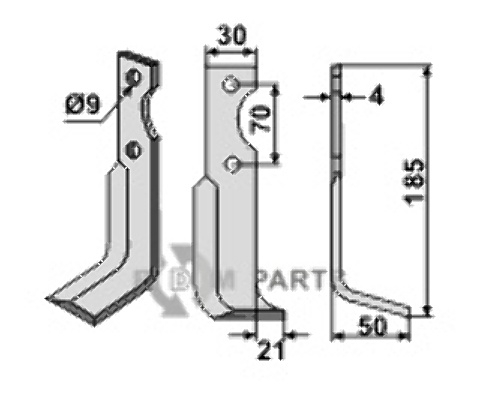

Technical details
| Product type: | Milling Knife |
|---|---|
| Suitable for brand: | Agria |
| Wideness: | 30 mm |
| Lengte: | 185 mm |
| Material Thickness: | 4 mm |
| Bolt hole diameter: | 9 mm |
| Boring: | 9 mm |
| Hole spacing: | 70 mm |
| Mounting: | Right |
| Thickness: | 4 mm |
| Weight: | 0.19 kg |
| Working widt: | 50 mm |
1250 254 98 blades for the agria machine
The 1250 254 98 is a blade for a rotary tiller from agria. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-AGR-04R.
Mounting the blades
The 1250 254 98 and our fitting alternative 808-AGR-04R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-AGR-04R should therefore be placed on the right side to rotate correctly. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the 1250 254 98 and the 808-AGR-04R
The length of the Blade, right model fitting for Agria 1250 254 98 with RDM number 808-AGR-04R is equal to the length of the original part. The Blade, right model fitting for Agria 1250 254 98 is 185 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. This Blade, right model fitting for Agria 1250 254 98 is 30 millimeter in width. The thickness of the Blade, right model fitting for Agria 1250 254 98 is important for the way the part fits on the machine. 4 millimeter thick is the Blade, right model fitting for Agria 1250 254 98 from agria with the original part number 1250 254 98. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, right model fitting for Agria 1250 254 98 808-AGR-04R has a hole spacing of 70 millimeter. The 808-AGR-04R and the original with are mounted with a mounting hole of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-AGR-04R fit?
the 808-AGR-04R and 1250 254 98 fit on agria machinery. Use the 808-AGR-04R as a fitting replacement for: Celli 722562, and Agria 1250 254 98.
.€4.27 * €5.17
€5.17 incl. VAT
€5.17*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, right model fitting for Agria 1250 254 98"
1250 254 98 blades for the agria machine
The 1250 254 98 is a blade for a rotary tiller from agria. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-AGR-04R.
Mounting the blades
The 1250 254 98 and our fitting alternative 808-AGR-04R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-AGR-04R should therefore be placed on the right side to rotate correctly. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the 1250 254 98 and the 808-AGR-04R
The length of the Blade, right model fitting for Agria 1250 254 98 with RDM number 808-AGR-04R is equal to the length of the original part. The Blade, right model fitting for Agria 1250 254 98 is 185 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. This Blade, right model fitting for Agria 1250 254 98 is 30 millimeter in width. The thickness of the Blade, right model fitting for Agria 1250 254 98 is important for the way the part fits on the machine. 4 millimeter thick is the Blade, right model fitting for Agria 1250 254 98 from agria with the original part number 1250 254 98. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, right model fitting for Agria 1250 254 98 808-AGR-04R has a hole spacing of 70 millimeter. The 808-AGR-04R and the original with are mounted with a mounting hole of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-AGR-04R fit?
the 808-AGR-04R and 1250 254 98 fit on agria machinery. Use the 808-AGR-04R as a fitting replacement for: Celli 722562, and Agria 1250 254 98.
.Properties
| Product number: | 808-AGR-04R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Celli: | 722562 |
|---|---|
| Agria: | 1250 254 98 |
| Agria: | 125025498 |
Technical details
| Product type: | Milling Knife |
|---|---|
| Suitable for brand: | Agria |
| Wideness: | 30 mm |
| Lengte: | 185 mm |
| Material Thickness: | 4 mm |
| Bolt hole diameter: | 9 mm |
| Boring: | 9 mm |
| Hole spacing: | 70 mm |
| Mounting: | Right |
| Thickness: | 4 mm |
| Weight: | 0.19 kg |
| Working widt: | 50 mm |
