RDM Parts Y-blade fitting for Spearhead 7770725

7770725 y blades for spearhead machines

Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with 7770725 from spearhead in the form of 808-63-SPH-51.

Mounting 808-63-SPH-51 y blades

Y blades are mounted on shackles on the flail mower. The 7770725 y blades and our alternative 808-63-SPH-51 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.

The difference between y-blades and flails

An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.

Specifications of the 7770725 and the 808-63-SPH-51

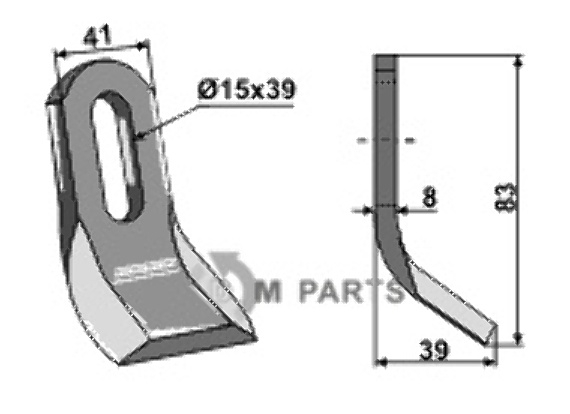

The original part for Y-blade fitting for Spearhead 7770725 has a comparable length as our fitting original with number 808-63-SPH-51. The product is thus 83 millimeter long and is a fitting replacement for your machinery. The width of the 808-63-SPH-51 is equal to the original. The parts is equal in width, 41 millimeter to be exact. The thickness of Y-blade fitting for Spearhead 7770725 indicates something about the wear and tear of a part, but also if this will fit on your machinery. 8 millimeter thick is the Y-blade fitting for Spearhead 7770725 from spearhead with the original part number 7770725. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The mounting holes of the 808-63-SPH-51 have a diameter of 15 millimeter. These holes are used to mount the Y-blade fitting for Spearhead 7770725 to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-63-SPH-51 fit?

Comparable to the original with number 7770725 the 808-63-SPH-51 fits for the machines of spearhead. Use the 808-63-SPH-51 as a fitting replacement for: Spearhead 7770725.
