Blade, right model fitting for Valpadana VMC 15 / 103743

VMC 15 / 103743 blades for the valpadana machine

The VMC 15 / 103743 is a blade for a rotary tiller from valpadana. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-VAL-04R.

Mounting the tiller blades

To mount the 808-VAL-04R and the original VMC 15 / 103743 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. This part is placed on the right side. The tiller blades are mounted in an alternating way.

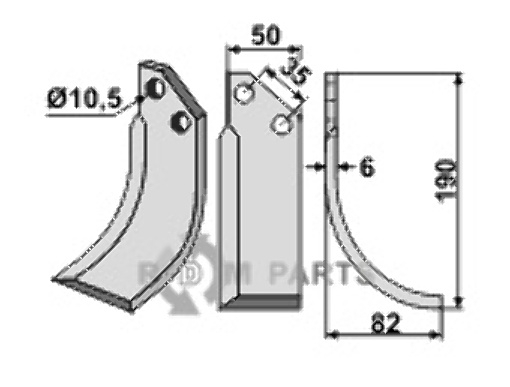

Specifications of the VMC 15 / 103743 and the 808-VAL-04R

The original part for Blade, right model fitting for Valpadana VMC 15 / 103743 has a comparable length as our fitting original with number 808-VAL-04R. The Blade, right model fitting for Valpadana VMC 15 / 103743 is 190 millimeter long. The original and the part from RDM Parts 808-VAL-04R are equal in width. The width measures 50 millimeter. The thickness of Blade, right model fitting for Valpadana VMC 15 / 103743 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The VMC 15 / 103743 from valpadana has a thickness of 6 millimeter. So the part from RDM Parts with number 808-VAL-04R as an alternative for the machine. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Valpadana VMC 15 / 103743. With these mounting holes the part can be attached to the machine from valpadana. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, right model fitting for Valpadana VMC 15 / 103743 808-VAL-04R is 35 millimeter. This 808-VAL-04R Blade, right model fitting for Valpadana VMC 15 / 103743 has a mounting hole of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-VAL-04R fit?

the 808-VAL-04R and VMC 15 / 103743 fit on valpadana machinery. The 808-VAL-04R is fitting for these parts: Doppstadt Schraube: 01100065 - Mutter: 01120068, and Valpadana VMC 15 / 103743.
