Rotary tine, right model fitting for Renter L.M.T. RTG

RTG rotary harrow tines for the renter l m t machine

RDM Parts has a fitting alternative for the RTG from renter l m t in the shape of the 808-REN-04R Rotary tine, right model fitting for Renter L.M.T. RTG.

To mount rotary harrow tines in the first place you will need mounting materials. Rotary harrow tines do not simply fit on every assembly point. The tines have a rotation direction which is based on the placement of the blades edge. In case of the RTG and our RDM Parts alternative 808-REN-04R, the tine is mounted on the right side.

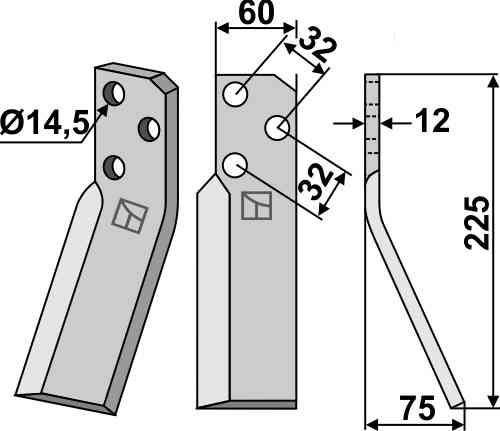

Specifications of the RTG and the 808-REN-04R

RDM Parts also has the 808-REN-04R Rotary tine, right model fitting for Renter L.M.T. RTG with an equal length as the original. With its 225 millimeter it is a good alternative to the original. The width of the 808-REN-04R is equal to the original. The parts is equal in width, 60 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The original Rotary tine, right model fitting for Renter L.M.T. RTG from renter l m t is 12 millimeter thick. So the part from RDM Parts with number 808-REN-04R as an alternative for the machine. The hole spacing measures the distance between the two mounting holes on the Rotary tine, right model fitting for Renter L.M.T. RTG. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-REN-04R from RDM Parts is equal to the original with number RTG and the distance measures 32 millimeter. The mounting holes of the 808-REN-04R have a diameter of 14,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-REN-04R fit?

the 808-REN-04R and RTG fit on renter l m t machinery. The 808-REN-04R is fitting for these parts: Maletti 6100077, and Renter L.M.T. RTG.

Do you have any questions about the RTG van renter l m t

If you have any questions about the parts from RDM Parts, including the 808-REN-04R or the original with number RTG, then contact our product specialists. We like to help you find a suiting answer.
