Blade, left model fitting for Nibbi Bruno K3501780

K3501780 blades for the nibbi bruno machine

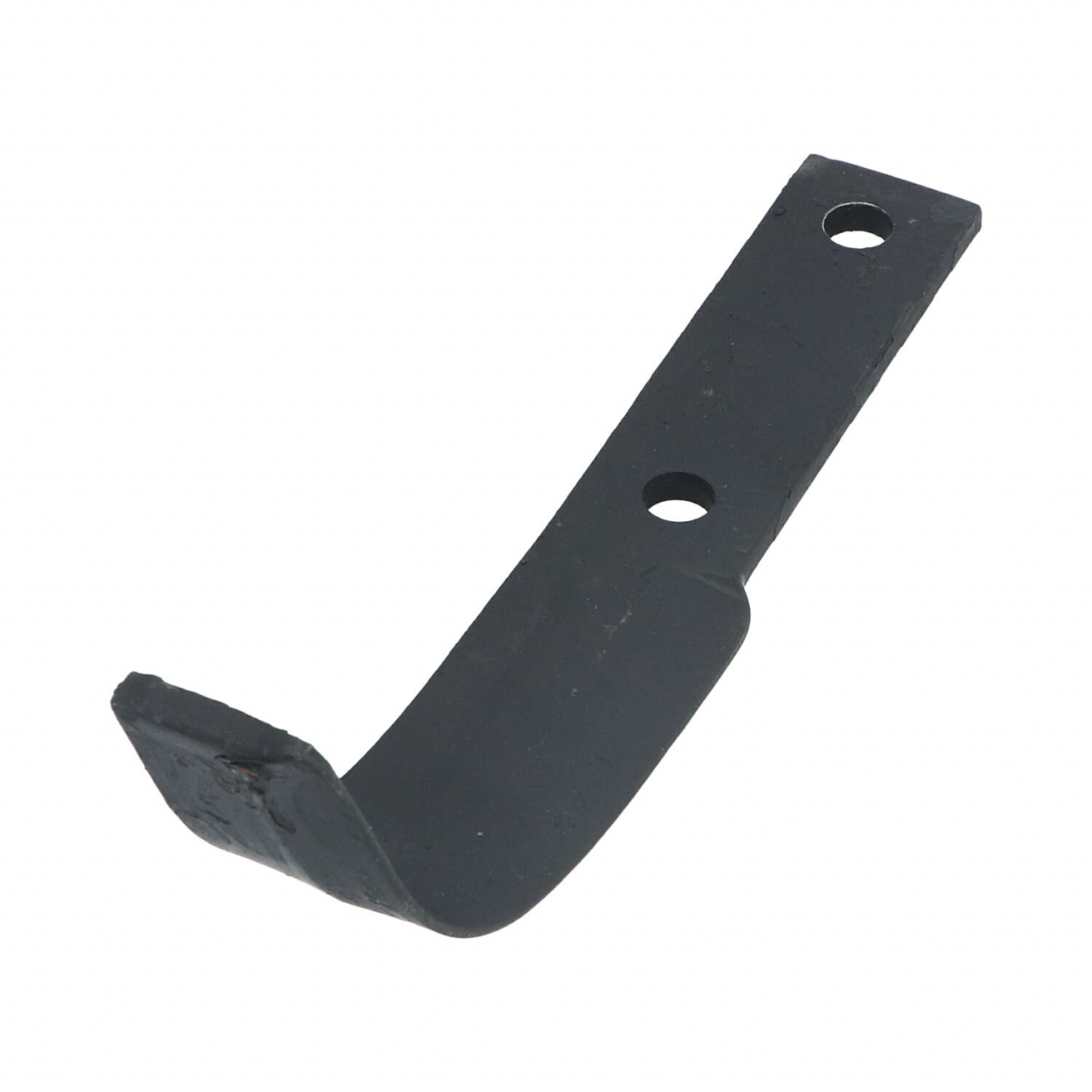

nibbi bruno tiller blades K3501780 fit on the machines of the same brand. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-NIB-15L, which is comparable with the original.

Mounting the blades

Generally speaking, tiller blades like the K3501780 and 808-NIB-15L are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-NIB-15L and the original counterpart, they are placed at the left side. The tiller blades are mounted in an alternating way.

Specifications of the K3501780 and the 808-NIB-15L

The length of the Blade, left model fitting for Nibbi Bruno K3501780 with RDM number 808-NIB-15L is equal to the length of the original part. The length of the part is 170 millimeter and this makes it a fitting alternative for the original. The width of the 808-NIB-15L is equal to the original. The parts is equal in width, 25 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, left model fitting for Nibbi Bruno K3501780 from nibbi bruno is 5 millimeter thick. So the part from RDM Parts with number 808-NIB-15L as an alternative for the machine. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from nibbi bruno. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, left model fitting for Nibbi Bruno K3501780 808-NIB-15L is 58 millimeter. The mounting holes of the 808-NIB-15L have a diameter of 8,5 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-NIB-15L fit?

Comparable to the original with number K3501780 the 808-NIB-15L fits for the machines of nibbi bruno. Use the 808-NIB-15L as a fitting replacement for: Nobili 1551128, and Nibbi Bruno K3501780.
