Blade, left model fitting for Muratori 12002901

12002901 blades for the muratori machine

muratori tiller blades 12002901 fit on the machines of the same brand. If you need an alternative, then you can use the 808-MUR-19L, which is a fitting solution for your tiller.

Mounting the blades

Tiller blades are fastened with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-MUR-19L and the original counterpart, they are placed at the left side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

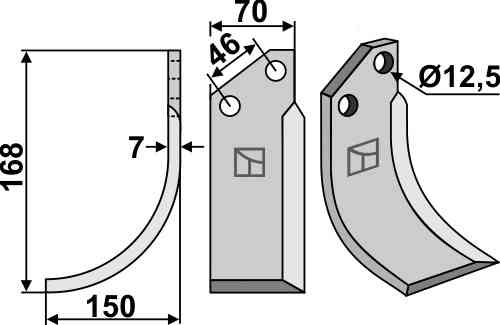

Specifications of the 12002901 and the 808-MUR-19L

The original part for Blade, left model fitting for Muratori 12002901 has a comparable length as our fitting original with number 808-MUR-19L. With its 168 millimeter it is a good alternative to the original. The width of the 808-MUR-19L is equal to the original. The width measures 70 millimeter. The thickness of the Blade, left model fitting for Muratori 12002901 is important for the way the part fits on the machine. The 12002901 from muratori has a thickness of 7 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Muratori 12002901. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, left model fitting for Muratori 12002901 808-MUR-19L is 46 millimeter. The mounting holes of the 808-MUR-19L have a diameter of 12,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-MUR-19L fit?

Like the original with number 12002901, the 808-MUR-19L Blade, left model fitting for Muratori 12002901 fits on the machines of muratori. The 808-MUR-19L is fitting for these parts: Ferri 901133, and Muratori 12002901.
