Blade, left model fitting for M.A.B. Bocchini 2783

2783 blades for the m a b bocchini machine

The 2783 is a blade for a rotary tiller from m a b bocchini. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-MAB-16L, which is comparable with the original.

Mounting the blades

The 2783 and our fitting alternative 808-MAB-16L are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-MAB-16L and the original counterpart, they are placed at the left side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

Specifications of the 2783 and the 808-MAB-16L

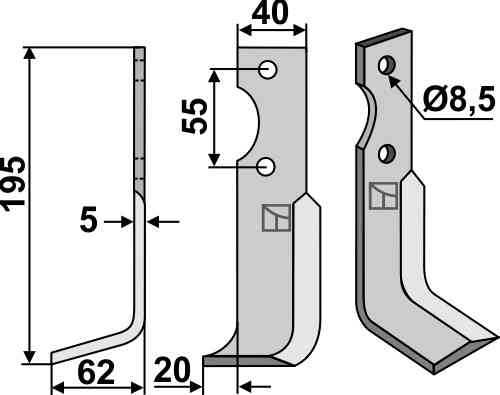

The length of the Blade, left model fitting for M.A.B. Bocchini 2783 with RDM number 808-MAB-16L is equal to the length of the original part. With its 195 millimeter it is a good alternative to the original. The original and the part from RDM Parts 808-MAB-16L are equal in width. This Blade, left model fitting for M.A.B. Bocchini 2783 is 40 millimeter in width. The thickness of the Blade, left model fitting for M.A.B. Bocchini 2783 is important for the way the part fits on the machine. The 2783 from m a b bocchini has a thickness of 5 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for M.A.B. Bocchini 2783. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, left model fitting for M.A.B. Bocchini 2783 808-MAB-16L has a hole spacing of 55 millimeter. This 808-MAB-16L Blade, left model fitting for M.A.B. Bocchini 2783 has a mounting hole of 8,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-MAB-16L fit?

Like the original with number 2783, the 808-MAB-16L Blade, left model fitting for M.A.B. Bocchini 2783 fits on the machines of m a b bocchini. The 808-MAB-16L is fitting for these parts: Dragone 192.02.653, and M.A.B. Bocchini 2783.
