Blade, left model fitting for Hako 90-00 978/8

Product information "Blade, left model fitting for Hako 90-00 978/8"

90-00 978/8 blades for the hako machine

hako tiller blades 90-00 978/8 fit on the machines of the same brand. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-HAK-56L.

Mounting the blades

Tiller blades are fastened with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-HAK-56L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

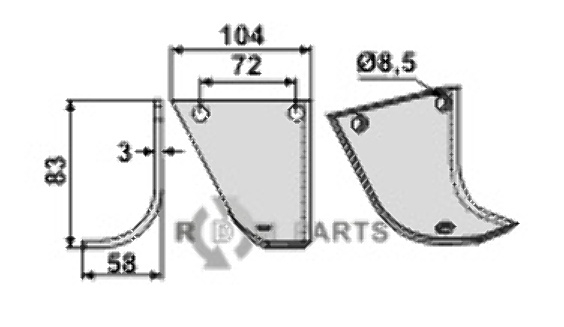

Specifications of the 90-00 978/8 and the 808-HAK-56L

The original part for Blade, left model fitting for Hako 90-00 978/8 has a comparable length as our fitting original with number 808-HAK-56L. The length of the part is 83 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-HAK-56L are equal in width. The parts is equal in width, 104 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The 90-00 978/8 from hako has a thickness of 3 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing of Blade, left model fitting for Hako 90-00 978/8 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the hako machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, left model fitting for Hako 90-00 978/8 808-HAK-56L has a hole spacing of 72 millimeter. The mounting holes of the 808-HAK-56L have a diameter of 8,5 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-HAK-56L fit?

Like the original with number 90-00 978/8, the 808-HAK-56L Blade, left model fitting for Hako 90-00 978/8 fits on the machines of hako. The 808-HAK-56L is fitting for these parts: Sicma (Miglianico) 4811282, and Hako 90-00 978/8.

.
Show more Show less

Properties

Product number: 808-HAK-56L
Manufacturer Industriehof
Replaces original
Sicma (Miglianico): 4811282
Hako: 90-00 978/8
Hako: 90-00978 / 8
Technical details
Suitable for brand: Hako
Product type: Milling Knife
Bolt hole diameter: 8.5 mm
Boring: 8.5 mm
Hole spacing: 72 mm
Lengte: 83 mm
Material Tickness: 3 mm
Mounting: Left
Thickness: 3 mm
Weight: 0.18 kg
Wideness: 104 mm
Working widt: 58 mm
