Blade, right model fitting for Gutbrod 75.71.062
| Product number: | 808-GUT-52R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| S.E.P.: | 430/450 |
|---|---|
| Gutbrod: | 75.71.062 |

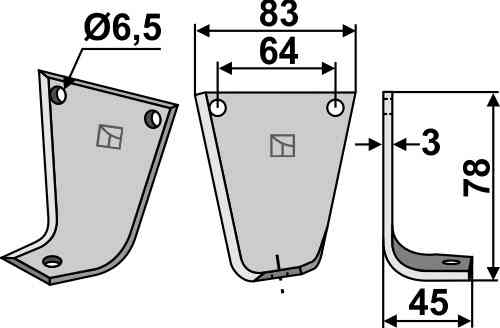

Technical details
| Product type: | Milling Knife |
|---|---|
| Suitable for brand: | Gutbrod |
| Wideness: | 83 mm |
| Lengte: | 78 mm |
| Material Thickness: | 3 mm |
| Bolt hole diameter: | 6.5 mm |
| Boring: | 6.5 mm |
| Hole spacing: | 64 mm |
| Mounting: | Right |
| Thickness: | 3 mm |
| Weight: | 0.12 kg |
| Working widt: | 45 mm |
75.71.062 blades for the gutbrod machine
The 75.71.062 is a blade for a rotary tiller from gutbrod. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-GUT-52R, which is comparable with the original.
Mounting the blades
Tiller blades are fastened with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-GUT-52R is pretty much the same as the original and is placed on the right side. The tiller blades are mounted in an alternating way.
Specifications of the 75.71.062 and the 808-GUT-52R
The length of the Blade, right model fitting for Gutbrod 75.71.062 with RDM number 808-GUT-52R is equal to the length of the original part. The product is thus 78 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-GUT-52R are equal in width. This Blade, right model fitting for Gutbrod 75.71.062 is 83 millimeter in width. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The 75.71.062 from gutbrod has a thickness of 3 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the gutbrod machinery. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, right model fitting for Gutbrod 75.71.062 808-GUT-52R has a hole spacing of 64 millimeter. The mounting holes of the 808-GUT-52R have a diameter of 6,5 millimeter. These holes are used to mount the Blade, right model fitting for Gutbrod 75.71.062 to the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-GUT-52R fit?
the 808-GUT-52R and 75.71.062 fit on gutbrod machinery. The 808-GUT-52R is fitting for these parts: S.E.P. 430/450, and Gutbrod 75.71.062.
.€7.04 * €8.52
€8.52 incl. VAT
€8.52*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, right model fitting for Gutbrod 75.71.062"
75.71.062 blades for the gutbrod machine
The 75.71.062 is a blade for a rotary tiller from gutbrod. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-GUT-52R, which is comparable with the original.
Mounting the blades
Tiller blades are fastened with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-GUT-52R is pretty much the same as the original and is placed on the right side. The tiller blades are mounted in an alternating way.
Specifications of the 75.71.062 and the 808-GUT-52R
The length of the Blade, right model fitting for Gutbrod 75.71.062 with RDM number 808-GUT-52R is equal to the length of the original part. The product is thus 78 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-GUT-52R are equal in width. This Blade, right model fitting for Gutbrod 75.71.062 is 83 millimeter in width. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The 75.71.062 from gutbrod has a thickness of 3 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the gutbrod machinery. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, right model fitting for Gutbrod 75.71.062 808-GUT-52R has a hole spacing of 64 millimeter. The mounting holes of the 808-GUT-52R have a diameter of 6,5 millimeter. These holes are used to mount the Blade, right model fitting for Gutbrod 75.71.062 to the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-GUT-52R fit?
the 808-GUT-52R and 75.71.062 fit on gutbrod machinery. The 808-GUT-52R is fitting for these parts: S.E.P. 430/450, and Gutbrod 75.71.062.
