Blade, left model fitting for Gutbrod 75.73.026
| Product number: | 808-GUT-51L |
|---|---|
| Manufacturer | RDM Parts |
Replaces original
| S.E.P.: | 1500-2000 REV |
|---|---|
| Gutbrod: | 75.73.026 |
Technical details
| Product type: | Milling Knife |
|---|---|
| Suitable for brand: | Gutbrod |
| Boring: | 9 mm |
| Brand: | RDM Parts |
| Mounting: | Left |
| Thickness: | 6 mm |
| Working widt: | 50 mm |
75.73.026 blades for the gutbrod machine
75.73.026 tiller blades fit on the rotary tillers of gutbrod. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-GUT-51L, which is comparable with the original.
Mounting the blades
Generally speaking, tiller blades like the 75.73.026 and 808-GUT-51L are fixed with a bolt. The rotation direction is also of importance when the tiller blade is mounted. The 808-GUT-51L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

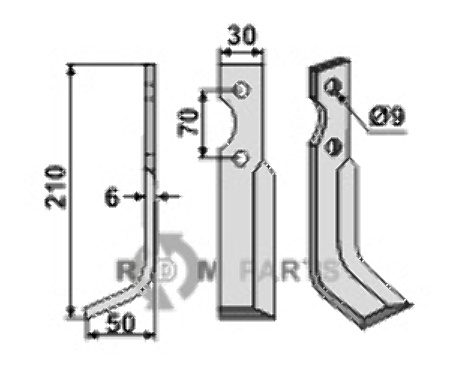

Specifications of the 75.73.026 and the 808-GUT-51L
The original part for Blade, left model fitting for Gutbrod 75.73.026 has a comparable length as our fitting original with number 808-GUT-51L. With its 210 millimeter it is a good alternative to the original. The width of the 808-GUT-51L is equal to the original. The width measures 30 millimeter. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. 6 millimeter thick is the Blade, left model fitting for Gutbrod 75.73.026 from gutbrod with the original part number 75.73.026. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from gutbrod. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of the 808-GUT-51L from RDM Parts is equal to the original with number 75.73.026 and the distance measures 70 millimeter. The mounting holes of the 808-GUT-51L have a diameter of 9 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-GUT-51L fit?
the 808-GUT-51L and 75.73.026 fit on gutbrod machinery. The 808-GUT-51L is fitting for these parts: S.E.P. 1500-2000 REV, and Gutbrod 75.73.026.
€8.59 * €10.39
€10.39 incl. VAT
€10.39*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours (When in stock)
- Discounts, for companies
Product information "Blade, left model fitting for Gutbrod 75.73.026"
75.73.026 blades for the gutbrod machine
75.73.026 tiller blades fit on the rotary tillers of gutbrod. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-GUT-51L, which is comparable with the original.
Mounting the blades
Generally speaking, tiller blades like the 75.73.026 and 808-GUT-51L are fixed with a bolt. The rotation direction is also of importance when the tiller blade is mounted. The 808-GUT-51L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the 75.73.026 and the 808-GUT-51L
The original part for Blade, left model fitting for Gutbrod 75.73.026 has a comparable length as our fitting original with number 808-GUT-51L. With its 210 millimeter it is a good alternative to the original. The width of the 808-GUT-51L is equal to the original. The width measures 30 millimeter. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. 6 millimeter thick is the Blade, left model fitting for Gutbrod 75.73.026 from gutbrod with the original part number 75.73.026. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from gutbrod. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of the 808-GUT-51L from RDM Parts is equal to the original with number 75.73.026 and the distance measures 70 millimeter. The mounting holes of the 808-GUT-51L have a diameter of 9 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-GUT-51L fit?
the 808-GUT-51L and 75.73.026 fit on gutbrod machinery. The 808-GUT-51L is fitting for these parts: S.E.P. 1500-2000 REV, and Gutbrod 75.73.026.
