Blade, left model

9254 grillo (pinza) 35-40-50 blades for the grillo pinza machine

grillo pinza tillers use 9254 grillo (pinza) 35-40-50 tiller blades. If you need an alternative, then you can use the 808-GRI-08L, which is a fitting solution for your tiller.

Mounting the tiller blades

To mount the 808-GRI-08L and the original 9254 grillo (pinza) 35-40-50 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-GRI-08L is pretty much the same as the original and is placed on the left side. The tiller blades are mounted in an alternating way.

Specifications of the 9254 grillo (pinza) 35-40-50 and the 808-GRI-08L

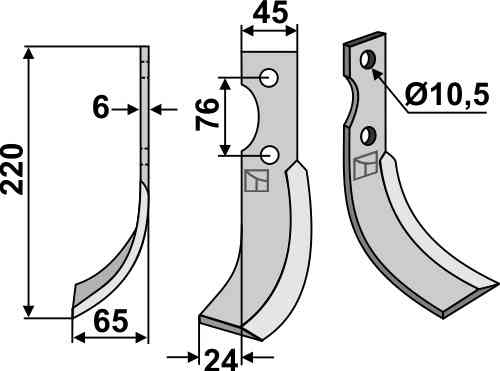

The Blade, left model from grillo pinza is just as long as the 808-GRI-08L from RDM Parts. The product is thus 220 millimeter long and is a fitting replacement for your machinery. The width of the 808-GRI-08L is equal to the original. This Blade, left model is 45 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Blade, left model with part number 808-GRI-08L has a thickness of 6 millimeter. So the part from RDM Parts with number 808-GRI-08L as an alternative for the machine. The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the grillo pinza machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, left model 808-GRI-08L has a hole spacing of 76 millimeter. The mounting holes of the 808-GRI-08L have a diameter of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-GRI-08L fit?

Like the original with number 9254 grillo (pinza) 35-40-50, the 808-GRI-08L Blade, left model fits on the machines of grillo pinza The 808-GRI-08L is fitting for these parts: S.E.P. 35-40-50, and Grillo (Pinza) 9254.
