Blade, left model fitting for B.C.S. 42307
| Product number: | 808-GRI-01L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Rabe: | 8415.42.01 |
|---|---|
| B.C.S.: | 42307 |
| Bertolini: | S.305 HP7,5 |
| Ferrari: | 63199 |
| Grillo (Pinza): | 7086 |
| Roteco: | 60325 110 D |
| S.E.P.: | 1400-1700S |
| Bertolini: | S.305HP7,5 |
| Grillo: | 7086 |
| Roteco: | 60325110D |
Technical details
| Suitable for brand: | B C S |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 66 mm |
| Material Tickness: | 6 mm |
| Mounting: | Left |
| Thickness: | 6 mm |
| Wideness: | 30 mm |
| Working widt: | 72 mm |
42307 blades for the b c s machine
42307 tiller blades fit on the rotary tillers of b c s When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-GRI-01L.
Mounting the tiller blades
To mount the 808-GRI-01L and the original 42307 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-GRI-01L is pretty much the same as the original and is placed on the left side. The tiller blades are mounted in an alternating way.

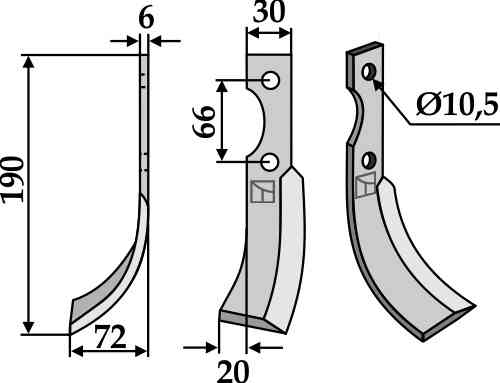

Specifications of the 42307 and the 808-GRI-01L
The original part for Blade, left model fitting for B.C.S. 42307 has a comparable length as our fitting original with number 808-GRI-01L. The Blade, left model fitting for B.C.S. 42307 is 190 millimeter long. The original and the part from RDM Parts 808-GRI-01L are equal in width. The width measures 30 millimeter. The thickness of Blade, left model fitting for B.C.S. 42307 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The 42307 from b c s has a thickness of 6 millimeter. The alternative that is offered by RDM Parts with number 808-GRI-01L has an equal thickness and is thus a suitable alternative for the original.
The hole spacing of Blade, left model fitting for B.C.S. 42307 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, left model fitting for B.C.S. 42307 808-GRI-01L has a hole spacing of 66 millimeter. This 808-GRI-01L Blade, left model fitting for B.C.S. 42307 has a mounting hole of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-GRI-01L fit?
the 808-GRI-01L and 42307 fit on b c s machinery. The 808-GRI-01L is fitting for these parts: Rabe 8415.42.01, B.C.S. 42307, Bertolini S.305 HP7,5, Ferrari 63199, Grillo (Pinza) 7086, Roteco 60325 110 D, and S.E.P. 1400-1700S.
€7.73*
- Free delivery, from €450 (excluding VAT).
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
42307 blades for the b c s machine
42307 tiller blades fit on the rotary tillers of b c s When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-GRI-01L.
Mounting the tiller blades
To mount the 808-GRI-01L and the original 42307 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-GRI-01L is pretty much the same as the original and is placed on the left side. The tiller blades are mounted in an alternating way.
Specifications of the 42307 and the 808-GRI-01L
The original part for Blade, left model fitting for B.C.S. 42307 has a comparable length as our fitting original with number 808-GRI-01L. The Blade, left model fitting for B.C.S. 42307 is 190 millimeter long. The original and the part from RDM Parts 808-GRI-01L are equal in width. The width measures 30 millimeter. The thickness of Blade, left model fitting for B.C.S. 42307 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The 42307 from b c s has a thickness of 6 millimeter. The alternative that is offered by RDM Parts with number 808-GRI-01L has an equal thickness and is thus a suitable alternative for the original.
The hole spacing of Blade, left model fitting for B.C.S. 42307 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, left model fitting for B.C.S. 42307 808-GRI-01L has a hole spacing of 66 millimeter. This 808-GRI-01L Blade, left model fitting for B.C.S. 42307 has a mounting hole of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-GRI-01L fit?
the 808-GRI-01L and 42307 fit on b c s machinery. The 808-GRI-01L is fitting for these parts: Rabe 8415.42.01, B.C.S. 42307, Bertolini S.305 HP7,5, Ferrari 63199, Grillo (Pinza) 7086, Roteco 60325 110 D, and S.E.P. 1400-1700S.
Properties
| Product number: | 808-GRI-01L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Rabe: | 8415.42.01 |
|---|---|
| B.C.S.: | 42307 |
| Bertolini: | S.305 HP7,5 |
| Ferrari: | 63199 |
| Grillo (Pinza): | 7086 |
| Roteco: | 60325 110 D |
| S.E.P.: | 1400-1700S |
| Bertolini: | S.305HP7,5 |
| Grillo: | 7086 |
| Roteco: | 60325110D |
Technical details
| Suitable for brand: | B C S |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 66 mm |
| Material Tickness: | 6 mm |
| Mounting: | Left |
| Thickness: | 6 mm |
| Wideness: | 30 mm |
| Working widt: | 72 mm |
