Blade, right model fitting for Benassi S.308 - 6CM105
| Product number: | 808-BEN-40R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Holder: | 1832440610 |
|---|---|
| Benassi: | S.308 - 6CM105 |
| Benassi: | S.308-6CM105 |
Technical details
| Suitable for brand: | Benassi |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 68 mm |
| Material Tickness: | 6 mm |
| Mounting: | Right |
| Thickness: | 6 mm |
| Wideness: | 40 mm |
| Working widt: | 70 mm |
S.308 - 6CM105 blades for the benassi machine
benassi tillers use S.308 - 6CM105 tiller blades. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-BEN-40R, which is comparable with the original.
Mounting the blades
The S.308 - 6CM105 and our fitting alternative 808-BEN-40R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-BEN-40R is pretty much the same as the original and is placed on the right side. The tiller blades are mounted in an alternating way.

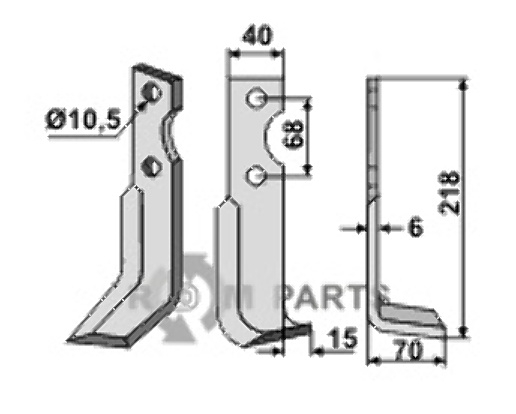

Specifications of the S.308 - 6CM105 and the 808-BEN-40R
The original part for Blade, right model fitting for Benassi S.308 - 6CM105 has a comparable length as our fitting original with number 808-BEN-40R. With its 218 millimeter it is a good alternative to the original. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The width measures 40 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The original Blade, right model fitting for Benassi S.308 - 6CM105 from benassi is 6 millimeter thick. The alternative that is offered by RDM Parts with number 808-BEN-40R has an equal thickness and is thus a suitable alternative for the original.
The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from benassi. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-BEN-40R from RDM Parts is equal to the original with number S.308 - 6CM105 and the distance measures 68 millimeter. The mounting holes of the 808-BEN-40R have a diameter of 10,5 millimeter. These holes are used to mount the Blade, right model fitting for Benassi S.308 - 6CM105 to the machine. Some parts have two or more mounting holes to fix it to the machine.On what machines does the 808-BEN-40R fit?
Comparable to the original with number S.308 - 6CM105 the 808-BEN-40R fits for the machines of benassi. The 808-BEN-40R is fitting for these parts: Holder 1832440610, and Benassi S.308 - 6CM105.
.€9.50*
- Free delivery, from €450 (excluding VAT).
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
S.308 - 6CM105 blades for the benassi machine
benassi tillers use S.308 - 6CM105 tiller blades. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-BEN-40R, which is comparable with the original.
Mounting the blades
The S.308 - 6CM105 and our fitting alternative 808-BEN-40R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-BEN-40R is pretty much the same as the original and is placed on the right side. The tiller blades are mounted in an alternating way.
Specifications of the S.308 - 6CM105 and the 808-BEN-40R
The original part for Blade, right model fitting for Benassi S.308 - 6CM105 has a comparable length as our fitting original with number 808-BEN-40R. With its 218 millimeter it is a good alternative to the original. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The width measures 40 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The original Blade, right model fitting for Benassi S.308 - 6CM105 from benassi is 6 millimeter thick. The alternative that is offered by RDM Parts with number 808-BEN-40R has an equal thickness and is thus a suitable alternative for the original.
The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from benassi. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-BEN-40R from RDM Parts is equal to the original with number S.308 - 6CM105 and the distance measures 68 millimeter. The mounting holes of the 808-BEN-40R have a diameter of 10,5 millimeter. These holes are used to mount the Blade, right model fitting for Benassi S.308 - 6CM105 to the machine. Some parts have two or more mounting holes to fix it to the machine.On what machines does the 808-BEN-40R fit?
Comparable to the original with number S.308 - 6CM105 the 808-BEN-40R fits for the machines of benassi. The 808-BEN-40R is fitting for these parts: Holder 1832440610, and Benassi S.308 - 6CM105.
