Middelste hef arm onderdelen passend voor uw Toro Greensmaster 3250-D Model 04383 & 04384

Om alle functies van onze shop te kunnen gebruiken, adviseren wij u om Javascript in uw browser in te schakelen.

Telefonisch bereikbaar van 08:00 t/m 17:30 op +31 (0)344-645675

Snelle levering

Groot assortiment

Gunstig prijsniveau

+31 (0)344-645675

Kies hier uw tekening

16 tekeningen beschikbaar

#10

Ring - retaining reel

Ring - retaining reel

R458013

€ 1,29*

#11

PIN

PIN

R94-3452

€ 22,20*

#12

Hose assy - rear cylinder

Hose assy - rear cylinder

R93-2258

€ 56,59*

#12

HOSE ASSY - HYD

HOSE ASSY - HYD

R112-9185

€ 85,68*

#13

HOSE ASSY - HYD

HOSE ASSY - HYD

R106-7981

€ 65,13*

#14

BRACKET- BULKHEAD

BRACKET- BULKHEAD

R94-1316

€ 65,95*

#15

TUBE-HYD

TUBE-HYD

R94-1317

€ 136,39*

#16

TUBE-HYD

TUBE-HYD

R94-1321

€ 202,46*

#17

TUBE-HYD

TUBE-HYD

R94-1318

€ 282,49*

#18

HOSE ASSY

HOSE ASSY

R105-5405

€ 75,76*

#19

Hose assy - rear reel motor

Hose assy - rear reel motor

R95-2907

€ 129,29*

#20

Hook - lift

Hook - lift

R105-5740

€ 20,93*

#21

Bolt - hex hd M10-1.5 x 25

Bolt - hex hd M10-1.5 x 25

R33115-025

€ 1,60*

#22

Shaft - bsk roller

Shaft - bsk roller

R108-6543

€ 60,74*

#22

SHAFT - SPECIAL ROLLER

SHAFT - SPECIAL ROLLER

R99-4209

€ 11,39*

#23

Fitting - grease 471214

Fitting - grease 471214

R302-5

€ 1,02*

#24

SPACER - 1.795 in

SPACER - 1.795 in

R99-4109

€ 29,44*

#25

BUSHING - CARRIER FRAME

BUSHING - CARRIER FRAME

R98-4166

€ 4,20*

#26

Pull frame

Pull frame

R99-4114

€ 553,96*

#27

Spacer

R108-6544

€ 12,31*

#27

Spacer - pull link

Spacer - pull link

R75-5270

€ 5,22*

#28

Bushing - pull link

Bushing - pull link

R95-0532

€ 15,77*

#29

Bushing - nyliner bed bar 104-7738

Bushing - nyliner bed bar 104-7738

R256-292

€ 4,17*

#30

Washer - bed bar pivot

Washer - bed bar pivot

R52-2860

€ 1,14*

#30

Washer - hardened

Washer - hardened

R80-6990

€ 4,45*

#31

LOCKNUT - 3/8-16 NYLON JAM

LOCKNUT - 3/8-16 NYLON JAM

R3296-59

€ 1,55*

#31

BOLT - HEX HD 3/8-16 X 1-1/2

BOLT - HEX HD 3/8-16 X 1-1/2

R323-8

€ 2,07*

#32

Pull link - w/bushing

Pull link - w/bushing

R100-6440

€ 97,27*

#32

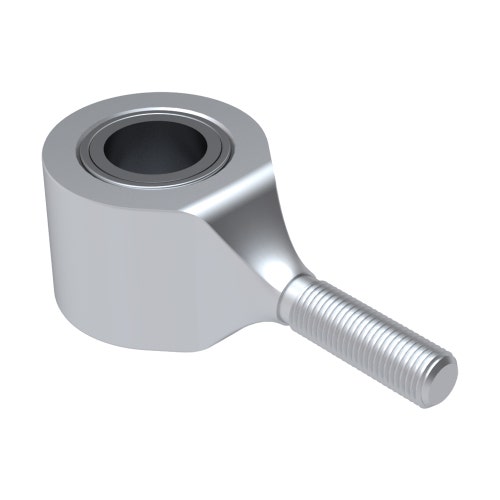

PULL LINK ASSY

PULL LINK ASSY

R108-6542

€ 126,61*

#33

Nut - jam ball joint

Nut - jam ball joint

R3220-3

€ 0,40*

#34

Extension - pull arm

Extension - pull arm

R88-6870

€ 28,46*

#34

Extension - pull arm 4 in.

Extension - pull arm 4 in.

R99-4270

€ 21,04*

#35

RECEIVER - BALL JOINT

RECEIVER - BALL JOINT

R99-1460

€ 24,85*

#36

Roller Toro 99-4210

Roller Toro 99-4210

R99-4210

€ 21,83*

#37

FITTING - HYD 90 DEG

FITTING - HYD 90 DEG

R340-132

€ 23,52*

#38

O-ring

O-ring

R237-21

€ 0,76*

#39

O-RING

O-RING

R237-22

€ 0,98*

#41

O-RING

O-RING

R237-79

€ 2,24*

#42

FITTING - HYD

FITTING - HYD

R340-98

€ 25,37*

#43

O-RING - SEAL

O-RING - SEAL

R237-30

€ 1,26*

#44

Axle - caster 5/8-11 x 7-1/2

Axle - caster 5/8-11 x 7-1/2

R327-25

€ 9,86*

#45

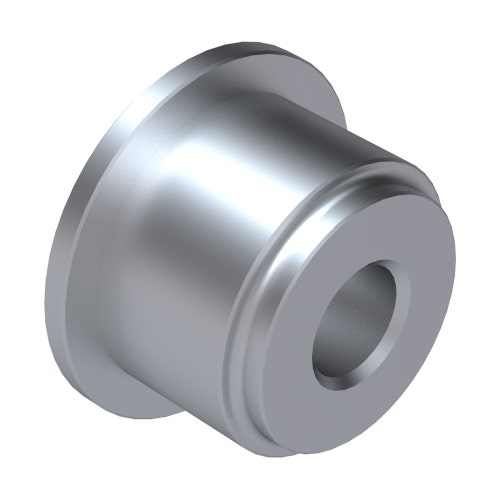

Guide-spring

Guide-spring

R105-9779

€ 70,46*

#46

Bolt - hex hd M8-1.25 x 15

Bolt - hex hd M8-1.25 x 15

R33114-016

€ 1,05*

#47

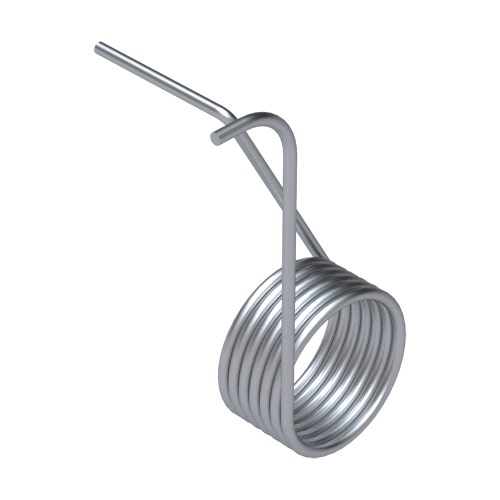

SPRING - TORSION

SPRING - TORSION

R105-9781

€ 35,96*

#48

WASHER - THRUST

WASHER - THRUST

R63-2290

€ 2,75*

#49

Bushing - flanged carrier frame 98-2197

Bushing - flanged carrier frame 98-2197

R94-9610

€ 8,13*

#50

BUSHING - ECCENTRIC

BUSHING - ECCENTRIC

R98-4618

€ 180,40*

#51

Nut - lock hex flanged 1/2-13

Nut - lock hex flanged 1/2-13

R32128-23

€ 2,11*

#51

LOCKNUT - 1/2-13 HEAVY ESNA

LOCKNUT - 1/2-13 HEAVY ESNA

R3296-25

€ 3,10*

#52

RH CLEVIS ASSY

RH CLEVIS ASSY

R99-4183-01

€ 182,60*

#53

SCREW

SCREW

R78-8710

€ 0,63*

#54

BOLT - HEX HD 1/2-13 X 3-1/4

BOLT - HEX HD 1/2-13 X 3-1/4

R325-13

€ 4,68*

#55

WASHER-FLAT

WASHER-FLAT

R3256-77

€ 3,46*

#56

PAD-RUBBER

PAD-RUBBER

R94-1392

€ 10,90*

#57

SPACER

R99-4248

€ 31,31*

#58

LINK BRACKET ASSY

LINK BRACKET ASSY

R99-4246

€ 87,22*

#59

TUBE - SPACER

R99-4201

€ 15,67*

#60

LIFT ARM ASSY - CENTER

LIFT ARM ASSY - CENTER

R99-4126

€ 503,55*

#61

Washer - 1/2 in

Washer - 1/2 in

R3256-26

€ 0,99*

#62

Bolt - hex hd gr 5

Bolt - hex hd gr 5

R325-7

€ 1,52*

#63

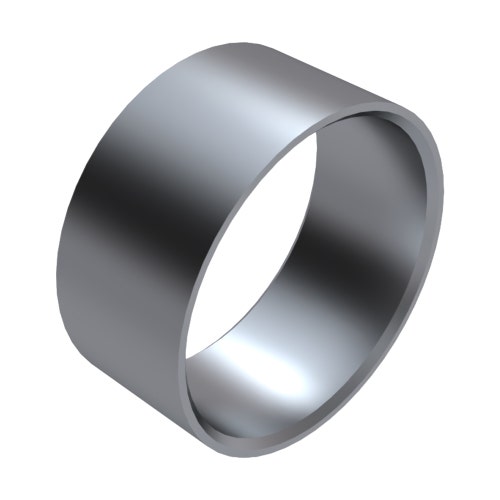

BUSHING - 1 x 1 1/8 x 1/2 SPLIT

BUSHING - 1 x 1 1/8 x 1/2 SPLIT

R92-8995

€ 16,69*

#64

Flange bushing fits for Toro 99-4243

Flange bushing fits for Toro 99-4243

R99-4243

€ 5,72*

#65

NUT - 10-32 NYLON LOCK

NUT - 10-32 NYLON LOCK

R3296-12

€ 1,40*

#66

REAR LIFT FRAME ASSY

REAR LIFT FRAME ASSY

R99-4116

€ 530,32*

#67

Nut - 1/2-13 hex jam zinc

Nut - 1/2-13 hex jam zinc

R443818

€ 1,05*

#68

BOLT - HEX HD 1/2-13 X 3-1/2

BOLT - HEX HD 1/2-13 X 3-1/2

R325-14

€ 2,82*

#69

SCREW-PPH

SCREW-PPH

R3250-17

€ 3,15*

#70

PAD-WEAR

PAD-WEAR

R99-4225

€ 15,22*

#71

SCREW-HH

SCREW-HH

R32144-69

€ 2,32*

#72

PLATE-TRANSPORT

PLATE-TRANSPORT

R99-4111-01

€ 73,75*

#73

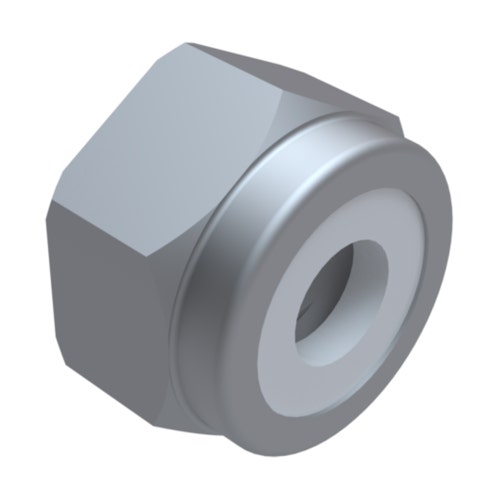

NUT-LOCK

NUT-LOCK

R3296-54

€ 3,87*

#74

Washer - flat

Washer - flat

R3256-74

€ 1,06*

#75

Locknut - 5/8-11 esna yellow

Locknut - 5/8-11 esna yellow

R3296-53

€ 2,54*

#76

PIN-CLEVIS

PIN-CLEVIS

R283-68

€ 13,01*

#77

WASHER-FLAT

WASHER-FLAT

R33096-00

€ 3,63*

#78

SEAL KIT

SEAL KIT

R105-3836

€ 99,46*

#78

Cylinder - hydraulic rear

Cylinder - hydraulic rear

R105-3820

€ 673,16*

#79

Bolt - hex washer 5/16-18 x 5/8

Bolt - hex washer 5/16-18 x 5/8

R32144-14

€ 5,61*

#80

LOCKNUT - 8MM X 1.25

LOCKNUT - 8MM X 1.25

R33024-00

€ 1,08*

#81

CLAMP-R, DOUBLE

CLAMP-R, DOUBLE

R2412-137

€ 9,92*

#82

Bolt - hex hd

Bolt - hex hd

R66-3160

€ 1,27*

#83

GROMMET- RUBBER

GROMMET- RUBBER

R240-3

€ 15,49*

#84

SPACER

R69-9000

€ 20,36*

#85

WASHER

WASHER

R69-9010

€ 6,26*

#86

PIN - COTTER

PIN - COTTER

R3272-11

€ 1,29*

#87

LOCKNUT - BULKHEAD

LOCKNUT - BULKHEAD

R340-74

€ 8,03*

#88

NUT - LOCK

NUT - LOCK

R340-70

€ 3,34*
