Toro Sand Pro 3040 Rear Hitch

Kies hier uw tekening

8 tekeningen beschikbaar

#10

SCREW - HEX WAS HD

R32144-10

€ 4,03*

#11

Rear cover assy

R108-7970-01

€ 173,80*

#12

Fitting - grease 471214

R302-5

€ 1,02*

#13

Pin-clevis

R108-2282

€ 53,28*

#14

PIN - COTTER 3/16 X 1-1/4

R460050

€ 0,68*

#15

ADAPTER ASSY

R108-6870-01

€ 625,53*

#16

Pin assy

R108-6885

€ 81,19*

#17

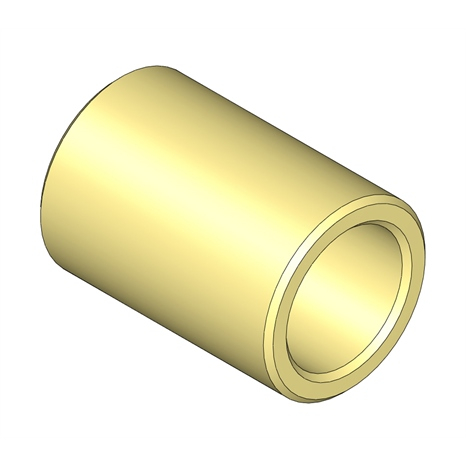

BUSHING

R33-3090

€ 12,83*

#18

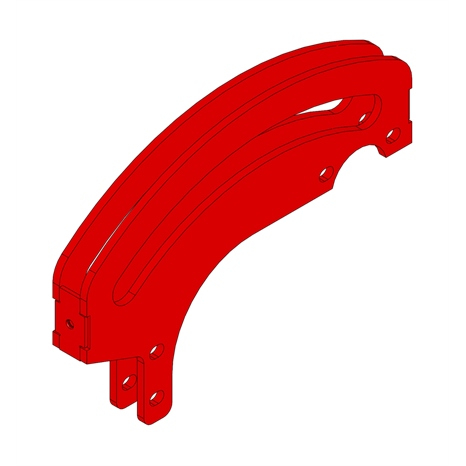

ROLLER PLATE ASSY

R110-1368-01

€ 213,34*

#19

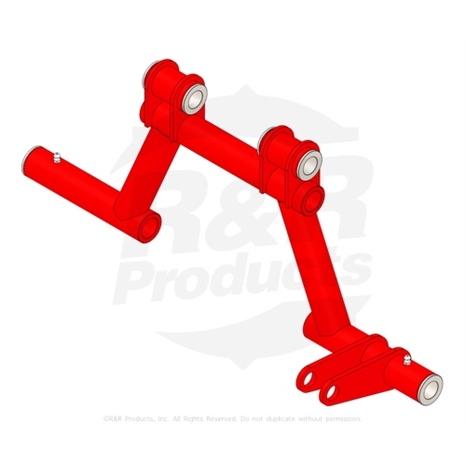

TUBE ASSY W/BUSHINGS

R108-5472

€ 97,61*

#20

BUSHING-SPLIT

R256-311

€ 30,56*

#21

Washer - 1/2 in

R3256-26

€ 0,99*

#22

Bolt - hex hd 1/2-13 x 1-1/4

R325-5

€ 1,54*

#23

Use R32128-19

R104-8301

€ 1,33*

#24

Bolt - hex hd 3/8-16 x 2

R323-10

€ 0,99*

#24

BOLT - HEX HD 3/8-16 X 1-3/4

R323-9

€ 1,43*

#25

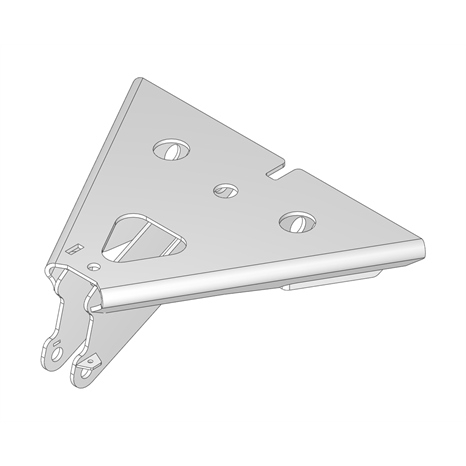

HITCH FRAME ASSY

R108-6860-03

€ 622,96*

#26

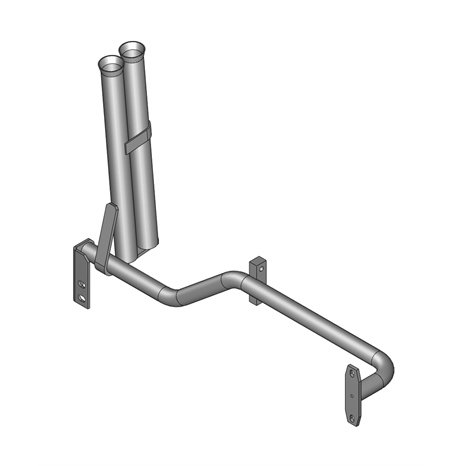

REAR TUBE ASSY

R110-3375

€ 977,63*

#27

PIN - CYLINDER

R18-7310

€ 31,97*

#28

Plug-expansion

R110-3365

€ 7,42*

#29

BUSHING

R95-3577

€ 10,78*

#30

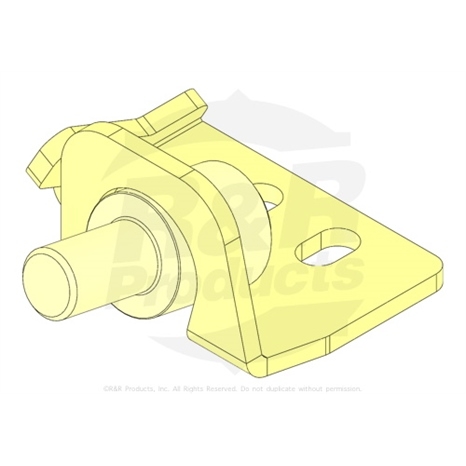

PIVOT PIN - ASSY

R114-4319

€ 110,16*

#30

PIVOT PIN ASSY

R114-0619

€ 155,30*

#31

BOLT - HEX HD 1/2-13 X 1

R325-4

€ 1,48*

#32

BOLT - HEX HD 3/8-16 X 3/4

R400258

€ 1,39*

#32

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€ 2,82*

#33

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€ 0,33*

#33

WASHER - FLAT 5/16 SAE

R453009

€ 0,38*

#34

O-RING

R237-22

€ 0,98*

#35

FITTING - HYD 90 DEG

R340-132

€ 23,52*

#36

O-ring

R237-21

€ 0,76*

#37

HYD HOSE ASSY

R95-8837

€ 113,66*

#38

WASHER - ISOLATOR BUSHING

R63-8410

€ 1,23*

#39

Bolt - hex hd 3/8-16 x 7/8

R400260

€ 2,02*

#40

HYD HOSE ASSY

R100-3833

€ 120,69*

#41

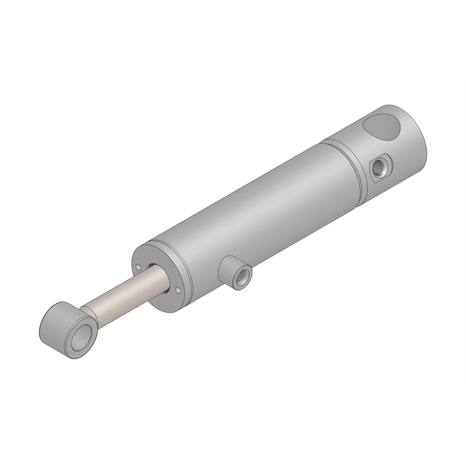

HYDRAULIC CYLINDER

R110-1338

€ 762,72*

#42

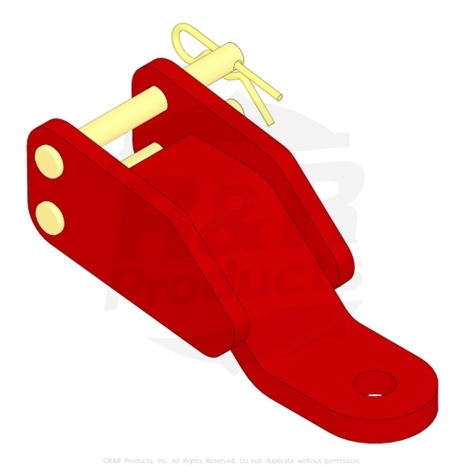

HITCH TOW BAR ASSY

R110-1375

€ 360,76*
