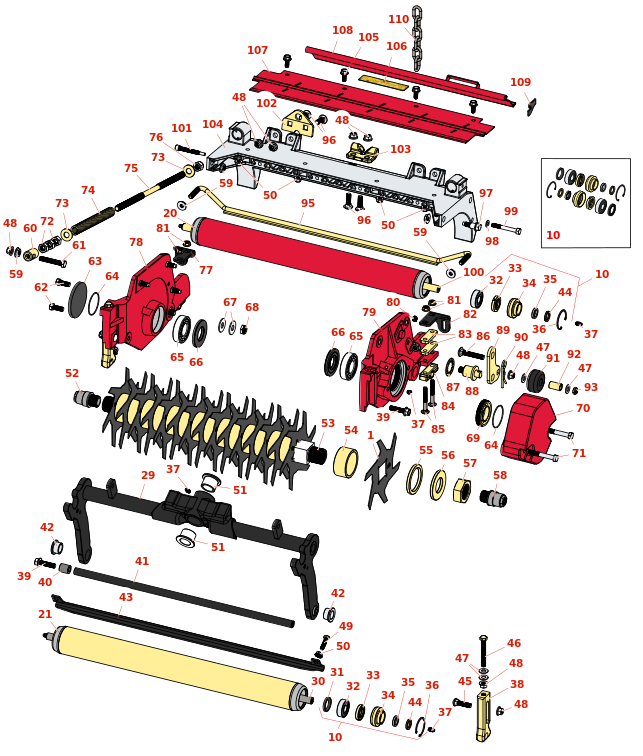

Toro Reelmaster 6500D Verti Cut Reel Frame

Kies hier uw tekening

2 tekeningen beschikbaar

Blade - carbide tip

R106-8625

€ 45,30*

Blade - vertical mower 1/16X7.25

R93-3038-03

€ 6,39*

#10

Overhaul kit - roller

R106-9606

€ 168,46*

#20

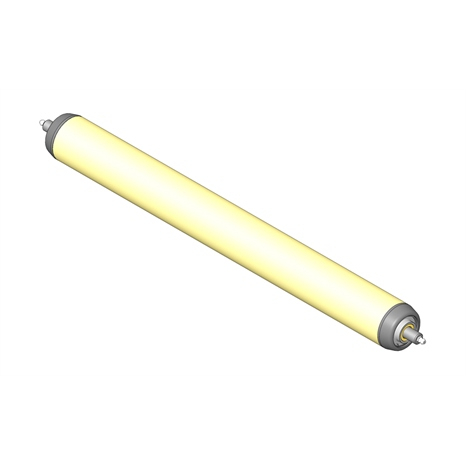

Roller - smooth tubular steel

R107-4040

€ 440,40*

#21

Roller assy - 2.5 solid front

R110-9614

€ 476,26*

#29

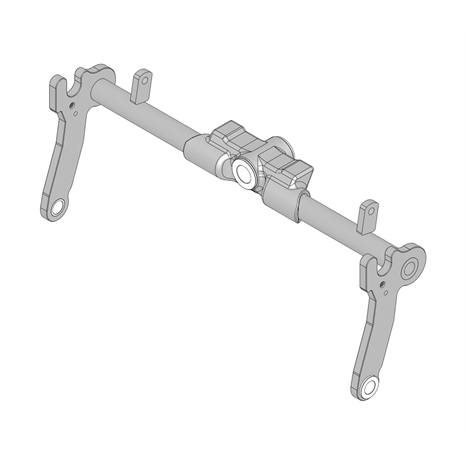

Carrier frame assy

R110-9713

€ 1.056,74*

#30

Shaft - front roller

R110-4053

€ 140,51*

#31

Seal

R93-3007

€ 7,25*

#32

BEARING - BALL

R343667

€ 29,04*

#33

Seal

R93-1251

€ 15,31*

#34

Seal - outer

R93-1252

€ 30,06*

#35

Seal

R253-70

€ 7,45*

#36

Ring - retaining

R32120-62

€ 2,73*

#37

Fitting - grease 471214

R302-5

€ 1,02*

#38

Bracket - front roller

R107-2952

€ 78,30*

#39

BOLT - HEX WASHER 3/8-16X1-3/4

R3234-19

€ 2,63*

#40

Spacer - frame

R108-4279

€ 17,30*

#41

Shaft - support

R108-4284

€ 84,93*

#42

BUSHING - FLANGED

R93-2877

€ 5,29*

#43

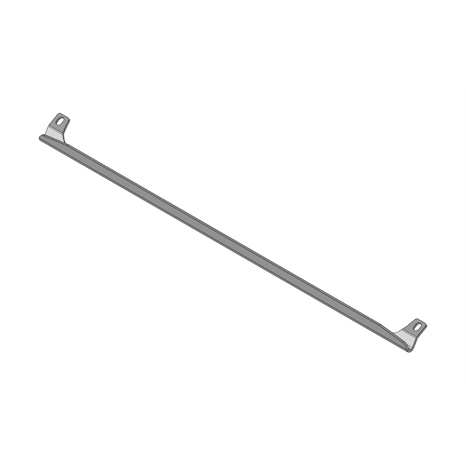

Scraper - full front 2.5 in

R108-4475-03

€ 77,32*

#44

WASHER - ROLLER SEAL

R93-2931

€ 5,78*

#45

BOLT - CARRIAGE 3/8-16 X 1-1/2

R3231-4

€ 3,41*

#46

Bolt - hex tap 3/8-16 x 2-3/4

R112-7451

€ 4,45*

#47

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€ 0,33*

#48

Use R32128-19

R104-8301

€ 1,33*

#49

BOLT - HEX HD 5/16-18 X 1-1/8

R322-16

€ 4,24*

#50

NUT - SERRATED WASHER

R445722

€ 1,57*

#51

Bushing - flanged

R94-1291

€ 9,39*

#52

Insert - rh - verti-cut shaft

R108-4978

€ 177,14*

#53

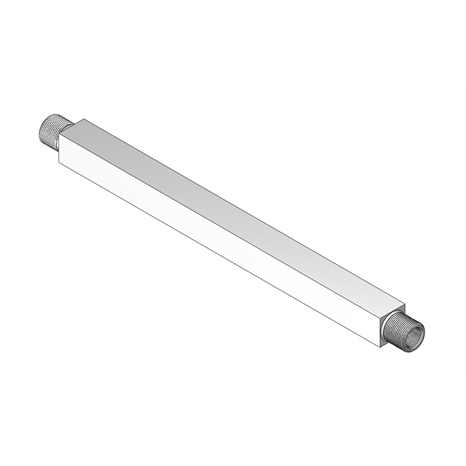

Shaft assy - v-cut

R108-4975

€ 409,04*

#54

Spacer - verticut shaft 1.2 in

R105-0172

€ 27,07*

#55

SPACER - VERTICUT SHAFT 1/4 IN

R105-0177

€ 12,96*

#56

WASHER - VERTICUT SHAFT 1/4 IN

R105-0173

€ 33,89*

#57

NUT - JAM 1-3/8-12

R3220-25

€ 47,42*

#58

Insert - lh - verti-cut shaft

R108-4977

€ 177,14*

#59

NUT - FLANGED WHIZ - 3/8-16

R32128-43

€ 1,00*

#60

TUBE - SPRING

R99-8662

€ 30,02*

#61

Bolt - hex hd 3/8-16 x 2-1/4

R104-3396

€ 3,32*

#62

BOLT - HEX HD 3/8-16 X 1 GR5 YZ

R323-6

€ 0,93*

#63

PLUG - PLASTIC SPINDLE HOUSING

R94-2703

€ 3,05*

#64

O-ring

R112-6967

€ 4,32*

#65

Bearing

R93-2489

€ 29,56*

#66

SEAL - GREASE

R107-4028

€ 34,36*

#67

WASHER - FLAT 7/16

R453013

€ 0,87*

#68

NUT - 1/2-20 ESNA JAM

R3296-28

€ 2,03*

#69

Nut - bearing adjuster

R107-2954

€ 26,32*

#70

Weight

R108-4269-01

€ 220,45*

#71

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€ 2,82*

#72

Nut - 1/2-13 hex jam zinc

R443818

€ 1,05*

#73

Washer - flat 1/2

R453017

€ 0,81*

#73

WASHER - FLAT 1/2

R87-7270-01

€ 0,82*

#74

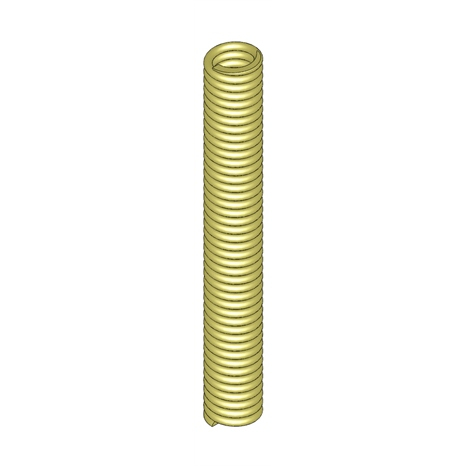

Spring

R110-4079

€ 19,26*

#75

ROD-SPRING

R99-8661

€ 49,56*

#76

LOCKNUT - ESNA 1/2-13

RF5003

€ 2,11*

#77

Bracket - scraper - rh

R107-3281

€ 40,23*

#78

Side plate - rh

R110-9631

€ 466,37*

#79

Side plate - lh

R110-9630

€ 469,59*

#81

Locknut - 5/16-18 flanged y/zinc

R104-8300

€ 0,76*

#82

Bracket - scraper - lh

R107-3279

€ 40,23*

#83

Shim - 1/4 - rear roller hoc

R106-3925

€ 10,53*

#84

Bracket - rear roller

R106-3924

€ 36,63*

#85

BOLT - CARRIAGE 5/16-18 X 1-1/2

RP17609-2

€ 0,83*

#86

BOLT - CARRIAGE 3/8-16 X 2-1/4

R3231-7

€ 7,31*

#87

WASHER - 1 IN INTERAL STAR

R3254-21

€ 5,00*

#88

Pin - roller mounting

R108-4289

€ 82,49*

#89

Bracket - adj

R108-4286

€ 24,66*

#90

PIN - BRIDGE - SNAP

R3290-355

€ 4,40*

#91

Roller - verti-cut

R108-4293

€ 15,02*

#92

SPACER - WHEEL

R59-2580

€ 12,97*

#93

LOCKNUT - 3/8-16 NYLON JAM

R3296-59

€ 1,55*

#95

Scraper - rear roller

R107-2999

€ 71,28*

#96

Bolt - carriage 3/8-16 x 1-1/4

R3231-25

€ 1,06*

#97

Bolt - shoulder

R107-2979

€ 5,09*

#98

Washer - flat

R3256-74

€ 1,06*

#99

BOLT - HEX HD 5/16-18 X 3 GR5

R322-14

€ 3,05*

#100

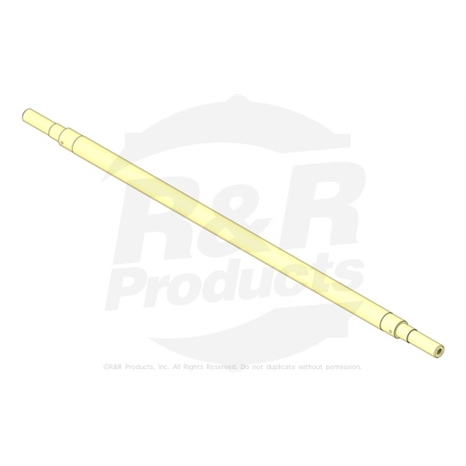

Shaft - rear long roller

R107-3296

€ 135,76*

#101

Bolt - soc hd cap 5/16-18 x 2-1/2

R107-7773

€ 16,38*

#102

Bracket

R110-4069

€ 8,35*

#103

Bracket - chain

R110-4058

€ 46,54*

#104

Frame

R107-3258

€ 505,02*

#105

Bolt - 5/16-18X3/4 hx ser was hd

R3234-5

€ 1,23*

#106

DECAL - WARNING

R93-6688

€ 4,61*

#107

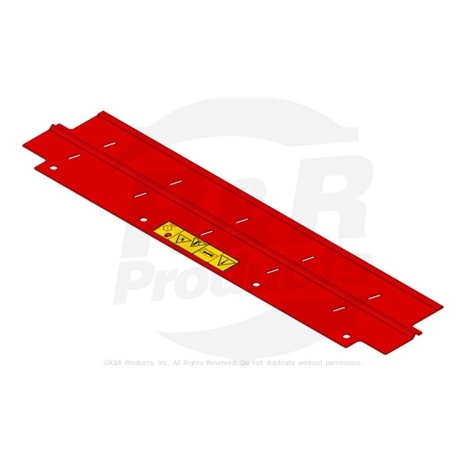

Grass shield - front

R107-2996

€ 89,33*

#108

Grass shield assy - rear

R107-7779-01

€ 153,33*

#109

Tab - stop - shield

R108-4961

€ 59,16*

#110

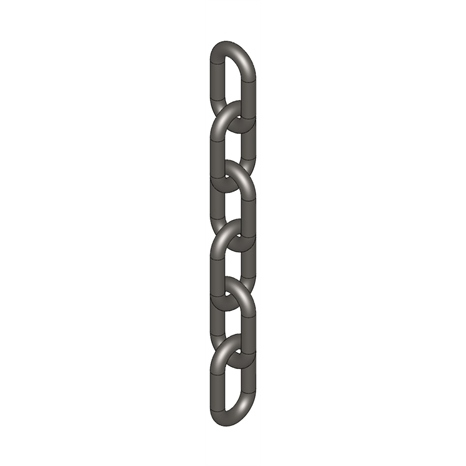

Chain

R114-3972

€ 10,20*
