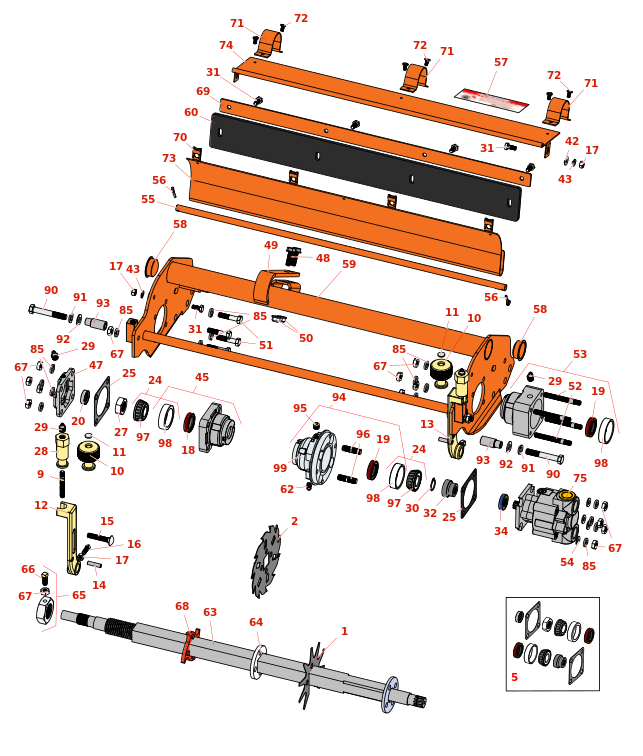

Jacobsen LF 100 Verti Cut Reel Frame

Kies hier uw tekening

2 tekeningen beschikbaar

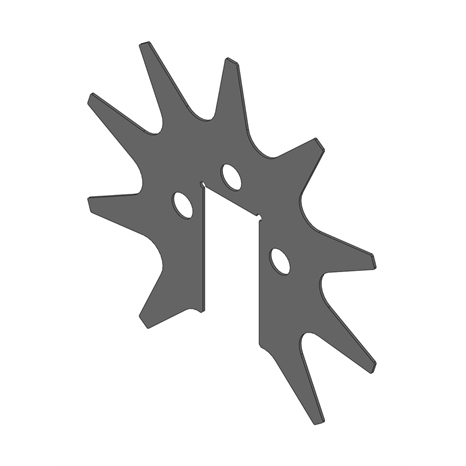

RDM-Jacobsen Green King IV and V – Verticut Blade

RDM-335449

€ 11,37*

BLADE - VERTICAL SLOTTED

R335449

€ 17,39*

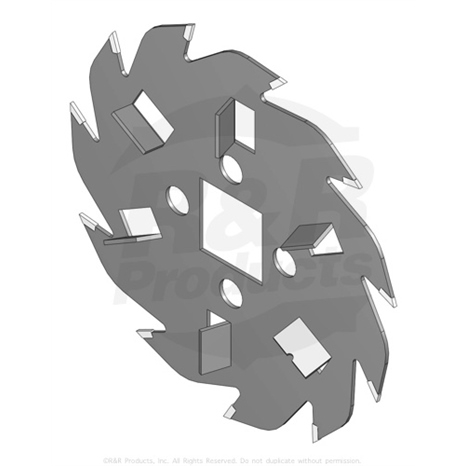

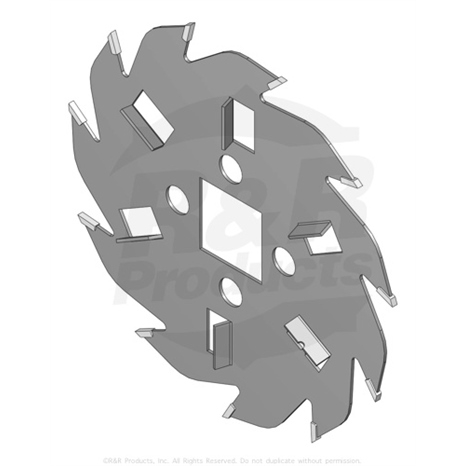

VERTI-CUT BLADE - CARBIDE TIPPED 2MM

R101209C

€ 36,07*

VERTI-CUT BLADE - CARBIDE TIPPED 1MM

R101109C

€ 37,34*

OVERHAUL KIT - VERTI-CUT UNIT

R506565

€ 96,62*

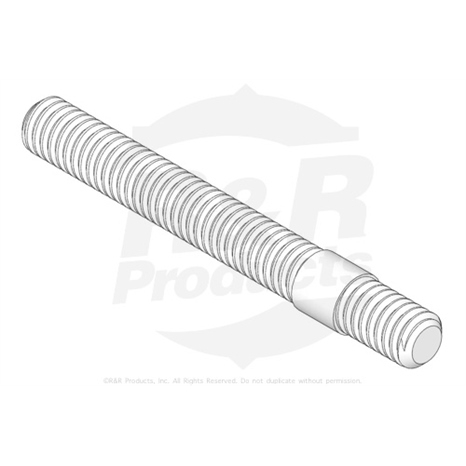

STUD

R343616

€ 17,13*

#10

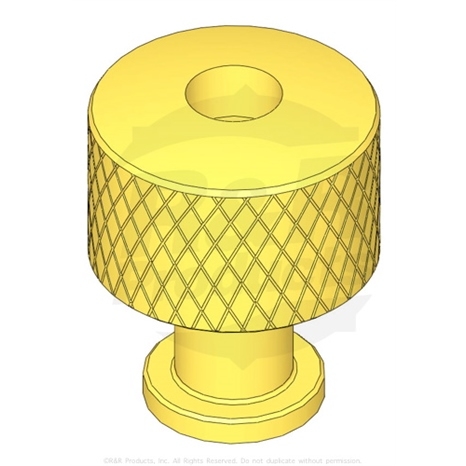

KNOB - ADJUSTING

R343617

€ 43,77*

#11

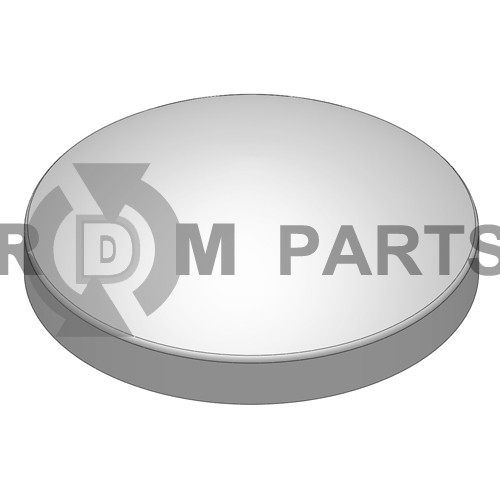

PLUG - ADJUSTING KNOB

R472518

€ 1,29*

#12

BRACKET - RH FRONT ROLLER

R153980

€ 105,50*

#13

BRACKET - LH FRONT ROLLER

R153979

€ 105,50*

#14

PIN - 1/4 X 1

R461256

€ 1,67*

#15

Screw - 5/16-18 x 1-3/4 carriage

R441674

€ 2,01*

#16

SCREW - SET 1/4 X 7/8 SQ HEAD

R352737

€ 1,65*

#17

NUT - 1/4-20 YELLOW ZINC

R443102

€ 0,58*

#18

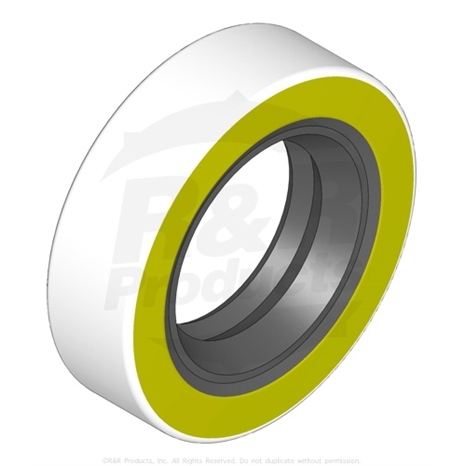

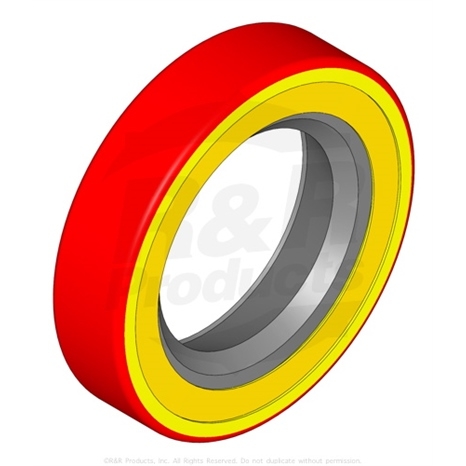

SEAL

R325472

€ 11,58*

#19

SEAL

R336962

€ 13,32*

#20

SEAL

R315257

€ 14,14*

#24

BEARING - WITH CUP

R500534

€ 28,85*

#25

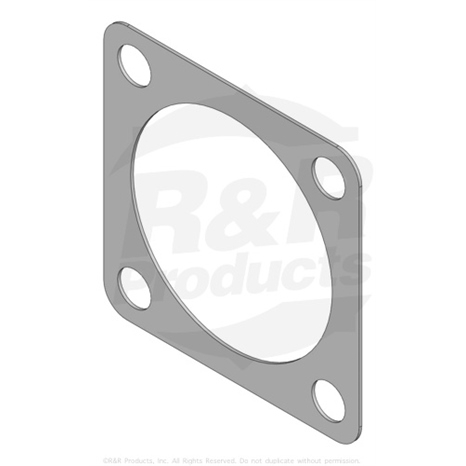

GASKET - REEL MOTOR

R345473

€ 1,69*

#27

Nut - 3/4-16 gripco cntrloc

R444742

€ 5,80*

#28

KNOB - ADJUSTING ROLLER

R365009

€ 45,93*

#29

ZERK - GREASE

R471219

€ 0,87*

#30

Ring - retaining reel

R458013

€ 1,29*

#31

BOLT - HEX HD 1/4-20 X 5/8

R400106

€ 0,70*

#32

R4247911

€ 13,32*

#34

SEAL - HIGH PRESSURE - REEL MOTOR

R353-585

€ 43,14*

#42

Washer - flat 1/4

R453023

€ 0,36*

#43

WASHER - LOCK 1/4

R3253-3

€ 0,15*

#45

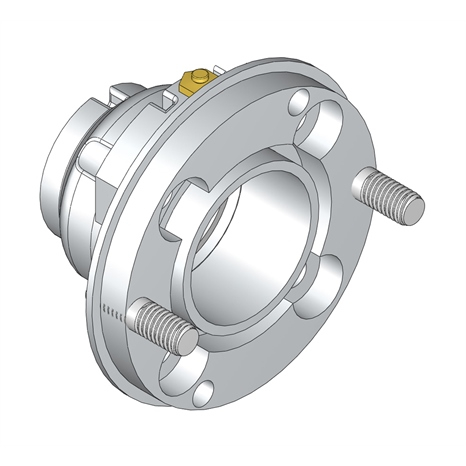

HOUSING - REEL BEARING SHORT

R239055

€ 103,89*

#47

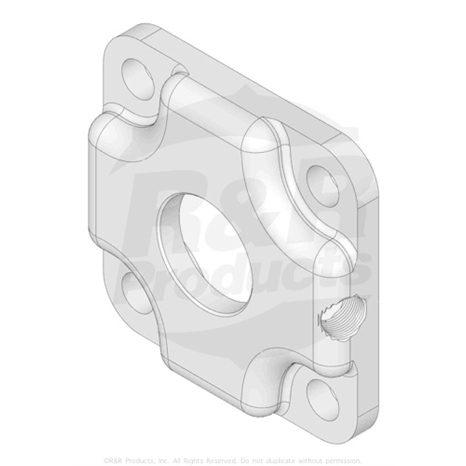

CAP - BEARING HOUSING V-CUT

R269025

€ 93,33*

#48

BOLT - SERRATED WASHER HD

R403751

€ 3,12*

#49

STOP - MOWER

R354928

€ 38,05*

#50

NUT - SERRATED WASHER

R445722

€ 1,57*

#51

BOLT - HEX HD 5/16-18 X 1-1/2

R400192

€ 1,21*

#52

STUD - REEL BRG HOUSING

R361097

€ 15,62*

#53

R162558

€ 144,67*

#54

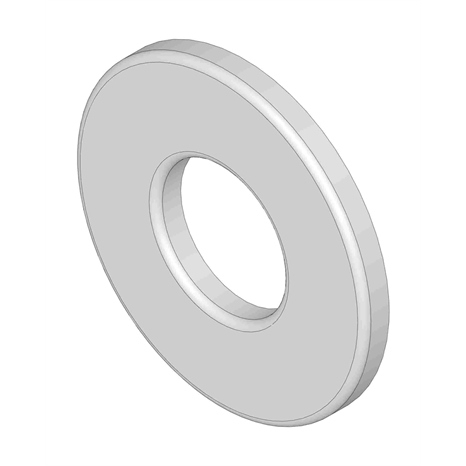

WASHER - FLAT 5/16 SAE

R453009

€ 0,38*

#54

WASHER - FLAT 5/16 USS

R310266

€ 0,61*

#55

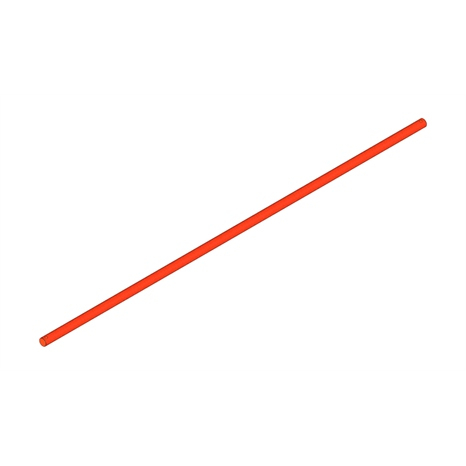

ROD - V-CUT GRASS SHIELD

R351521

€ 35,65*

#56

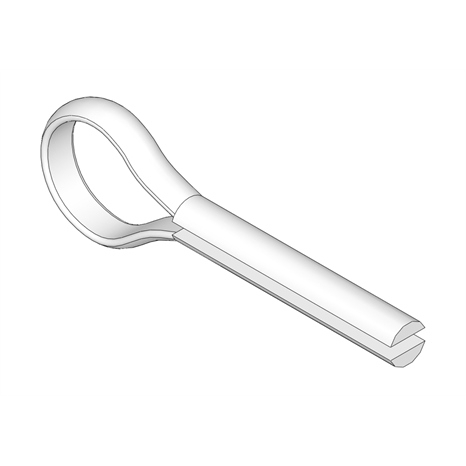

PIN - COTTER 1/8 X 3/4

R460026

€ 0,68*

#57

DECAL - DANGER

R354083

€ 2,82*

#58

Plug - pipe frame

R285-14

€ 5,43*

#59

Frame -

R122685

€ 926,67*

#60

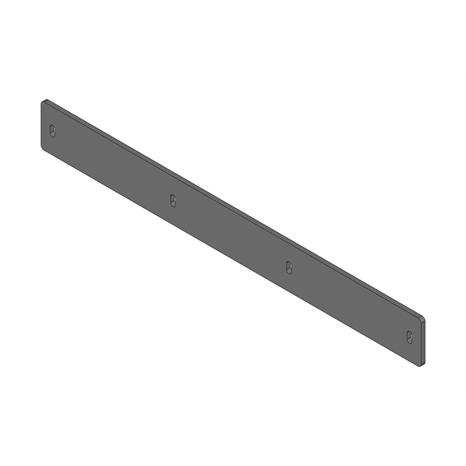

SCRAPER - RUBBER V-CUT

R351522

€ 33,15*

#62

Fitting - grease 471214

R302-5

€ 1,02*

#63

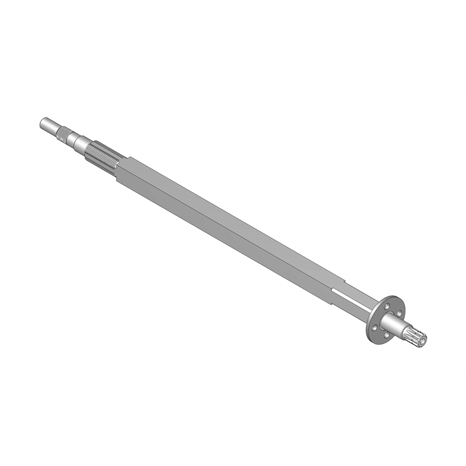

Shaft - 22 in vertical mower

R131161

€ 473,26*

#64

SPACER - NYLON V-CUT SHAFT

R352221

€ 3,96*

#65

NUT - V-CUT SHAFT

R352437

€ 28,91*

#66

SCREW - SQ. HD SET

R412017

€ 2,89*

#67

Nut - 5/16-18 y/zinc plated

R443106

€ 0,51*

#68

SPACER - 1/4 VENTILATED V-CUT

R101230

€ 8,41*

#69

RETAINER - SCRAPER

R351526

€ 33,20*

#70

NUT - 1/4-20 TINNERMAN

R445260

€ 2,69*

#71

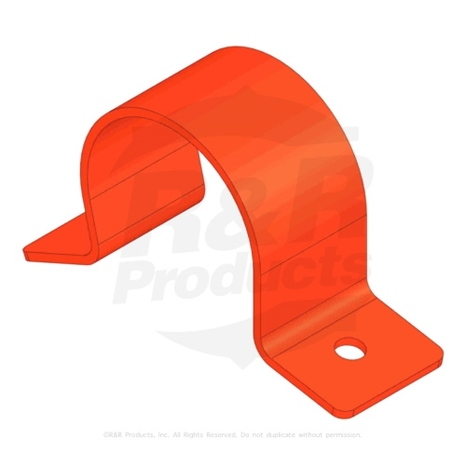

CLIP - V-CUT SHIELD

R351520

€ 14,27*

#72

SCREW - NO.10 X 3/8 SLOTTED

R409020

€ 0,63*

#73

SHIELD - REAR GRASS

R335214

€ 123,21*

#74

SHIELD - FRONT GRASS V-CUT

R158823

€ 131,36*

#75

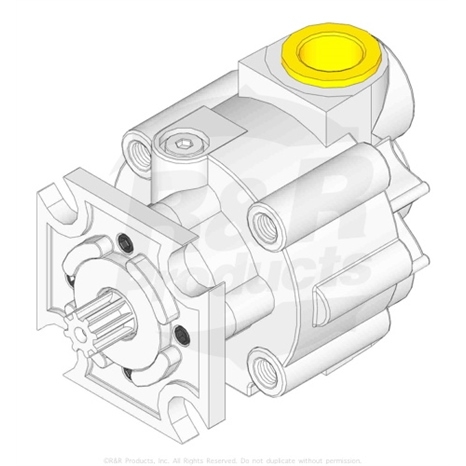

Motor - reel

R122164

€ 991,61*

#85

WASHER - LOCK 5/16 ZINC

R446136

€ 0,40*

#90

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€ 2,82*

#91

Washer - lock 3/8

R3254-6

€ 0,13*

#92

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€ 0,33*

#93

SPACER - MOWER MOUNTING ASSY

R101525

€ 15,28*

#94

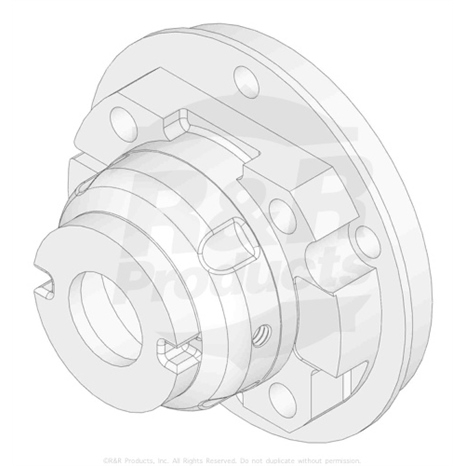

HOUSING - BEARING MOTOR END

R101328

€ 234,66*

#96

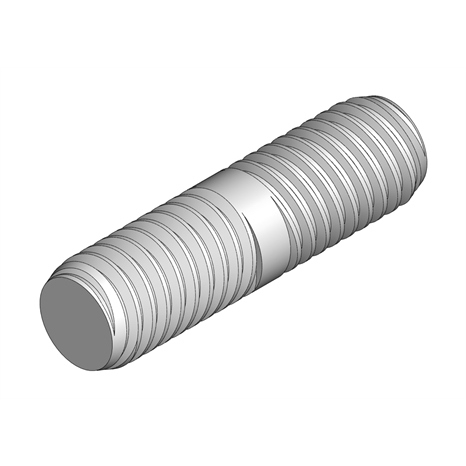

STUD - HOUSING

R101327

€ 9,73*

#97

BEARING - TAPERED

R254-78

€ 8,77*

#98

R254-79

€ 7,96*

#99

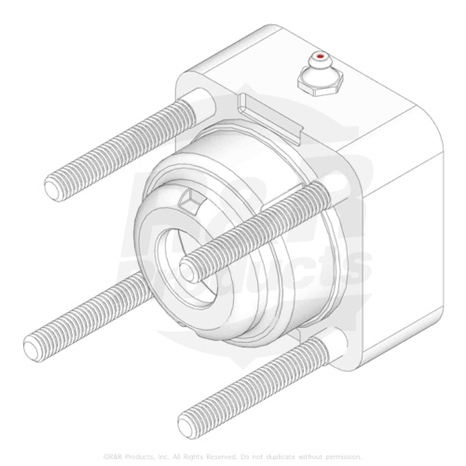

HOUSING - REEL BRG MOTOR END

R164146

€ 9,24*
