Jacobsen Greens King V - VI Verti-Cut Unit

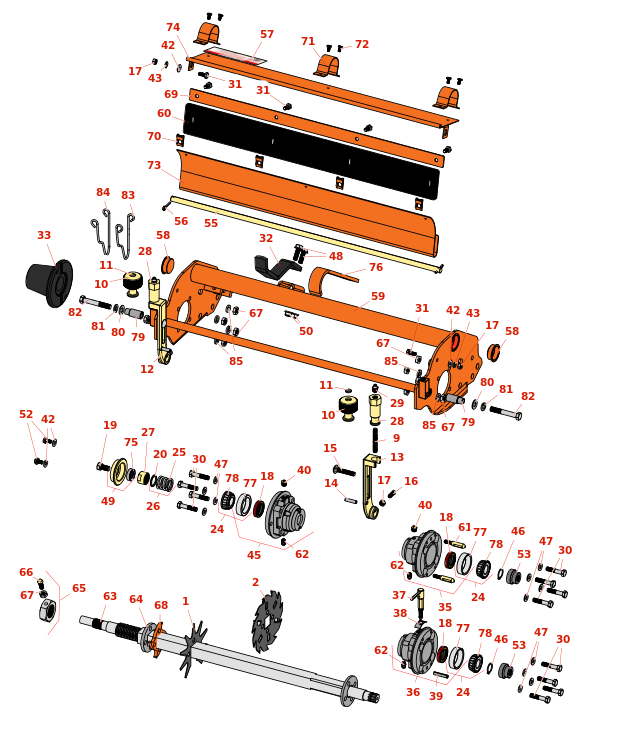

Jacobsen Greens King V VI Reel Frame

Jacobsen Greens King V VI Complete Verti Cut Unit

RDM-Jacobsen Green King IV and V – Verticut Blade

RDM-335449

€ 11,37*

Frame -

R122685

€ 926,67*

Shaft - 22 in vertical mower

R131161

€ 473,26*

SPACER - MOWER MOUNTING ASSY

R101525

€ 15,28*

Bolt - hex hd 3/8-16 x 2-1/2 GR5

R101526

€ 2,82*

HOUSING - BEARING MOTOR END

R1002564

€ 258,93*

PIN - ASSY QUICK RELEASE

R1002607

€ 58,23*

SEAL - SPACER ASSY

R1003467

€ 31,54*

HOUSING - BEARING QUICK CLIP

R1004786

€ 247,07*

VERTI-CUT BLADE - CARBIDE TIPPED 1MM

R101109C

€ 37,34*

VERTI-CUT BLADE - CARBIDE TIPPED 2MM

R101209C

€ 36,07*

Complete standard verti-cut unit - rh

R101218

€ 4.428,44*

Custom verti-cut unit -

R101218-SPL

€ 3.420,91*

SPACER - 1/4 VENTILATED V-CUT

R101230

€ 8,41*

HOUSING - REEL BEARING

R164144

€ 214,98*

HOUSING - REEL BRG MOTOR END

R164146

€ 9,24*

BRACKET - LH FRONT ROLLER

R153979

€ 105,50*

BRACKET - RH FRONT ROLLER

R153980

€ 105,50*

SHIELD - FRONT GRASS V-CUT

R158823

€ 131,36*

WASHER - FLAT 5/16 SAE

R453009

€ 0,38*

WASHER - FLAT 3/8 SAE Y/ZINC

R453011

€ 0,33*

PIN - COTTER 1/8 X 3/4

R460026

€ 0,68*

PIN - 1/4 X 1

R461256

€ 1,67*

PIN - ROLL 1/4 X 1-1/4

R461397

€ 1,67*
