Toro Z Master Professional 5000 52in Side Discharge Deck

Wählen Sie hier Ihre Zeichnung

2 Zeichnungen verfügbar

#20

BELT- V

R115-7426

279,72 €*

#30

R108-1117 rotary blade kit - 18 in high-flow s...

R108-1117

196,04 €*

#30

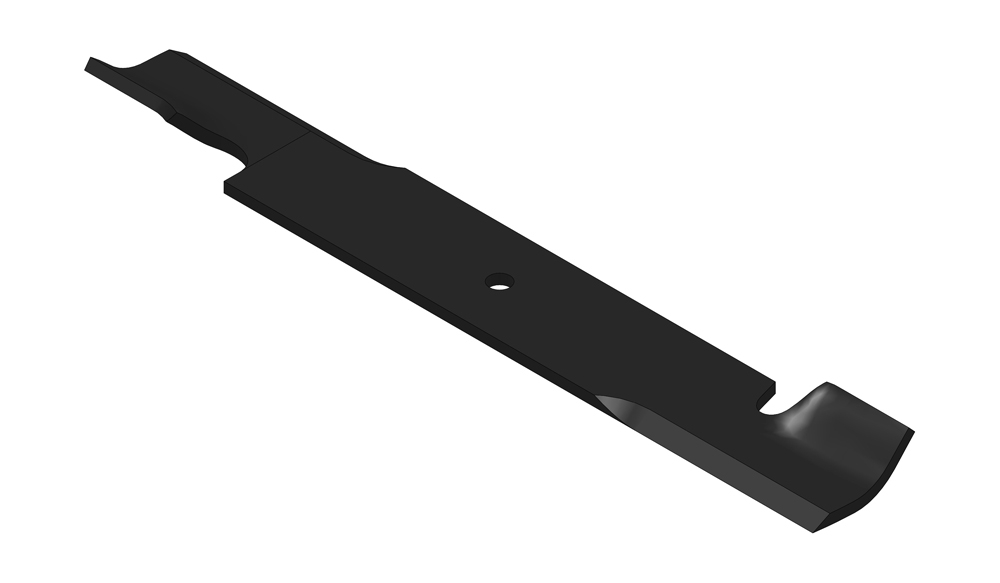

BLADE-18 INCH (HI FLOW)

R105-7781-03

59,25 €*

#30

R105-7779-03 rotary blade - 18 in recycler

R105-7779-03

63,49 €*

#30

Blade fits Toro TO105-7781-03

RDM-105-7781-03

47,67 €*

#30

R110-0408 rotary blade kit - 18 in recycler set/6

R110-0408

209,94 €*

#40

Frontrad, cpl.

R68-2730

34,56 €*

#40

Wheel - front assy

RDM68-2730

20,85 €*

#41

R109-9127 tire & wheel - 13x6.50-6 flat free

R109-9127

311,28 €*

#41

Antilek wiel 13x5.00-6

RDM-109-9127

393,40 €*

#70

PLATE-HINGE, FRONT

R106-3253-01

46,54 €*

#71

Mutter

R104-8301

1,33 €*

#72

PLATE-HINGE, REAR

R108-4059-01

28,75 €*

#73

R106-3246-01 deflector

R106-3246-01

118,71 €*

#74

DEFLECTOR - LONG

R151416

125,96 €*

#75

STRAP - DISCHARGE

R106-3248-03

28,50 €*

#76

Bolzen

R3231-4

3,41 €*

#77

R108-2792 rubber deflector assy

R108-2792

461,52 €*

#78

Sicherungsmutter 5/16-18

R3296-47

0,86 €*

#79

SPRING - TORSION

R108-4052

36,63 €*

#80

BOLT - HX HD 5/16-18 X 7 1/2

R322-50

9,80 €*

#81

Spacer - Wheel

R98-5967

14,92 €*

#82

R108-5388 bolt - hx hd 3/8-16 x 7 1/2

R108-5388

22,89 €*

#83

R115-7455-01 baffle assy

R115-7455-01

209,27 €*

#84

BOLT - CARRIAGE 3/8-16 X 7/8

R3231-27

0,87 €*

#85

istanzbuchse

R98-7913

8,95 €*

#86

Hülse

R98-7912

9,01 €*

#87

BOLT - HEX HD 3/8-16 X 4-1/2

R323-23

3,40 €*

#88

Bolzen f. Sichelmesser

R51-4060

6,84 €*

#89

WASHER - BLADE BOLT HD

R103-0865

11,60 €*

#90

SPINDLE SHAFT AND ZERK ASM

R119-8527

88,95 €*

#91

SEAL - OIL

R253-133

12,31 €*

#92

Toro mesaslager

RDM-119-8558

17,50 €*

#92

R119-8558 bearing - ball - special

R119-8558

24,44 €*

#93

SPACER

R117-6184

12,28 €*

#94

R119-8532 snap ring

R119-8532

9,73 €*

#95

R117-6172 spindle hub assy w/studs

R117-6172

73,54 €*

#96

R92-5836 flat washer - hardened

R92-5836

9,57 €*

#97

LOCKNUT - 3/4-16 HEAVY JAM

R3296-67

6,06 €*

#98

Schmiernippel

R471219

0,87 €*

#99

R119-8560 spindle assy

R119-8560

573,20 €*

#100

R115-7450 pulley - 6.75 in dia with 1.75 bore

R115-7450

88,28 €*

#101

BOLT- RIBBED NECK

R114-8195

2,76 €*

#102

Sicherungsmutter 3/8-16

R32128-43

1,00 €*

#103

MOUNT-PULLEY

R112-4212

18,32 €*

#104

BOLT - 3/8-16 X 2 1/4 GR5

R323-11

1,34 €*

#105

SPACER

R104-0151

24,81 €*

#106

R116-6317 spring - extension

R116-6317

48,58 €*

#107

ANCHOR - SPRING - TALL

R114-5867

29,80 €*

#108

FORK - CASTER

R116-8888

203,33 €*

#109

WASHER - SPRING DISC

R1-633508

4,39 €*

#110

R103-3051 spacer - nut - hardened

R103-3051

17,80 €*

#111

R103-2768 guard - seal

R103-2768

8,71 €*

#112

R103-0063 seal - grease

R103-0063

11,82 €*

#113

AXLE- CASTER

R103-5156

25,37 €*

#114

BOLT - HX HD 1/2-13 X 9 1/2

R325-39

20,46 €*

#115

Nut - Nylon Lock 3/4-10

R3296-51

7,24 €*

#116

BAFFLE - DISCHARGE

R107-8541-01

33,96 €*

#117

Spindellager

R254-94

10,13 €*

#118

Seal

RDM-1-543511

12,66 €*

#118

SEAL- GREASE

R1-543511

13,32 €*

#119

Sicherungsmutter

RF5003

2,11 €*

#120

R109-7952 deck strut assy

R109-7952

196,46 €*

#121

R109-5013 panhard rod assy

R109-5013

201,45 €*

#122

NUT - 7-16-14 HX SERR FL

R32128-37

4,69 €*

#123

Bolzen

R325-17

4,39 €*

#124

R109-5009 bushing - suspension - rubber

R109-5009

6,97 €*

#125

R116-0797-03 link-lift - deck

R116-0797-03

225,62 €*

#126

R116-0780 bolt - hx hd fl shoulder

R116-0780

20,62 €*

#127

WASHER, 3/4 SA

R453022

1,29 €*

#128

Mutter, 1/2-13

R32128-23

2,11 €*

#129

R109-5010 spacer

R109-5010

9,73 €*

#130

R112-4230-01 plate- skid

R112-4230-01

142,27 €*

#131

R3233-34 carriage bolt - 1/2-13 x 2 1/2 grade 5

R3233-34

17,44 €*

#132

R116-0886 spring - extension

R116-0886

216,58 €*

#133

Lager

R254-78

8,77 €*

#134

Lagerring f. Timken Lager R254-94

R254-72

5,49 €*

#135

R115-7461-01 baffle assy

R115-7461-01

323,22 €*

#136

R116-0459-03 lift - rear deck

R116-0459-03

568,65 €*

#137

R114-5870 idler arm assy

R114-5870

289,67 €*

#138

R1-303514 bearing - flanged

R1-303514

30,60 €*

#140

R109-9066 yoke - adjust - deck

R109-9066

12,39 €*
