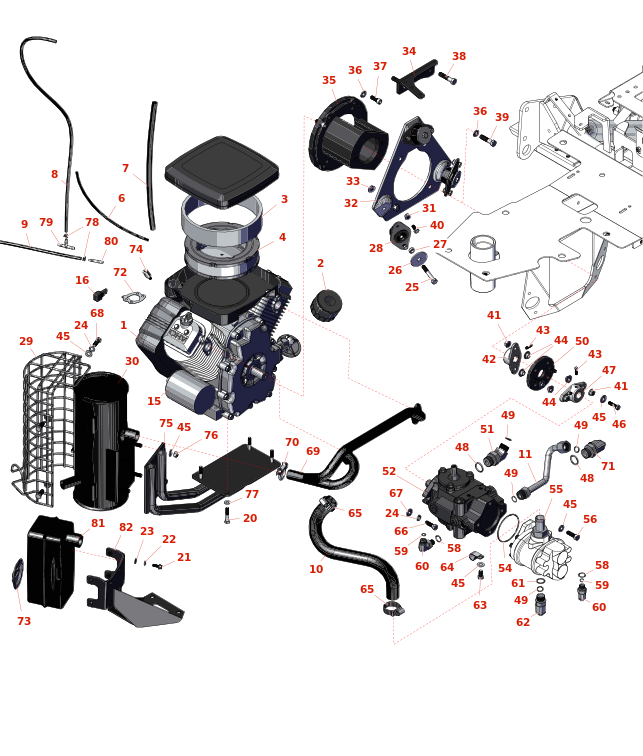

Toro Greensmaster 3150 Q Engine Hydrostat

Wählen Sie hier Ihre Zeichnung

18 Zeichnungen verfügbar

B-s engine 18 hp

RS3564473079G1

3.450,24 €*

SilverGuard Oil Filter

RRF10602

26,43 €*

SilverGuard Foam Pre-Filter

RRF10405

8,72 €*

B&S Schaumstoff-Filter

RS272490S

13,54 €*

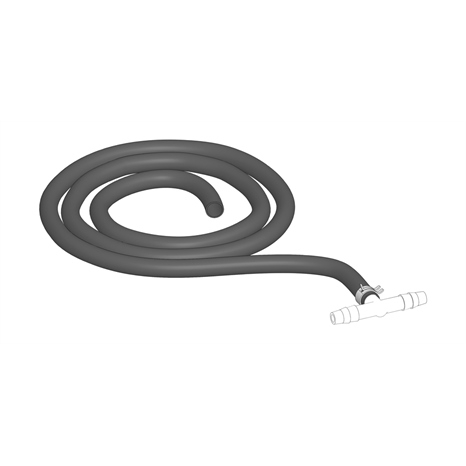

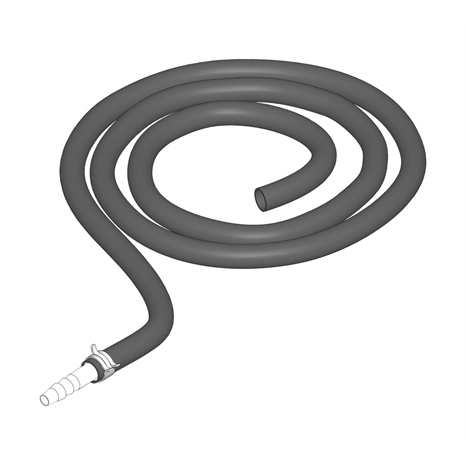

HOSE-FUEL

R109-0296

17,25 €*

HOSE - FUEL

R114-4028

28,50 €*

HOSE ASSY

R121-2584

78,40 €*

HOSE ASSY

R121-2585

73,64 €*

#10

HOSE - INLET - PUMP

R105-8285

154,25 €*

#11

TUBE-HYD, TRACTION

R105-8307

119,55 €*

#20

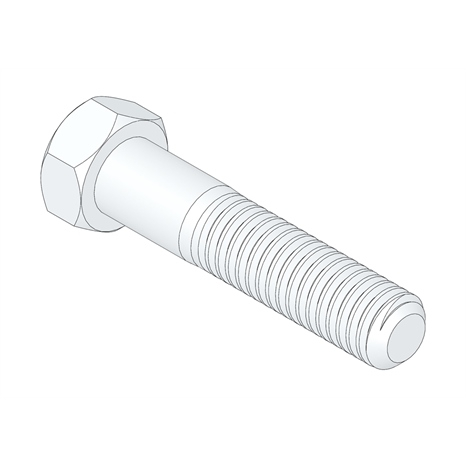

BOLT - HEX HD 5/16-18 X 2

R322-10

1,05 €*

#20

BOLT - HEX HD 5/16-18 X 1-3/4

R101344

3,07 €*

#21

BOLT - HEX WASHER 1/4-20 X 3/4

R49-2040

1,69 €*

#22

Unterlegscheibe 1/4"

R3253-3

0,15 €*

#23

Scheibe 1/4

R453023

0,36 €*

#24

Scheibe, 3/8

R3253-21

0,24 €*

#25

BOLT - HEX HD 3/8-16 X 2-3/4 GR5

R323-13

2,26 €*

#25

Bolzen 3/8-16X2 1/2 GR5

R101526

2,82 €*

#26

WASHER - ENGINE

R83-1040

4,61 €*

#27

SPACER

R83-1050

12,26 €*

#28

MOUNT - ENGINE

R93-5265

82,40 €*

#29

SHIELD - MUFFLER

R112-0291

75,79 €*

#30

MUFFLER

R110-4001

1.000,20 €*

#31

Mutter

R445722

1,57 €*

#32

Mounting plate - engine

R85-8120-03

167,86 €*

#33

Sicherungsmutter 3/8-16

R32128-43

1,00 €*

#34

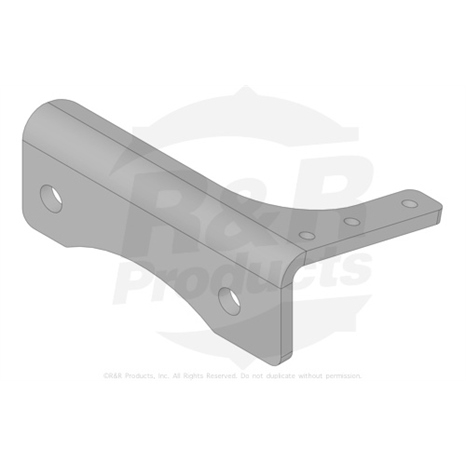

BRACKET-SPRING

R105-4307-03

63,27 €*

#35

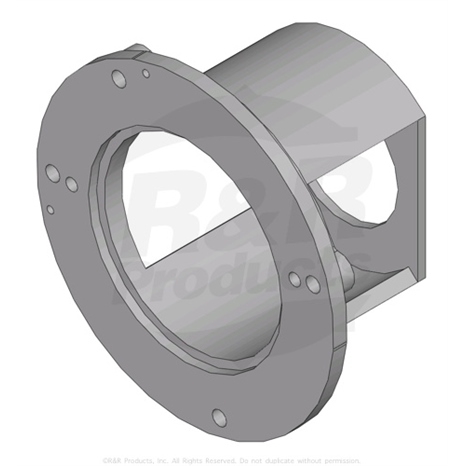

ADAPTER - PUMP

R83-1060-03

414,01 €*

#36

WASHER - LOCK 7/16 ZINC

R3253-6

0,73 €*

#37

SCREW - SOC HD CAP 3/8-16 X 1

R3274-7

2,13 €*

#38

BOLT - HX HD 7/16-14 X 2

R324-8

5,86 €*

#39

BOLT - HEX HD 7/16-14 X 1-3/4 GR5

R324-7

2,17 €*

#40

Bolzen 5/16-18X3/4

R322-3

1,56 €*

#41

Mutter, 5/16-18 ESNA Y ZNC

R3296-29

2,12 €*

#42

Arm für Motor

R27-1960

53,99 €*

#43

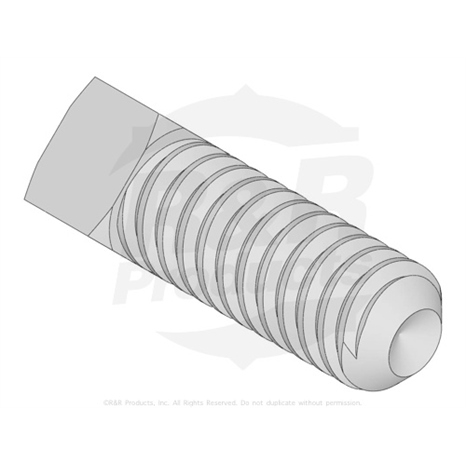

SET SCREW - 1/4-20 X 1/2 SQ HD NYLOC

R3241-7

3,05 €*

#43

SCREW - SET SQ.HD. 1/4 X 5/8

R3241-2

2,69 €*

#44

istanzstück Pumpe

R27-6600

7,33 €*

#45

Unterlagscheibe 3/8 sae

R453011

0,33 €*

#46

Bolzen, Abdeckung

R400190

1,15 €*

#47

HUB-TAPERED BORE

R119-4485

193,88 €*

#47

Hub

R110-5227

53,03 €*

#48

O-Ring

R237-81

3,17 €*

#49

O-RING

R237-65

0,99 €*

#50

Gummikupplung, Pumpe

R44-2230

56,39 €*

#51

FITTING - HYD

R340-156

68,75 €*

#52

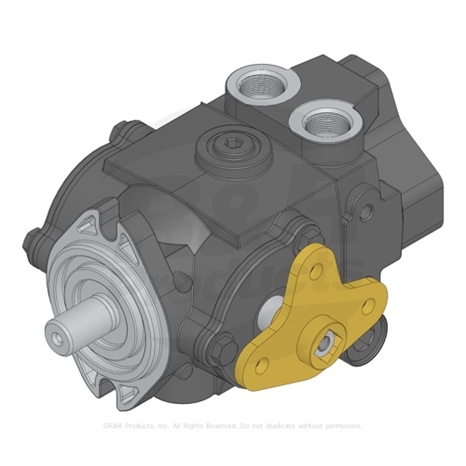

HYDROSTAT ASSY

R105-0494

3.088,04 €*

#54

O-RING

R353-949

4,01 €*

#55

CONNECTOR-HOSE

R354-78

65,32 €*

#56

BOLT - 3/8-16 X 1 1/4 SOCKET HD CAP

R3274-1

7,94 €*

#58

O-RING

R237-79

2,24 €*

#59

O-RING

R237-22

0,98 €*

#60

FITTING - HYD

R340-18

34,27 €*

#61

O-RING

R237-80

2,73 €*

#62

NO 10 MALE ORFS X NO 10 MALE ORB

R340-17

38,31 €*

#63

Bolzen - 3/8-16 X 3/4

R400258

1,39 €*

#64

CLAMP

R2412-41

11,07 €*

#65

CLAMP - HOSE .75-1.5

R2412-34

2,17 €*

#66

Schraube 3/8-16 X 1 1/4"

R400264

1,32 €*

#67

WASHER - HARDENED

R100-4852

7,27 €*

#68

Bolzen HD 3/8-16 X 1 GR5 YZ

R323-6

0,93 €*

#68

Bolt - hex hd 3/8-16 x 7/8

R400260

2,02 €*

#69

Auspuff

R108-6539

319,73 €*

#70

Klammer für Auspuff

R2412-37

5,55 €*

#71

FITTING - HYD - 90 DEG

R340-139

102,60 €*

#74

SCREW - SPACER

R106-4616

23,69 €*

#75

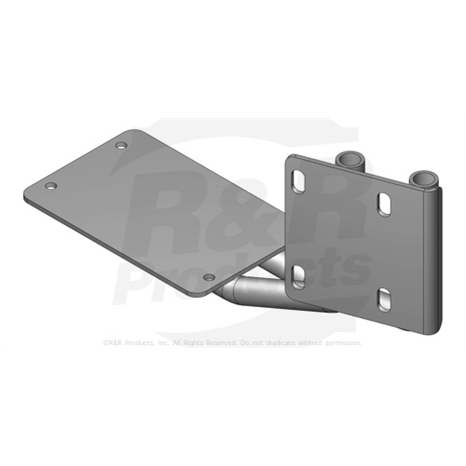

MOUNT-MUFFLER

R112-9196-03

364,45 €*

#76

NUT-LOCK, CONE

R32152-2

2,54 €*

#77

Unterlegescheibe 5/16" SA

R453009

0,38 €*

#77

Scheibe

R87-8640

1,61 €*

#78

CLAMP - SPRING - HOSE 1/4

R2412-98

1,26 €*

#79

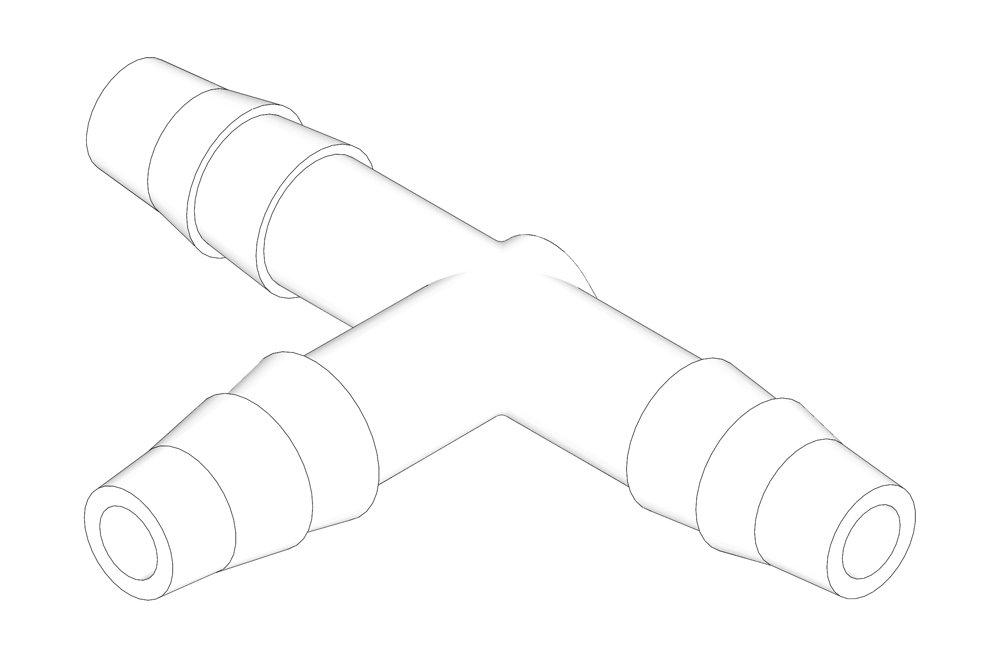

CONNECTOR - PLASTIC TEE - 1/4 ID HOSE

R151272

5,26 €*

#80

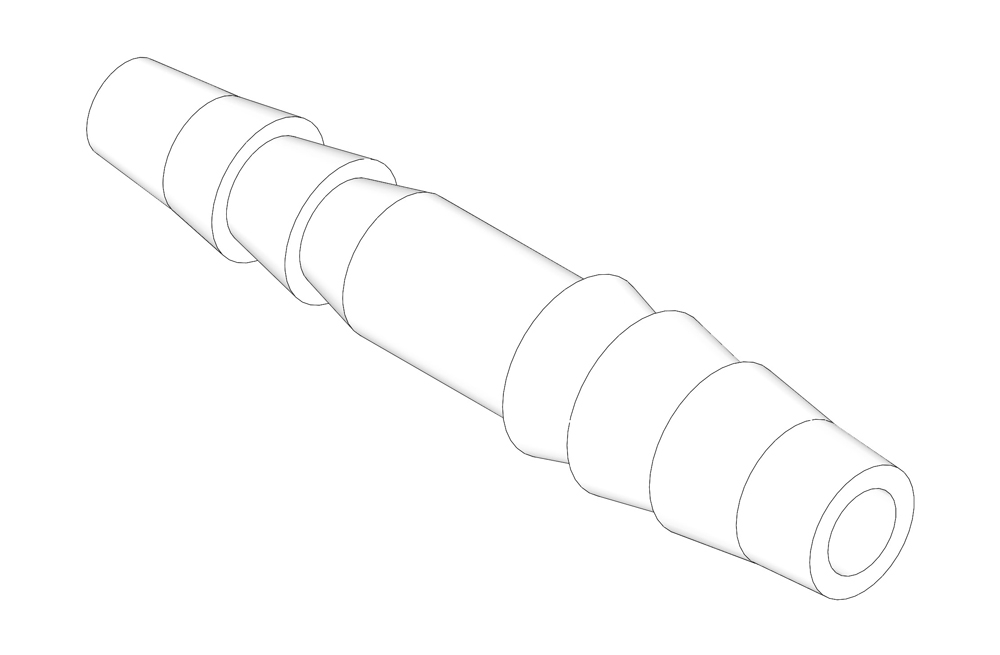

CONNECTOR - PLASTIC

R151271

4,90 €*

#82

BRACKET - MUFFLER

R83-1630-03

182,35 €*
